VEVOR Propane Melting Furnace 2/4/5/6/10 KG Metal Foundry Furnace Kit w/ Graphite Crucible & Tongs

VEVOR Propane Melting Furnace 2/4/5/6/10 KG Metal Foundry Furnace Kit w/ Graphite Crucible & Tongs

$166.99 USD
$166.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

SPECIFICATIONS



Brand: VEVOR

Furnace Body Construction: Cold Rolled Plate

Nozzle: SS-304

Featured Refinements:: Gas Forge

Capacity for Copper: 4.41 lbs / 2 kg - 22.05 lbs / 10 kg

Adjustable Propane Regulator: 0-350 psi

Furnace Floor: 0.79 in / 20 mm Thicken Firebrick

Melting Time: 10 min

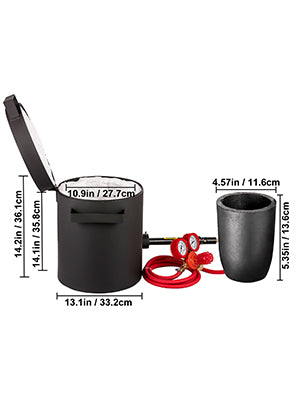

Furnace Outer Dimension: 9.17 x 9.88 in - 13.9 x 14.6 in

Crucible Size: 3.64 x 4.45 in - 5.8 x 7.2 in

Temperature: Up to 1350℃ / 2462℉(DE Type), 1450℃ / 2642℉(US Type)

Product Description

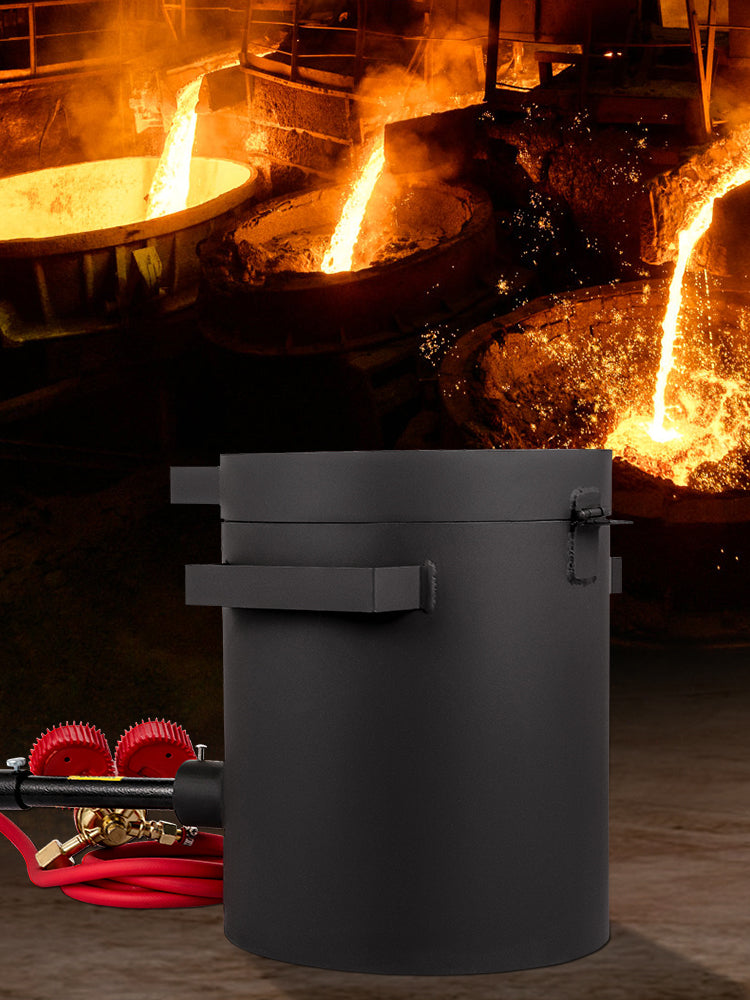

Propane Melting Furnace
Multifunctional & Outstanding Heat Insulation & High Security
The 2/4/5/6/10 kg propane melting furnace with a compact design is ideal for professional use. With its powerful heat performance, it can meet different requirements of the industry and the workshop. It is suitable for processing precious metals such as gold, silver, and copper.

  • Trash to Treasure

  • High Caliber Clay Graphite Crucible

  • Powerful Heat Performance

  • Complete Melting Kit

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Note:
The Propane Melting Furnace US warehouse is US Type,
European warehouse is DE Type,
Untied Kingdom warehouse is UK Type.

Key Features

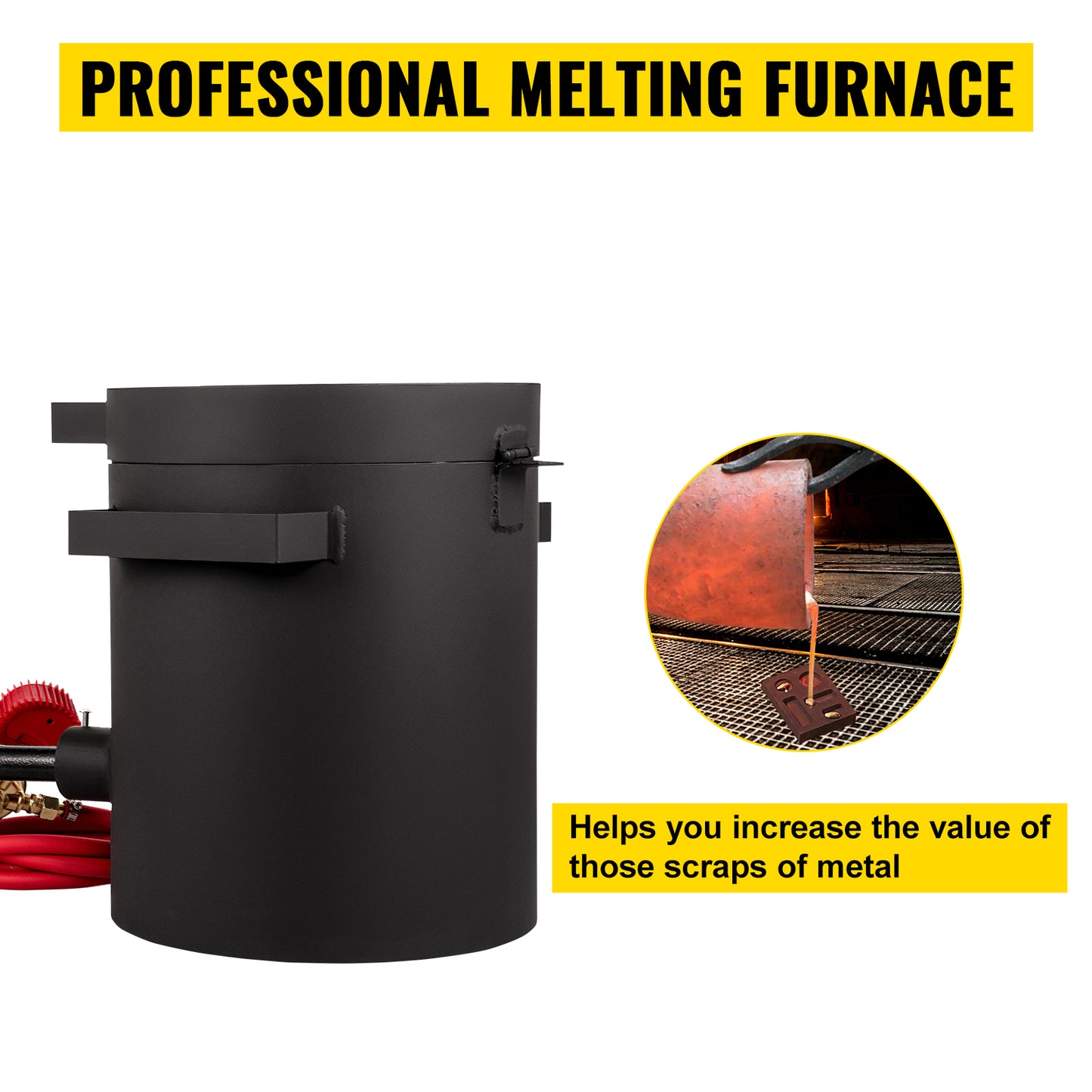

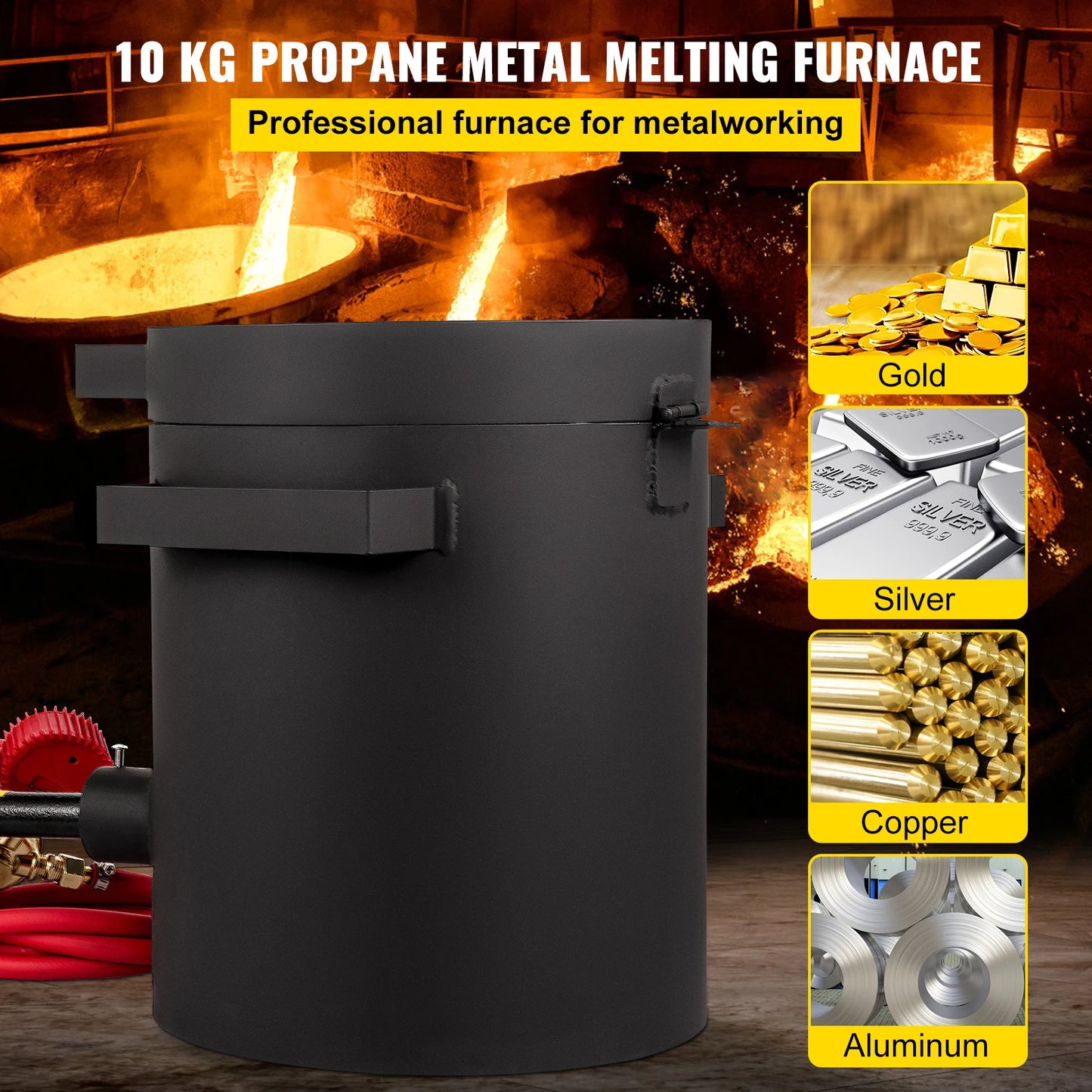

Professional Melting Furnace
With this metal foundry furnace kit, you can recover precious metals, such as gold, sterling silver, pure copper, and aluminum. In addition, it will help you convert those scraps of metal into beautiful shapes, increase their value.

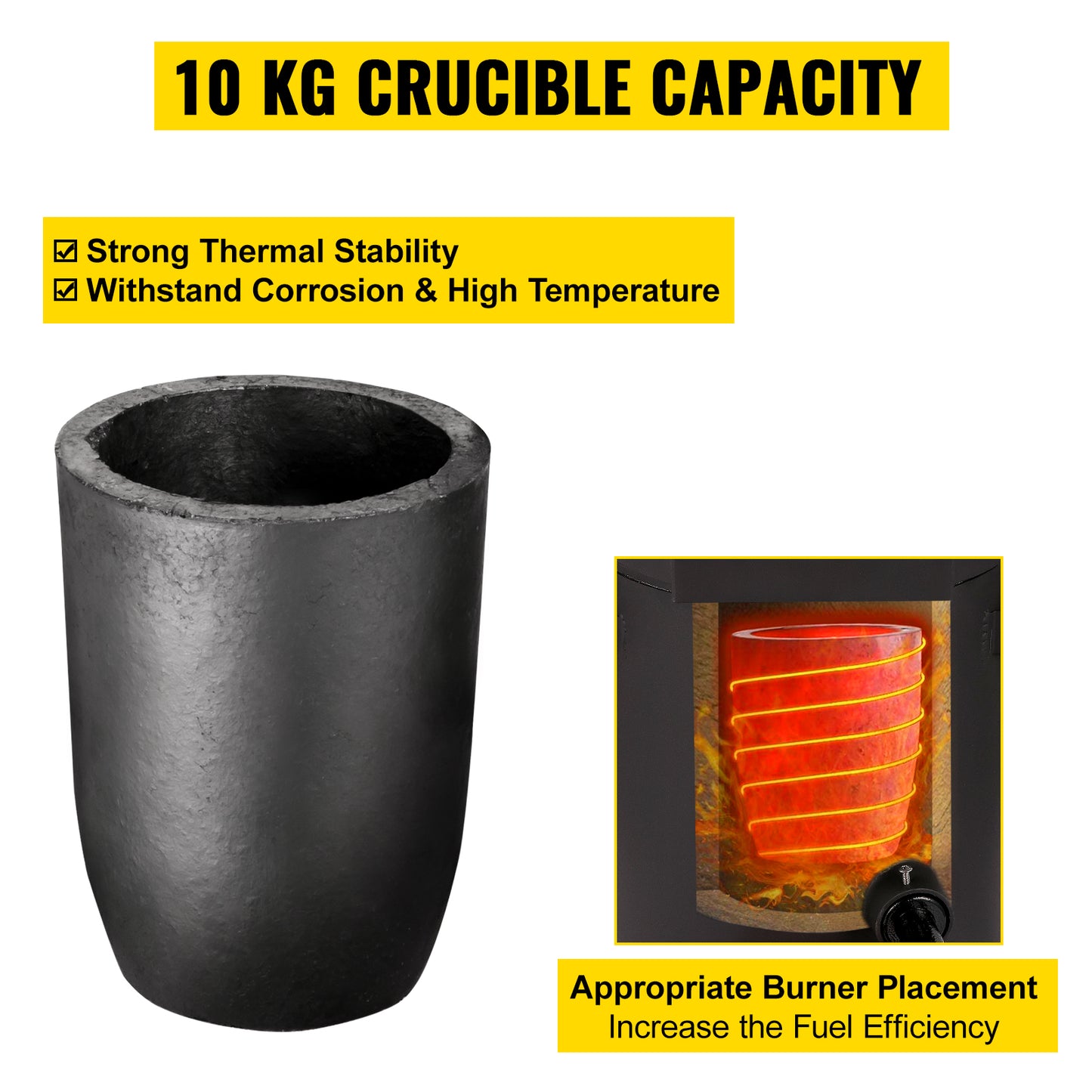

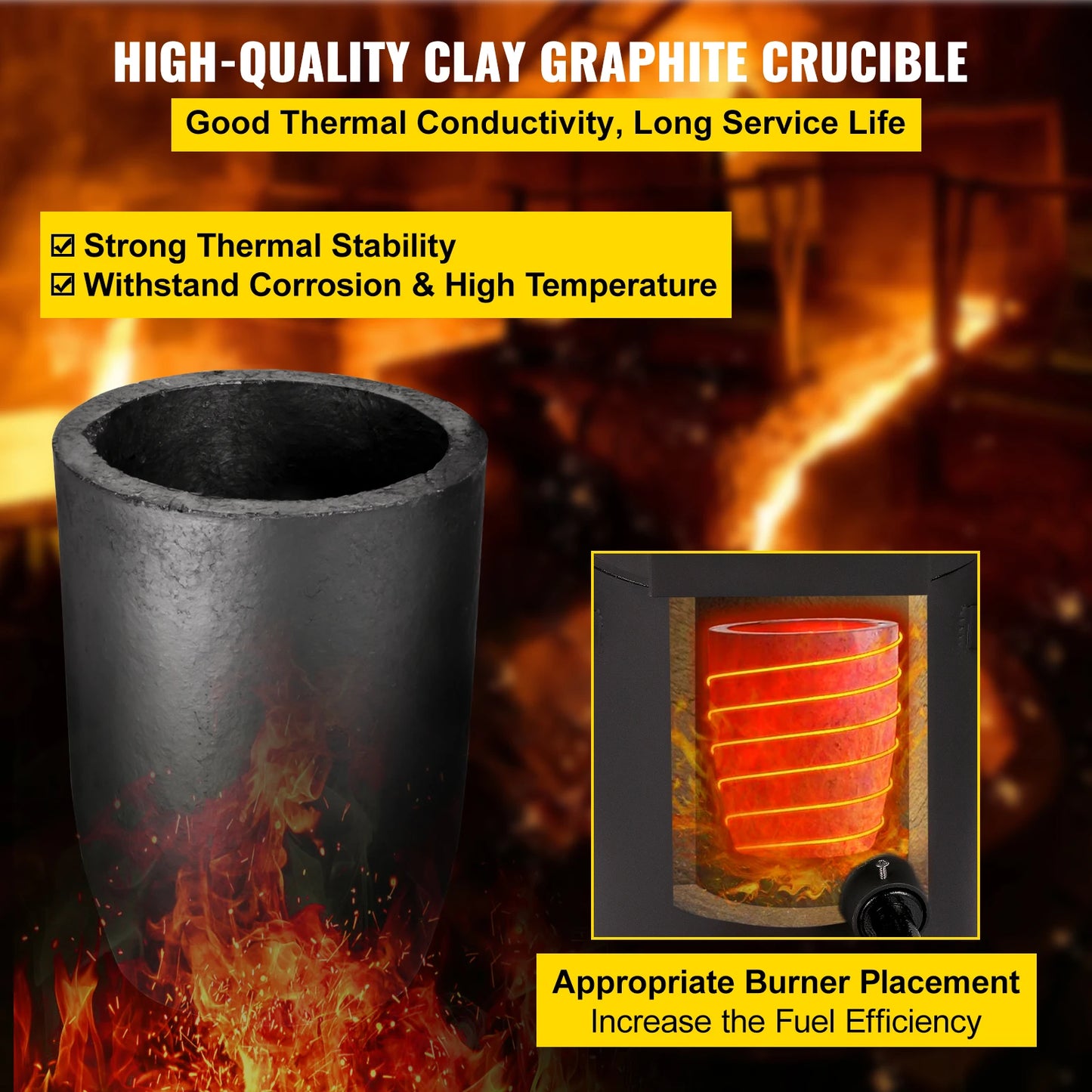

2/4/5/6/10 KG Crucible Capacity
Our high-quality 2/4/5/6/10 KG graphite crucible has strong thermal stability. It is designed to withstand corrosion and high temperature. Also, the appropriate burner placement increases fuel efficiency and enhances heat transfer.

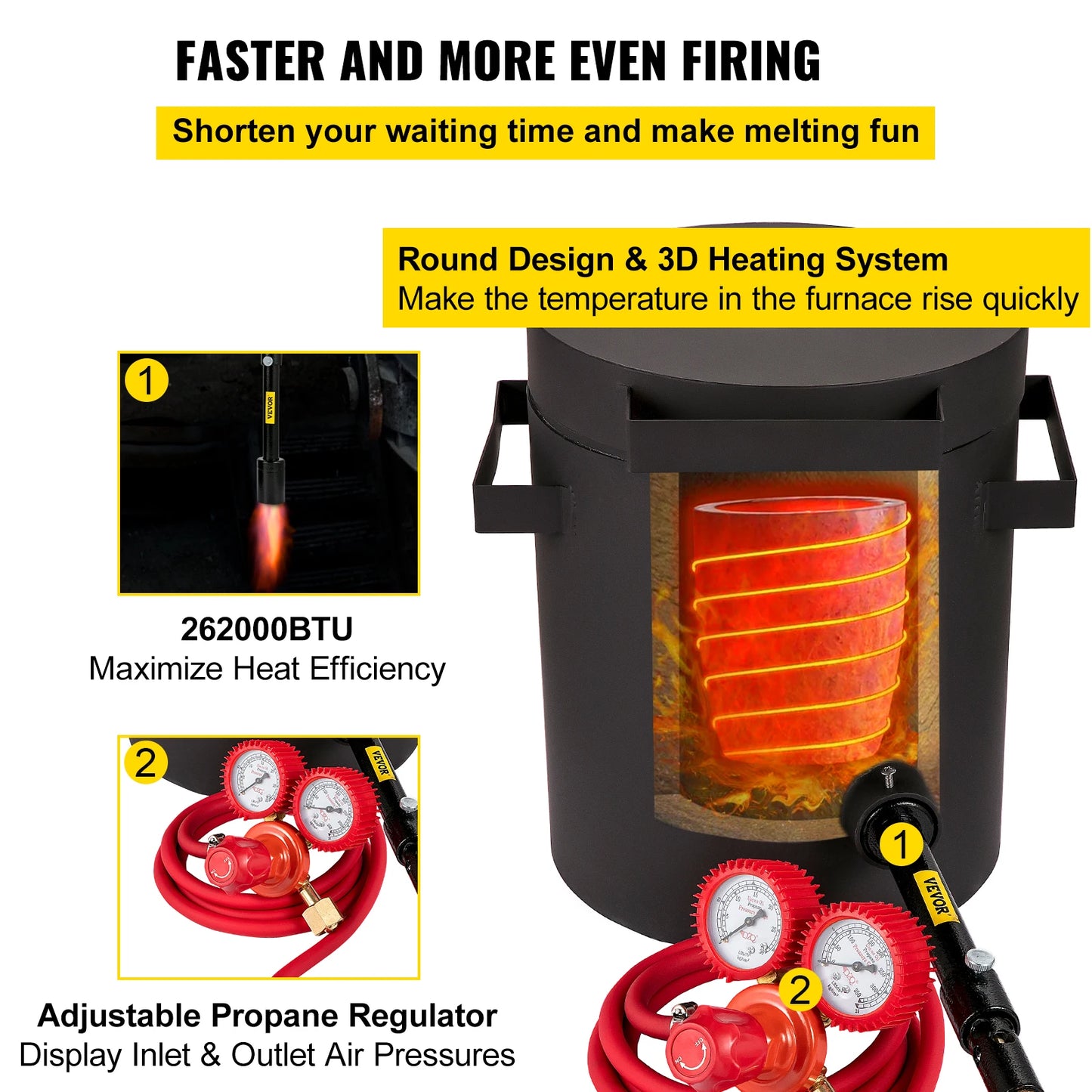

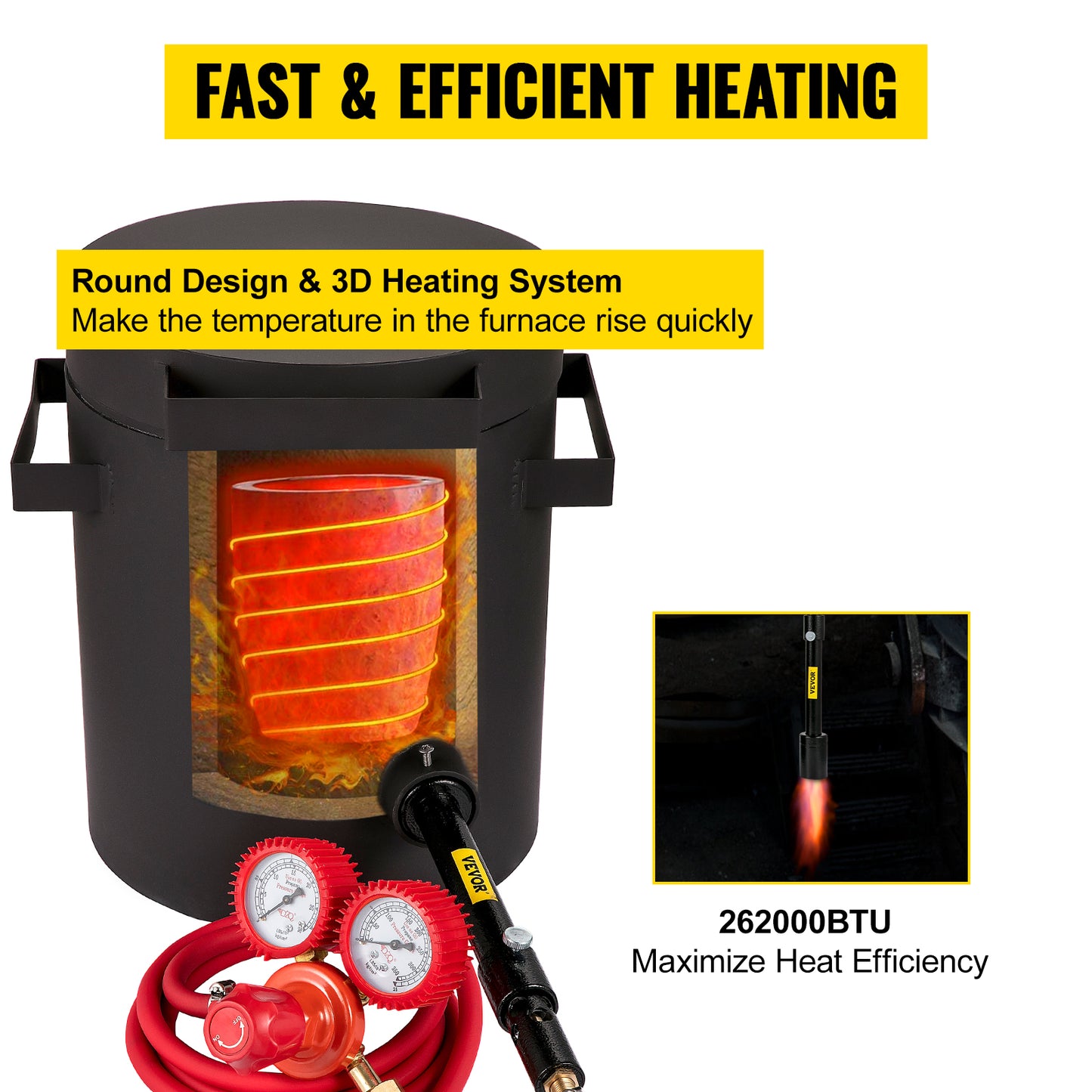

Fast & Efficient Heating
The single burner with 76.8kW/h power and an adjustable propane regulator will improve the furnace's heating efficiency. Also, this propane furnace for melting metal adopts a round design and a 3D heating system. As a result, it will effectively shorten your waiting time.

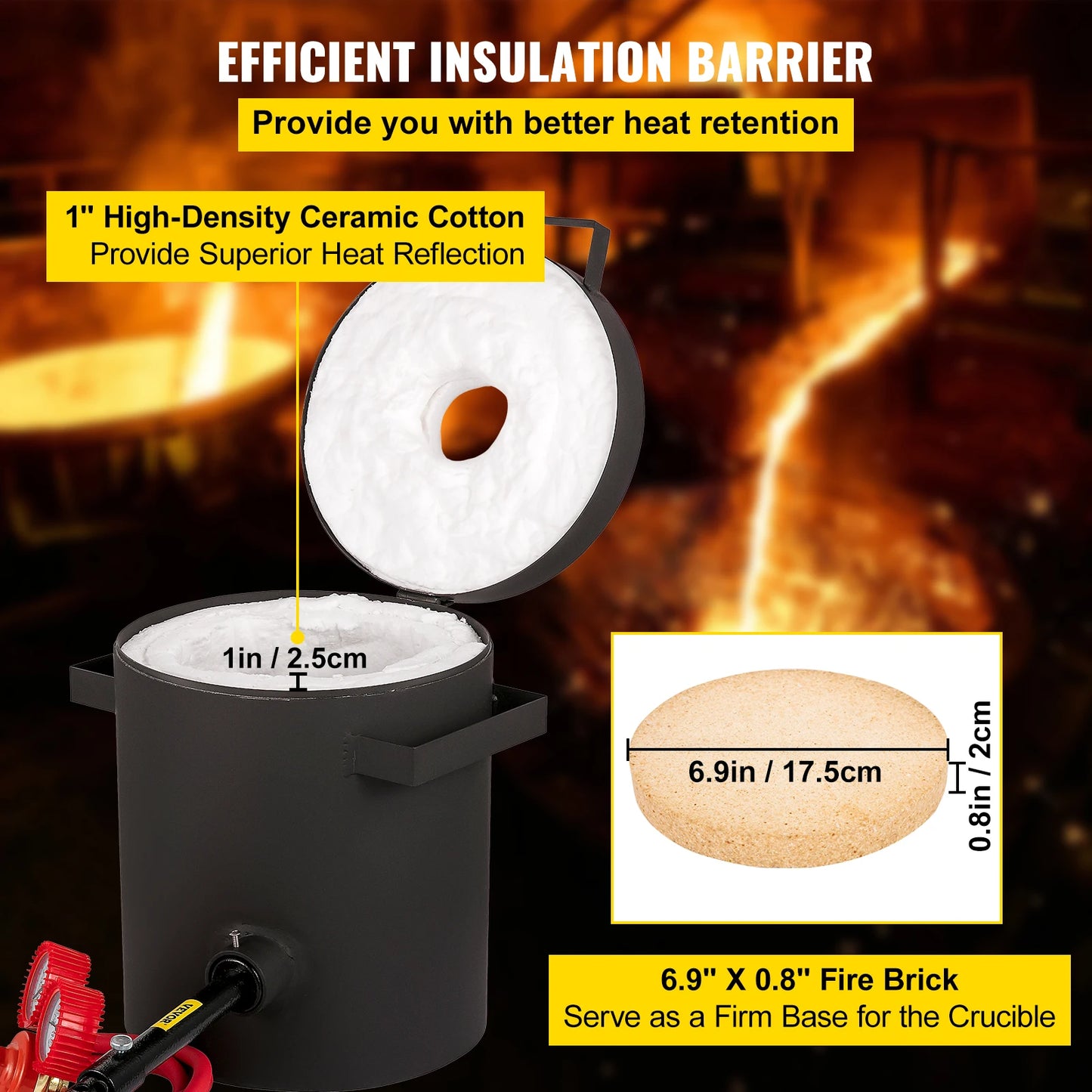

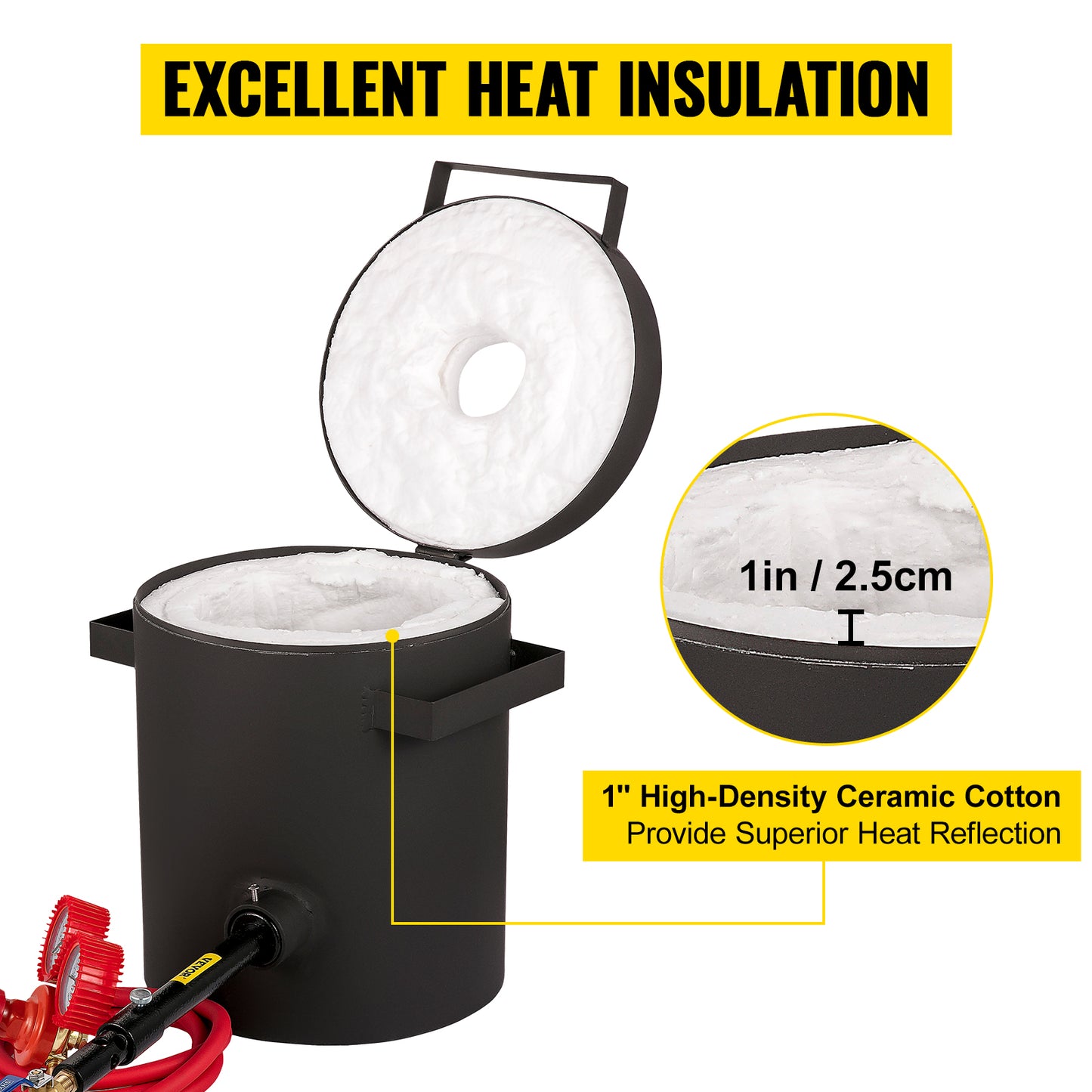

Excellent Heat Insulation
The heating zone of the melting furnace is fully insulated with 1 inch thick refractory ceramic fiber. And the cover is coated with our special refractory. It can hold 1350℃ / 2462℉(DE Type)/1450℃ / 2642℉(US Type), which increases the furnace's fuel efficiency up to 40% and refractory life up to 50%.

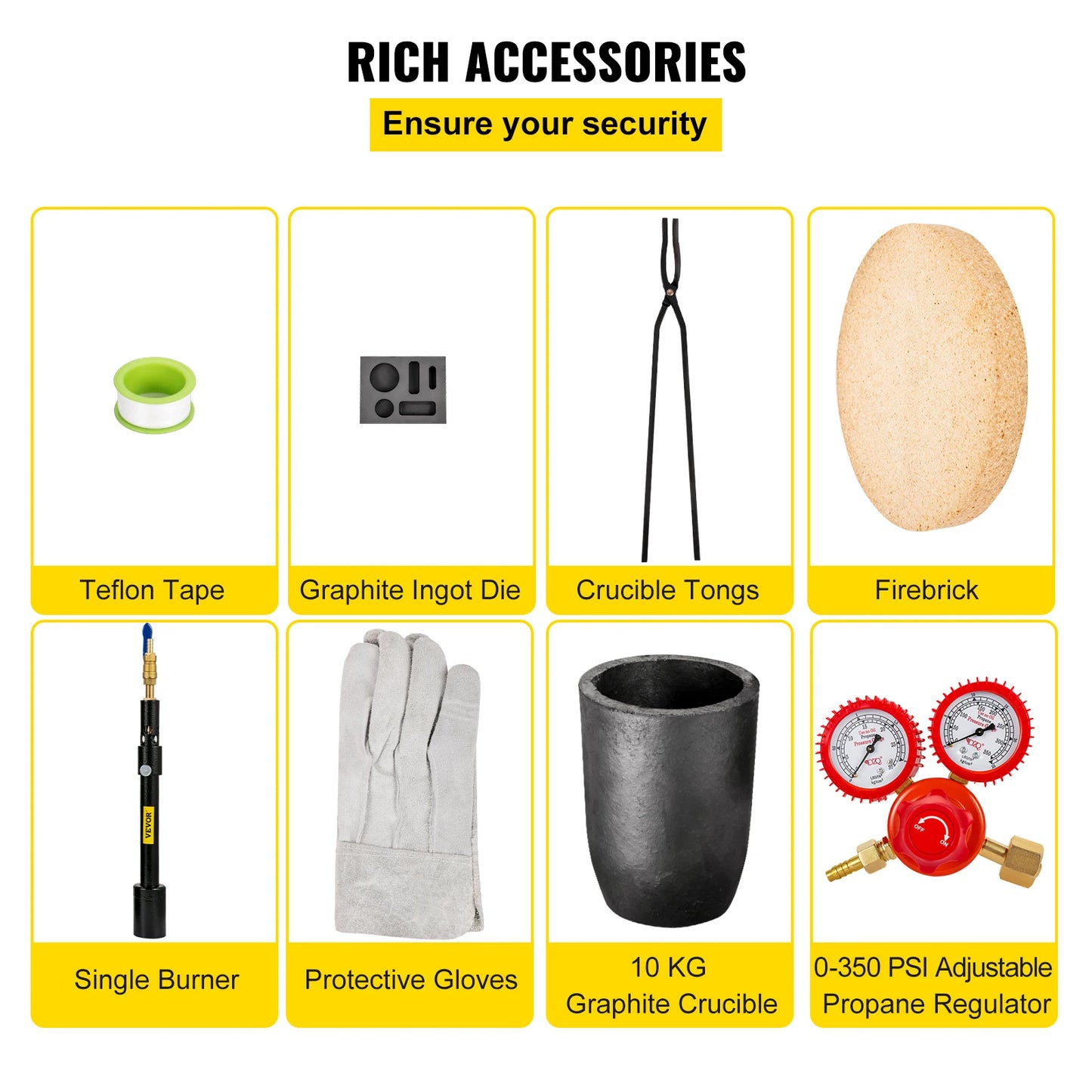

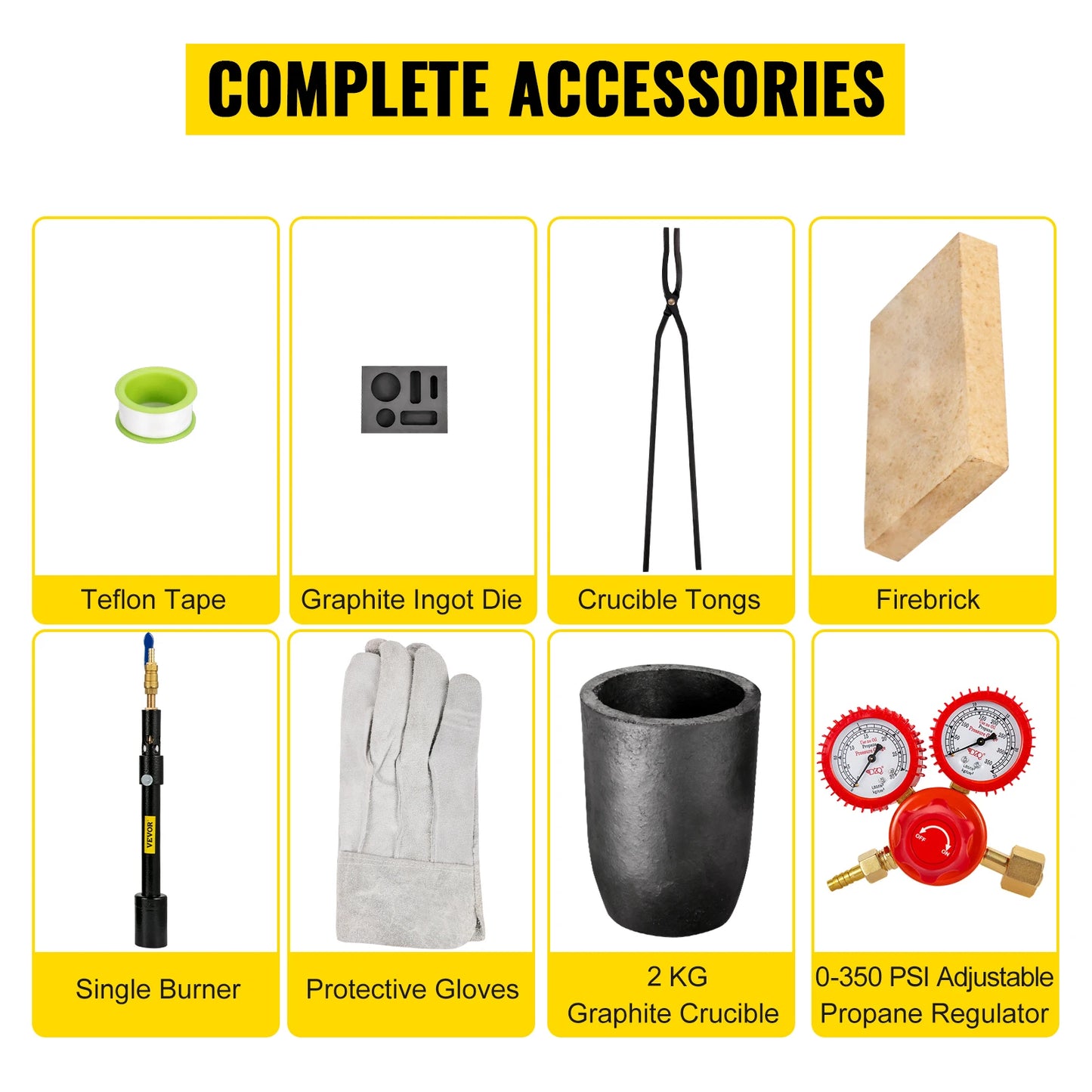

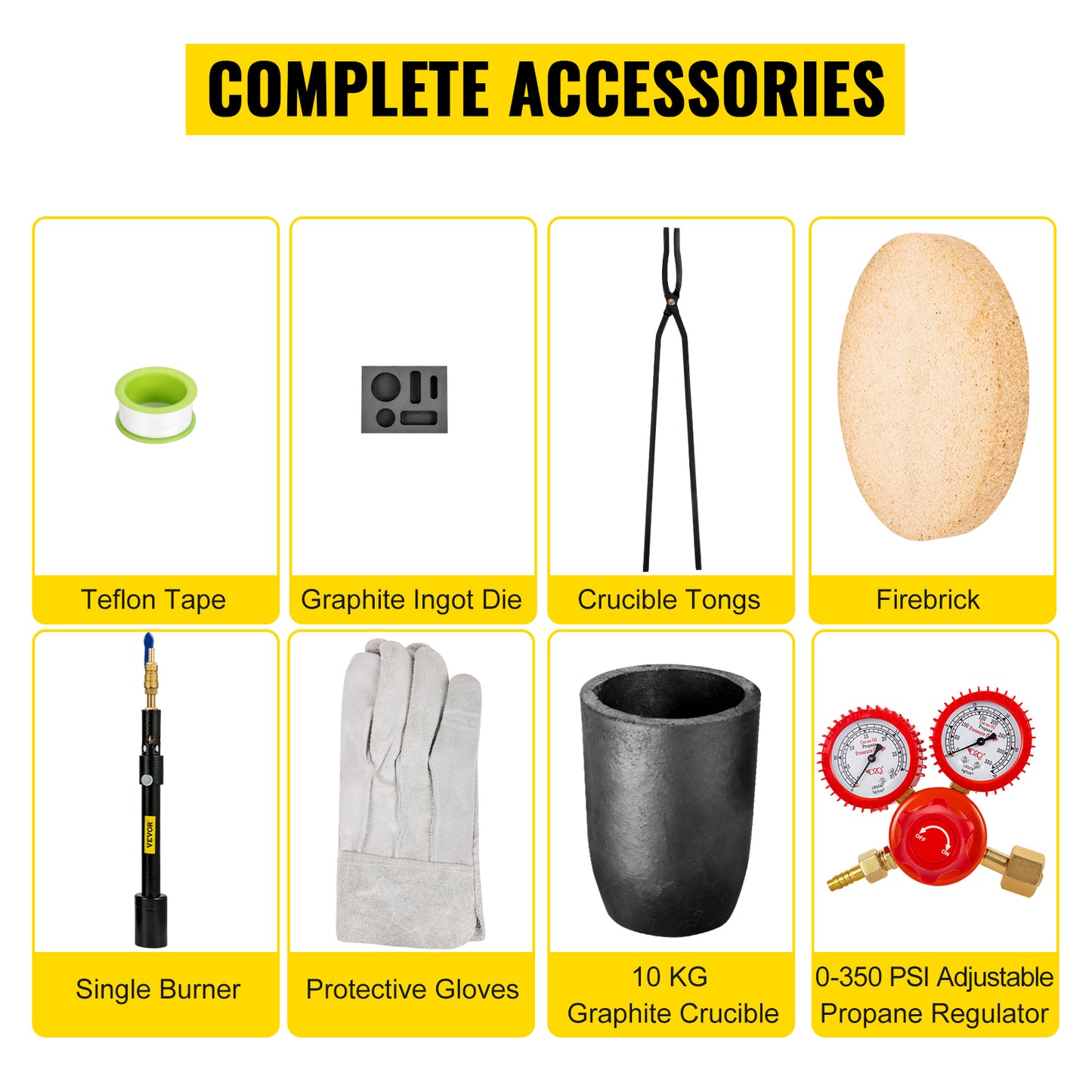

Complete Accessories
This metal melting furnace kit includes a propane furnace, burner, 2/4/5/6/10 kg crucible, graphite ingot die, 0-350 psi adjustable propane regulator, crucible tongs, firebrick, protective gloves, 8.2 feet trachea, and Teflon tape. Everything you need is included to ensure your security.

Wide Application
The propane metal melting furnace is ideal for industrial and workshop professional use. It's also a perfect choice for home melting. Any metal with melting points below 1350℃(DE Type)/1450℃(US Type) will be melted easily, such as copper, gold, silver, copper, aluminum, zinc, tin, etc.

10 KG Propane Melting Furnace

  • Model: LYBBWYZ10KG

  • Furnace Body Construction: Cold Rolled Plate

  • Nozzle: SS-304

  • Capacity for Copper: 22.05 lbs / 10 kg

  • Adjustable Propane Regulator: 0-350 psi

  • Furnace Floor: 0.79 in / 20 mm Firebrick

  • Melting Time: 10 min

  • Temperature: Up to 1350℃ / 2462℉(DE Type), 1450℃ / 2642℉(US Type)

  • Net Weight: 30 lbs / 13.6 kg

  • Furnace Internal Dimension: 11.7 x 14.5 in / 297 x 368 mm

  • Furnace Outer Dimension: 13.9 x 14.6 in / 353 x 371 mm

  • Crucible Size: 5.8 x 7.2 in / 147 x 183 mm

  • Package Dimensions: 16.14 x 15.94 x 17.72 in / 410 x 405 x 450 mm


Package Content

  • 1 x Melting Furnace

  • 1 x 10 KG Crucible

  • 1 x Graphite Ingot Die

  • 1 x Burner

  • 1 x Trachea

  • 1 x Tongs

  • 1 x Protective Gloves

  • 1 x Regulator

  • 1 x Firebrick

  • 1 x Teflon Tape

  • 1 x Instruction Manual


6 KG Propane Melting Furnace

  • Model: LYBBWYZ06KG

  • Furnace Body Construction: Cold Rolled Plate

  • Nozzle: SS-304

  • Capacity for Copper: 13.23 lbs / 6 kg

  • Adjustable Propane Regulator: 0-350 psi

  • Furnace Floor: 0.79 in / 20 mm Thicken Firebrick

  • Melting Time: 10 min

  • Temperature: Up to 1350℃ / 2462℉(DE Type), 1450℃ / 2642℉(US Type)

  • Net Weight: 27.6 lbs / 12.5 kg

  • Furnace Internal Dimension: 10.9 x 14.1 in / 277 x 358 mm

  • Furnace Outer Dimension: 13.1 x 14.2 in / 332 x 361 mm

  • Crucible Size: 4.88 x 6.22 in / 124 x 158 mm

  • Package Dimensions: 16.14 x 15.94 x 17.72 in / 410 x 405 x 450 mm


Package Content

  • 1 x Melting Furnace

  • 1 x 6 KG Crucible

  • 1 x Graphite Ingot Die

  • 1 x Burner

  • 1 x Trachea

  • 1 x Tongs

  • 1 x Protective Gloves

  • 1 x Regulator

  • 1 x Firebrick

  • 1 x Teflon Tape

  • 1 x Instruction Manual


5 KG Propane Melting Furnace

  • Model: LYBBWYZ05KG

  • Furnace Body Construction: Cold Rolled Plate

  • Nozzle: SS-304

  • Capacity for Copper: 11 lbs / 5 kg

  • Adjustable Propane Regulator: 0-350 psi

  • Furnace Floor: 0.79 in / 20 mm Thicken Firebrick

  • Melting Time: 10 min

  • Temperature: Up to 1350℃ / 2462℉(DE Type), 1450℃ / 2642℉(US Type)

  • Net Weight: 30 lbs / 13.6 kg

  • Furnace Internal Dimension: 10.9 x 14.1 in / 277 x 358 mm

  • Furnace Outer Dimension: 13.1 x 14.2 in / 332 x 361 mm

  • Crucible Size: 4.8 x 5.6 in / 122 x 142 mm

  • Package Dimensions: 16.14 x 15.94 x 17.72 in / 410 x 405 x 450 mm


Package Content

  • 1 x Melting Furnace

  • 1 x 5 KG Crucible

  • 1 x Graphite Ingot Die

  • 1 x Burner

  • 1 x Trachea

  • 1 x Tongs

  • 1 x Protective Gloves

  • 1 x Regulator

  • 1 x Firebrick

  • 1 x Teflon Tape

  • 1 x Instruction Manual


4 KG Propane Melting Furnace

  • Model: LYBBWYZ04KG

  • Furnace Body Construction: Cold Rolled Plate

  • Nozzle: SS-304

  • Capacity for Copper: 8.82 lbs / 4 kg

  • Adjustable Propane Regulator: 0-350 psi

  • Furnace Floor: 0.79 in / 20 mm Thicken Firebrick

  • Melting Time: 10 min

  • Temperature: Up to 1350℃ / 2462℉(DE Type), 1450℃ / 2642℉(US Type)

  • Net Weight: 26.9 lbs / 12.2 kg

  • Furnace Internal Dimension: 10.9 x 14.1 in / 277 x 358 mm

  • Furnace Outer Dimension: 13.1 x 14.2 in / 332 x 361 mm

  • Crucible Size: 4.57 x 5.35 in / 116 x 136 mm

  • Package Dimensions: 16.14 x 15.94 x 17.72 in / 410 x 405 x 450 mm


Package Content

  • 1 x Melting Furnace

  • 1 x 4 KG Crucible

  • 1 x Graphite Ingot Die

  • 1 x Burner

  • 1 x Trachea

  • 1 x Tongs

  • 1 x Protective Gloves

  • 1 x Regulator

  • 1 x Firebrick

  • 1 x Teflon Tape

  • 1 x Instruction Manual


2 KG Propane Melting Furnace

  • Model: LYBBWYZ02KG

  • Furnace Body Construction: Cold Rolled Plate

  • Nozzle: SS-304

  • Capacity for Copper: 4.41 lbs / 2 kg

  • Adjustable Propane Regulator: 0-350 psi

  • Furnace Floor: 0.79 in / 20 mm Thicken Firebrick

  • Melting Time: 10 min

  • Temperature: Up to 1350℃ / 2462℉(DE Type), 1450℃ / 2642℉(US Type)

  • Net Weight: 13.9 lbs / 6.3 kg

  • Furnace Internal Dimension: 6.97 x 9.76 in / 177 x 248 mm

  • Furnace Outer Dimension: 9.17 x 9.88 in / 233 x 251 mm

  • Crucible Size: 3.64 x 4.45 in / 88 x 113 mm

  • Package Dimensions: 12.2 x 12.2 x 18.9 in / 310 x 310 x 480 mm


Package Content

  • 1 x Melting Furnace

  • 1 x 2 KG Crucible

  • 1 x Graphite Ingot Die

  • 1 x Burner

  • 1 x Trachea

  • 1 x Tongs

  • 1 x Protective Gloves

  • 1 x Regulator

  • 1 x Firebrick

  • 1 x Teflon Tape

  • 1 x Instruction Manual

Features & Details

  • Trash to Treasure: Home smelting is becoming more and more common. With our 2/4/5/6/10 KG propane melting furnace, you are able to convert the scraps of copper and rotten iron into beautiful artworks. It will meet your different needs and indulge your passion for metal melting.

  • High Caliber Clay Graphite Crucible: Premium clay graphite crucible is made of high-density fine-grain graphite. It has excellent thermal conductivity, high heat endurance, and high impact endurance. Also, the placement of the burner increases fuel efficiency.

  • Powerful Heat Performance: Our propane casting furnace is equipped with a 76.8kW/h power single burner and adjustable 0-350 psi regulator, maximizing the heat efficiency. What's more, the round design and 3D heating system will make the temperature rise quickly.

  • Complete Melting Kit: In this propane melting furnace kit, we provide everything you need: a propane furnace, burner, 2/4/5/6/10 kg crucible, graphite ingot die, 0-350 psi adjustable propane regulator, crucible tongs, firebrick, protective gloves, 8.2 feet trachea, and Teflon tape. It's perfect for everyone, even for the beginner.

  • Wide Application: Foundry furnace is widely used for DIY, jewelry processing factories, jewelry shops, gold panning, and other industries. It is an inevitable product for a metalsmith, jewelers, and refiners.
