SPECIFICATIONS

Brand Name: VEVOR



Hign-concerned Chemical: None

Material: Stainless Steel

Product Type: Wort Chillers

Material: 316L +99.9% Copper

Model: 60 Plates, 40 Plates, 30 Plates

Design Pressure(Max): 3.0 Mpa

Test Pressure:(Min): 4.5 Mpa

Type: Plates Heat Exchanger





Product Description

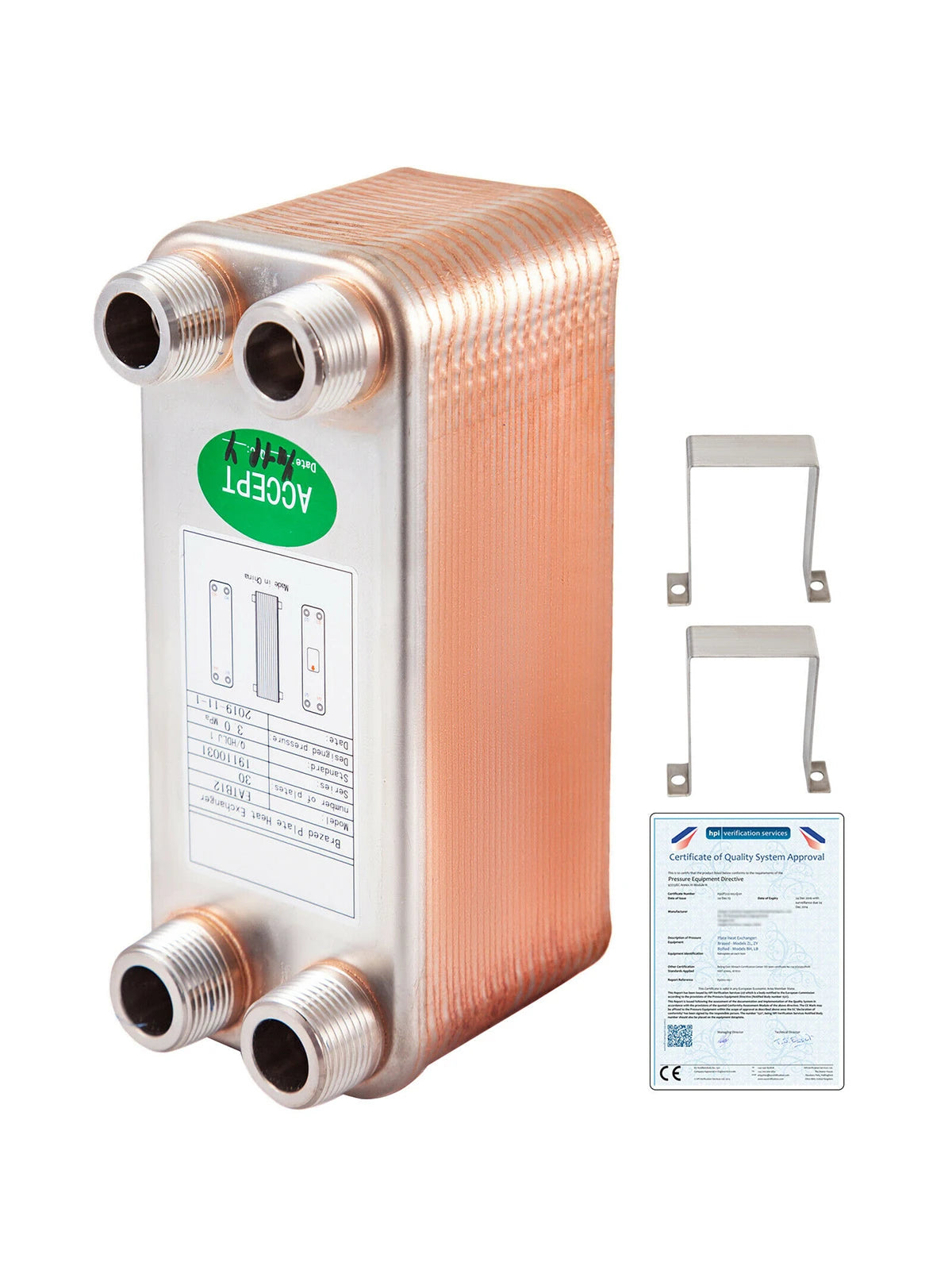

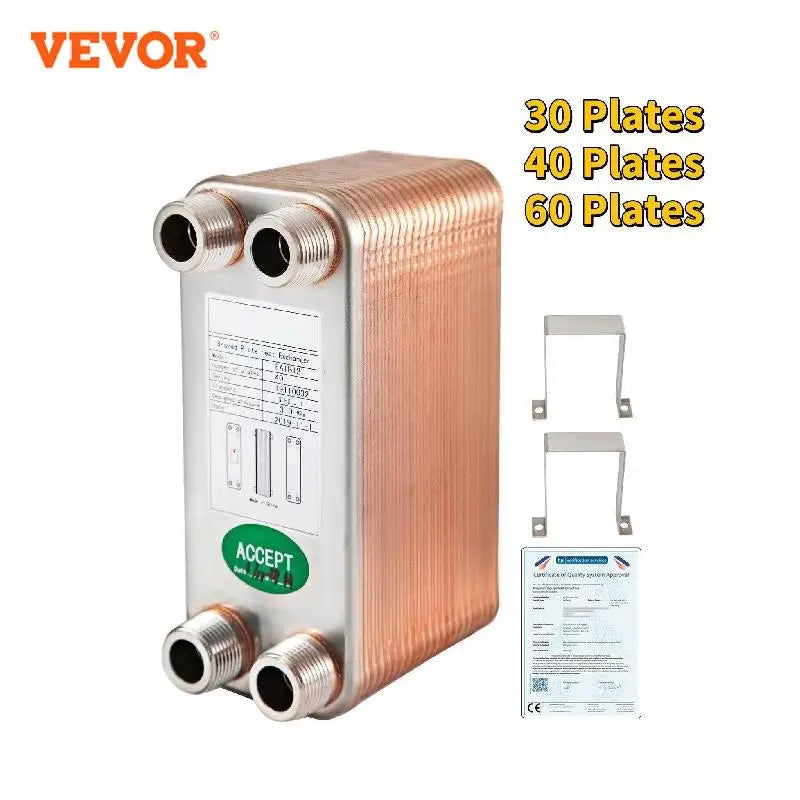

Brazed Plate Heat Exchanger

Our brand new heat exchanger features a compact & lightweight body, offering excellent thermal performance, and 316L stainless steel+99.9% copper material can ensure its long life, so it is perfect for Solar heating, Oil unit heat recovery Engine cooling, evaporation and condensing, etc.

• High Thermal Efficiency

• Energy Optimized

• Robust Construction

• Compact Design

Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated
employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly
low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million
plus members worldwide.

Why Choose VEVOR?

• Premium Tough Quality

• Incredibly Low Prices

• Fast & Secure Delivery

• 30-Day Free Returns

• 24/7 Attentive Service

Key Features

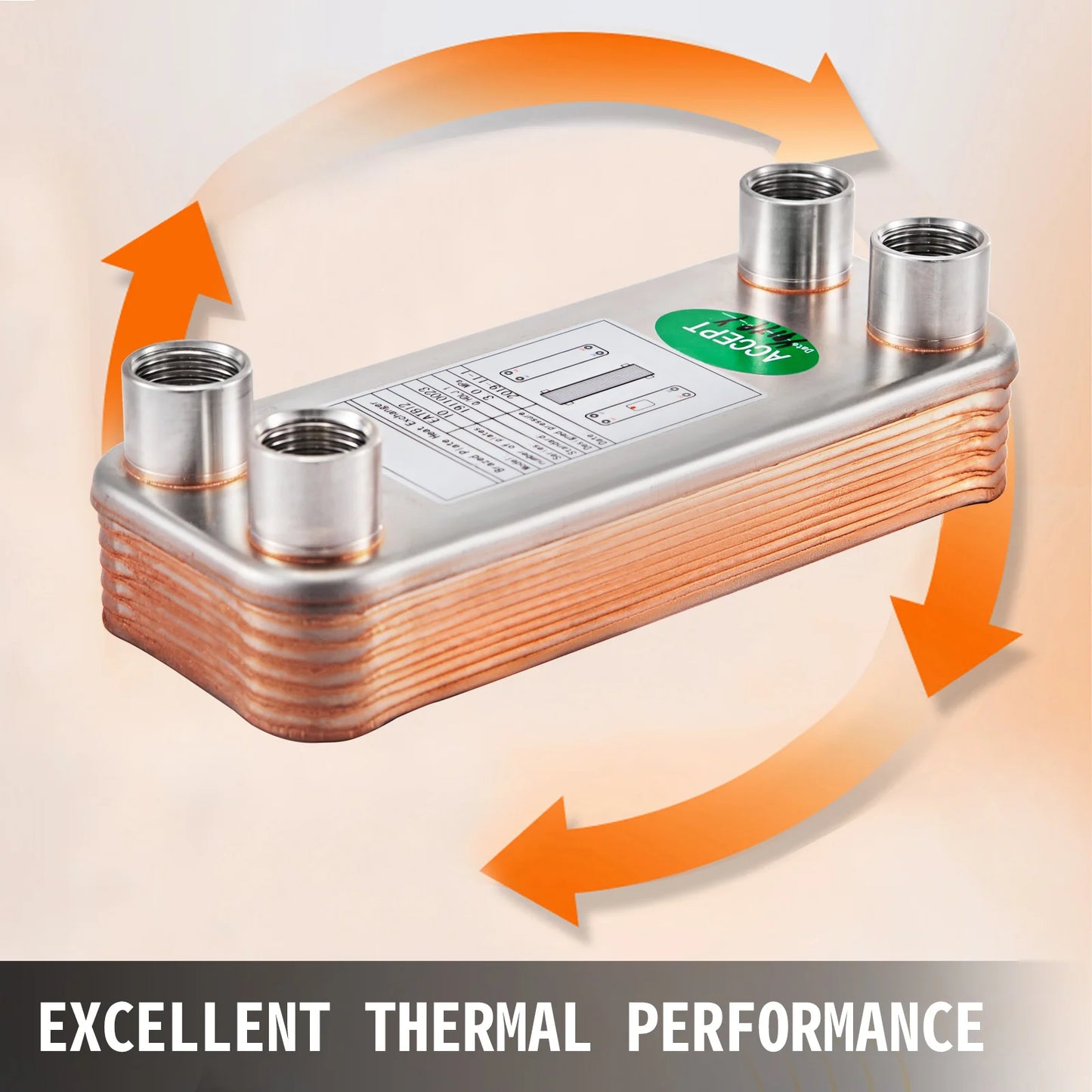

Excellent Thermal Performance

Extremely efficient herringbone construction for maximum heat transfer.

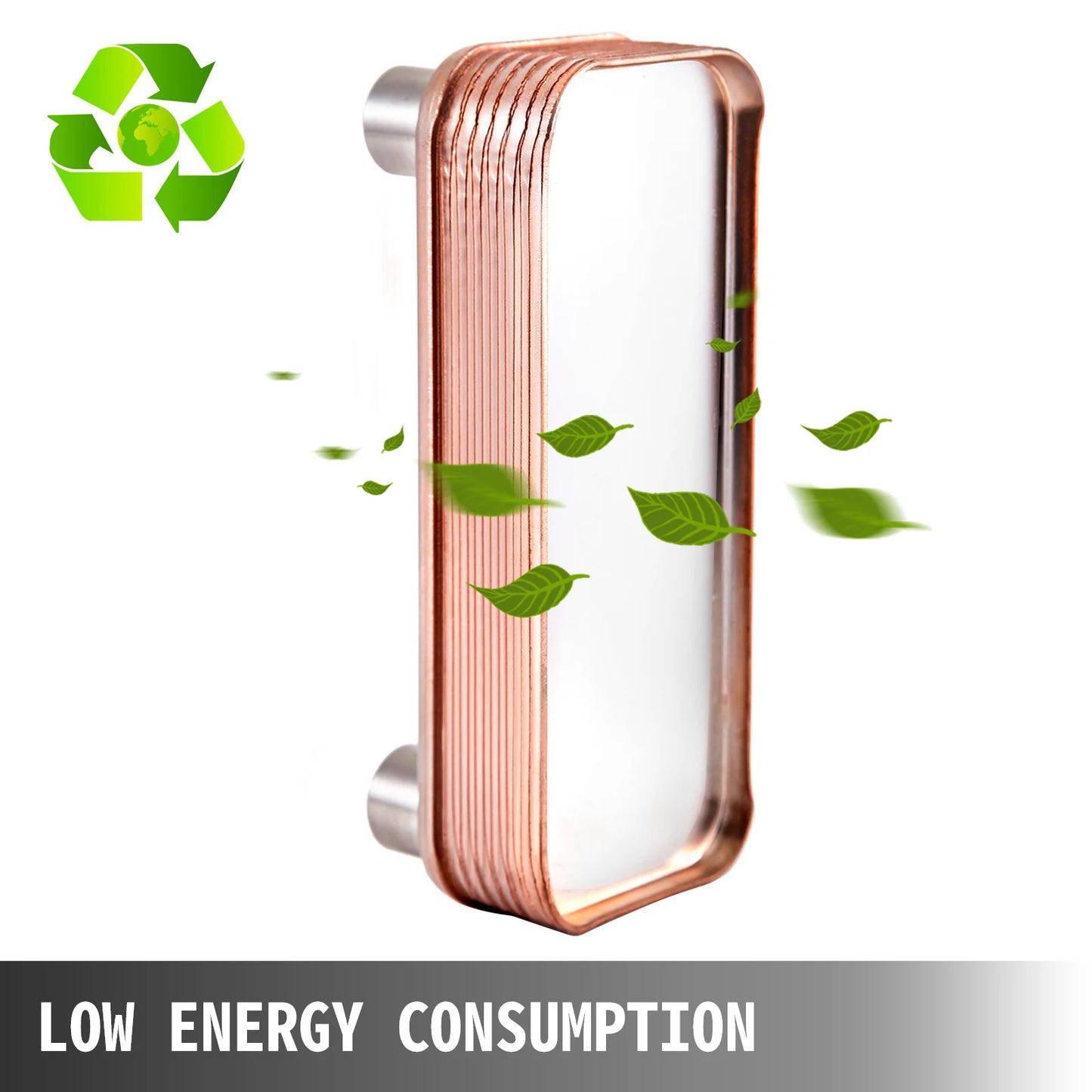

Low Energy Consumption

Low energy consumption due to the very low-pressure drop over the heat exchanger.

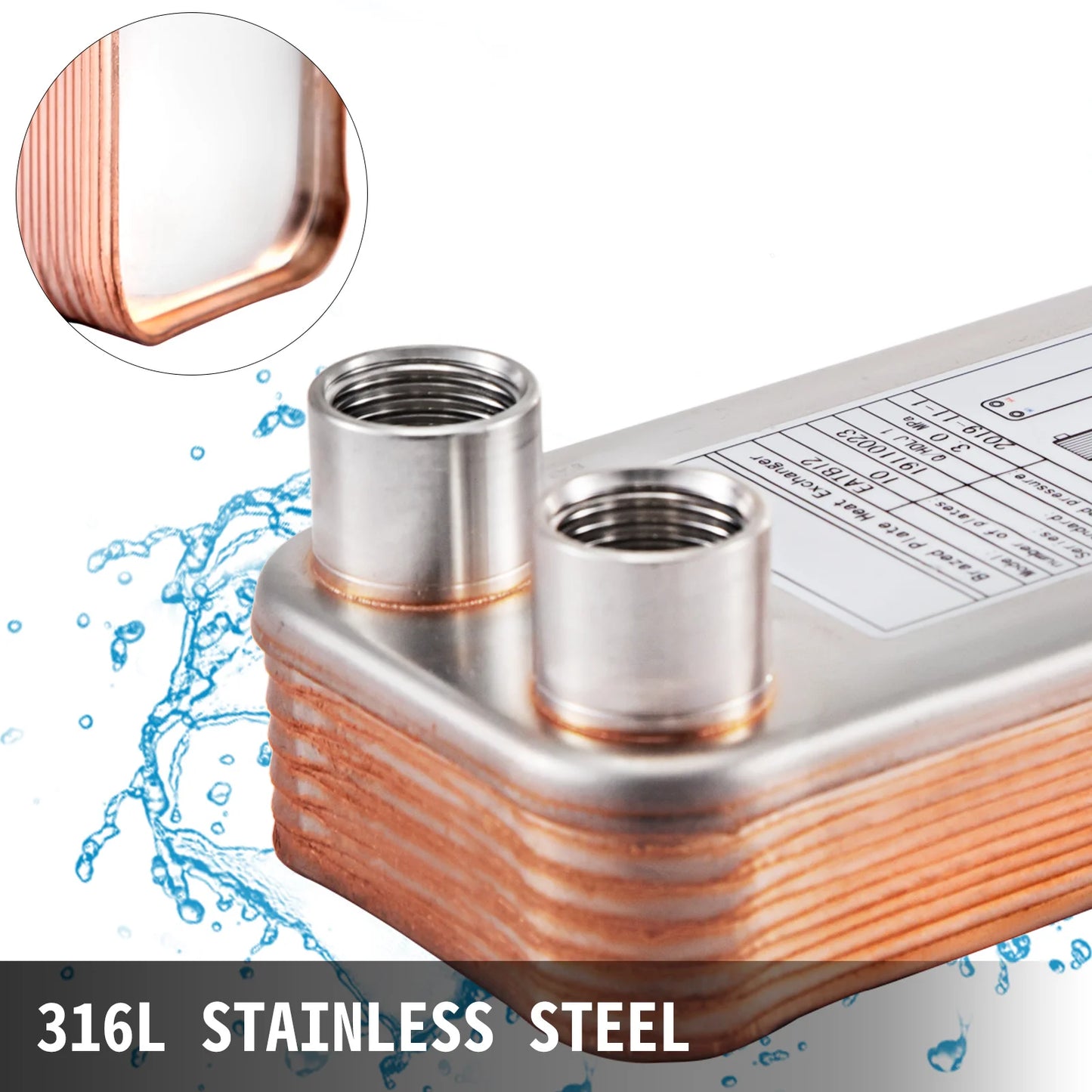

316L Stainless Steel

316L stainless steel applied is highly resistant to corrosion, reliable and long life.

Dedicated BSP FPT/MNPT Ports

Four Thickened 1/2" BSP FPT / MNPT ports for your easier installation.

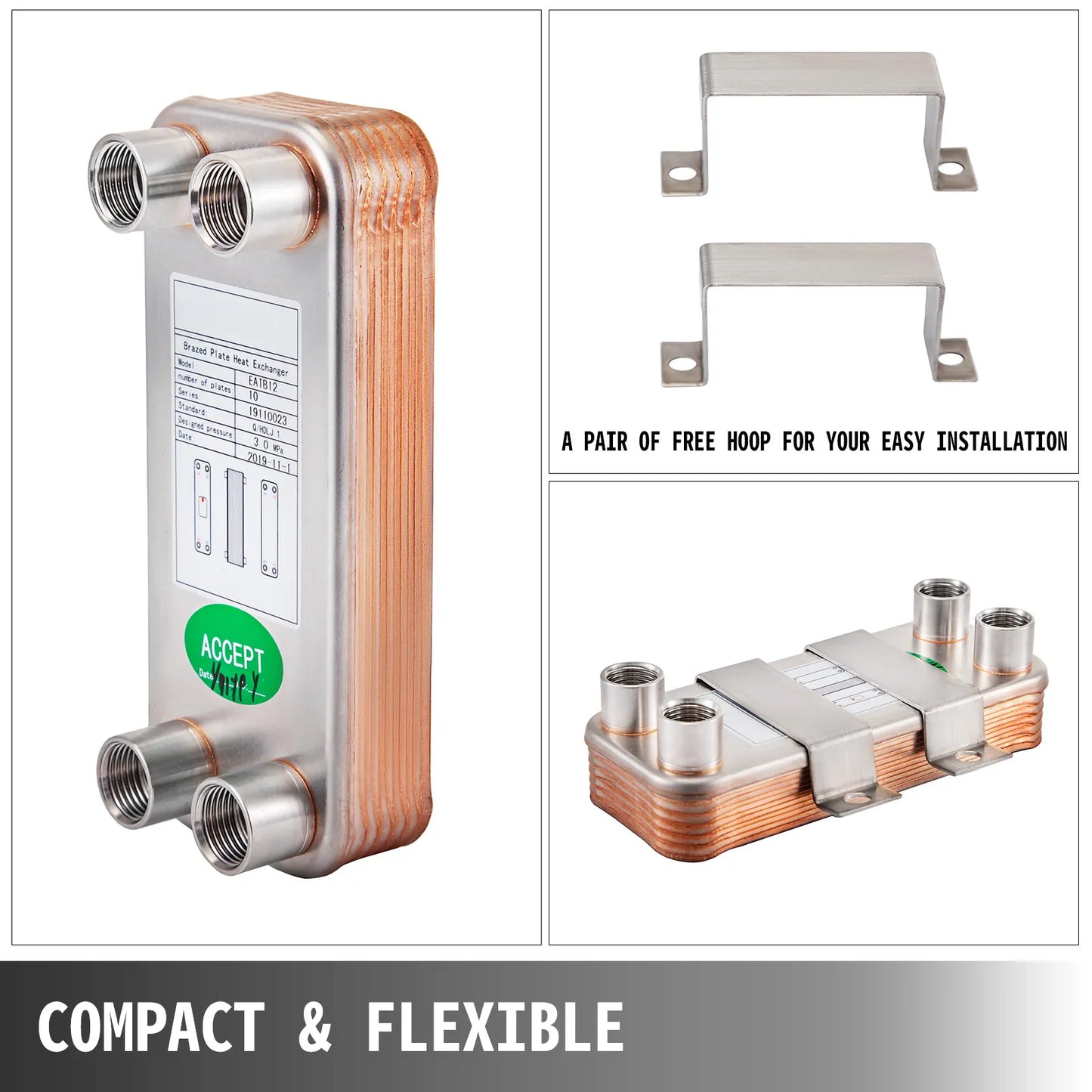

Compact & Flexible

The footprint can be as little as one-tenth that of a shell & tube heat exchanger, and its compact size means it also offers greater system design freedom.

Wide Application

The heat exchanger plate is ideal for outdoor wood furnaces/boilers, radiant floor heating projects, plumbing systems, snowmelt systems, swimming pools, domestic water applications, HVAC and refrigeration systems, solar heating, and other liquid to liquid heat transfer applications.

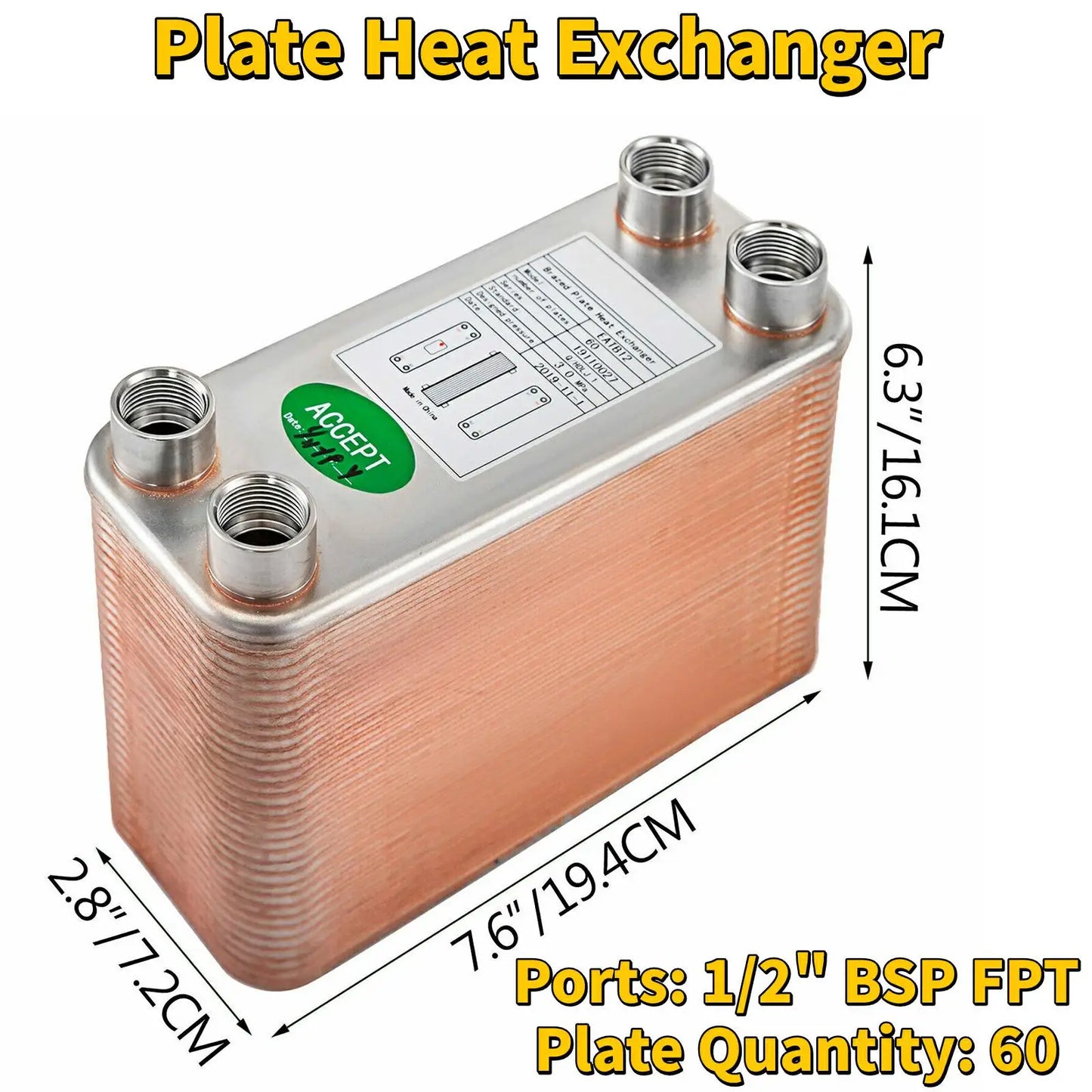

Brazed Plate Heat Exchanger 60 Plate

• Model: 60 Plates

• Material: 316L +99.9% Copper

• Ports: 1/2" BSP FPT

• Plate Quantity: 60

• Design Pressure(Max):3.0 Mpa

• Test Pressure:(Min):4.5 Mpa

• Design Temp.(℃): Max +225

• Design Temp.(℃): Min -196

• Dimension: 7.6"(19.4cm）x 2.8"(7.2cm)x 6.3"(16.1cm)

Package Content

• 1 x Heat Exchanger

• 1 x A Pair of Hoops

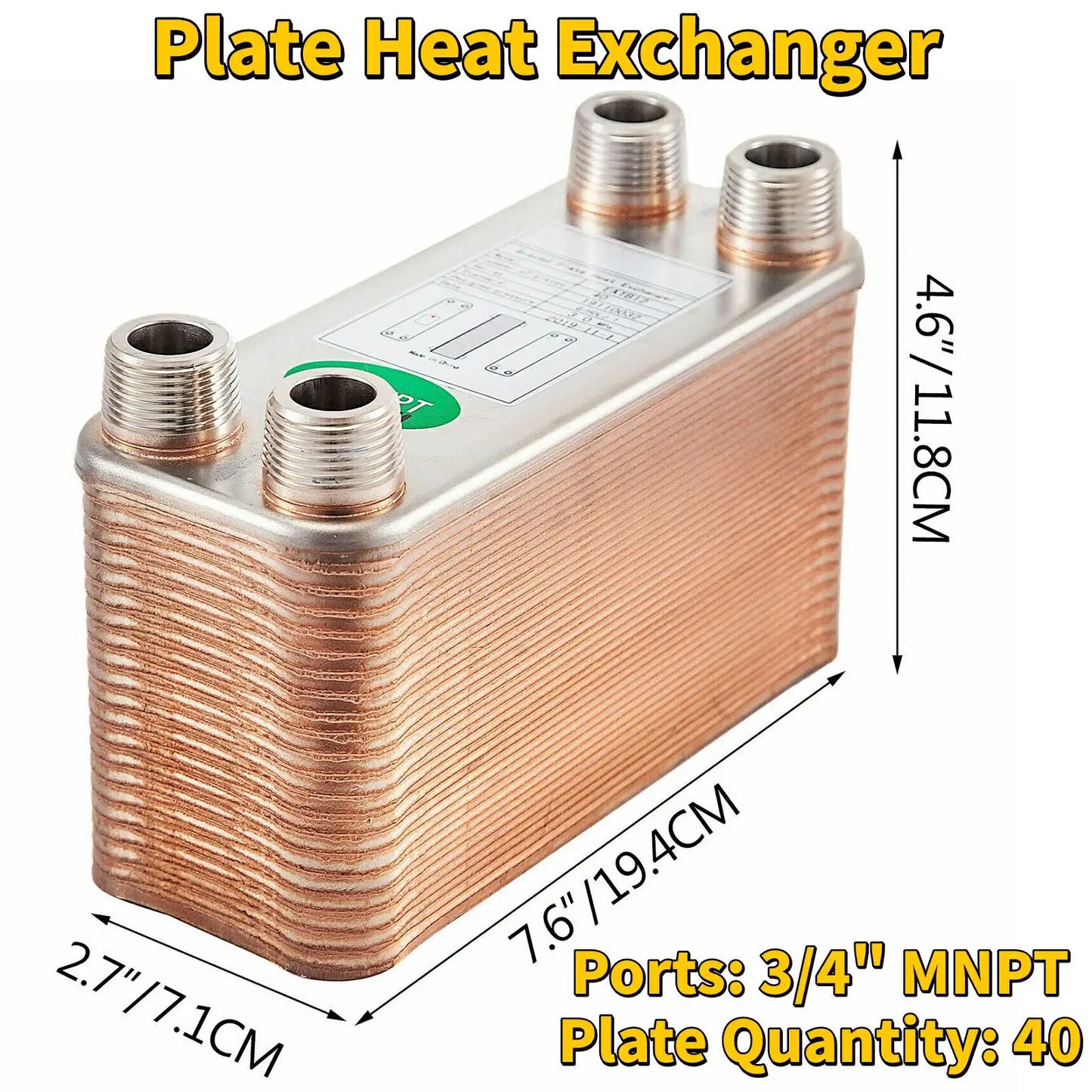

Brazed Plate Heat Exchanger 40 Plate

• Model: 40 Plates

• Material: 316L +99.9% Copper

• Ports: 3/4" MNPT

• Plate Quantity: 40

• Design Pressure(Max):3.0 Mpa

• Test Pressure:(Min):4.5 Mpa

• Design Temp.(℃): Max +225

• Design Temp.(℃): Min -196

• Dimension: 7.6"(19.4cm）x 2.7"(7.1cm)x 4.6"(11.8cm)

Package Content

• 1 x Heat Exchanger

• 1 x A Pair of Hoops

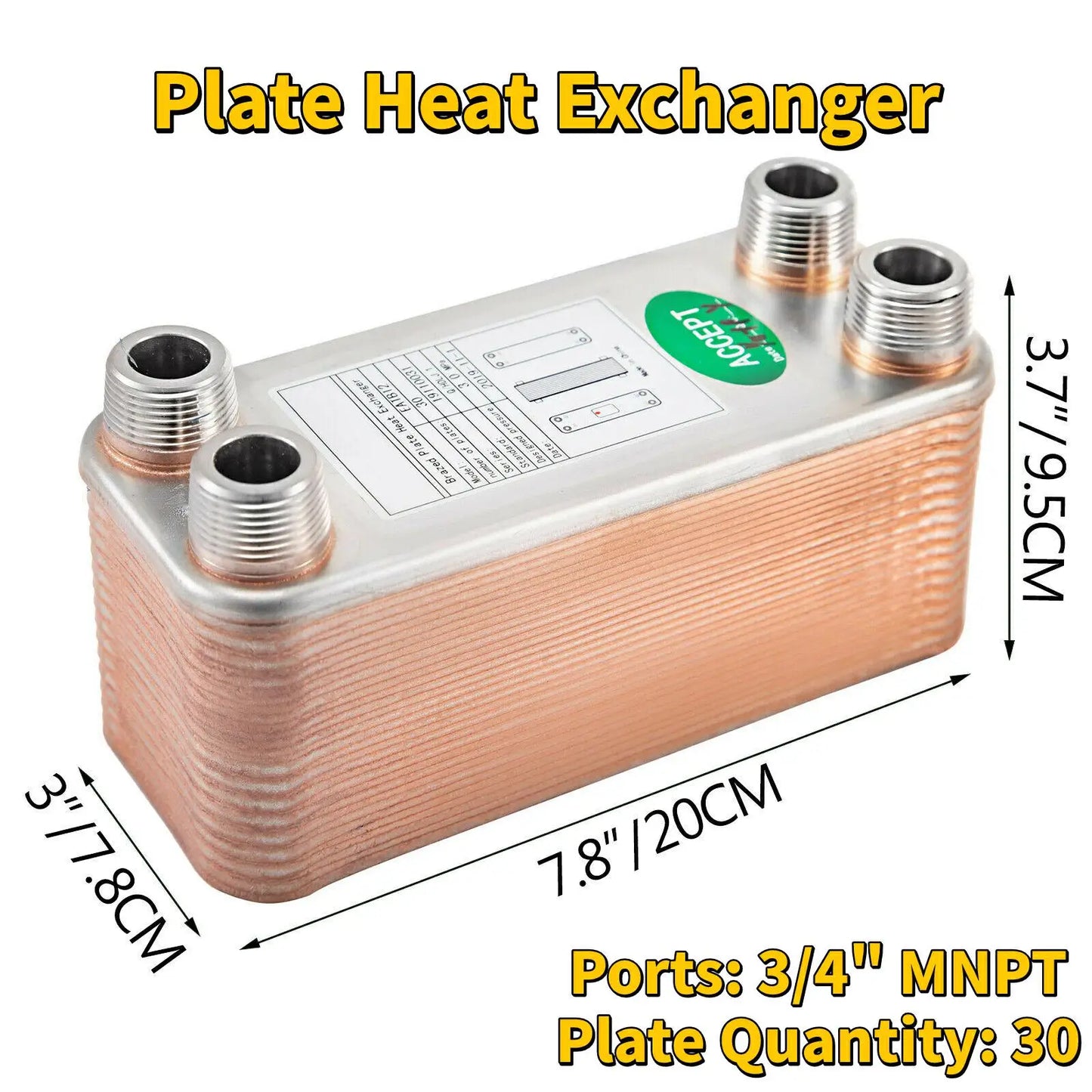

Brazed Plate Heat Exchanger 30 Plate

• Model: 30 Plates

• Material: 316L +99.9% Copper

• Ports: 3/4" MNPT

• Plate Quantity: 30

• Design Pressure(Max):3.0 Mpa

• Test Pressure:(Min):4.5 Mpa

• Design Temp.(℃): Max +225

• Design Temp.(℃): Min -196

• Dimension: 7.8"(20cm）x 3"(7.8cm)x 3.7"(9.5cm)

Package Content

• 1 x Heat Exchanger

• 1 x A Pair of Hoops

Features & Details

• 【HIGH THERMAL EFFICIENCY】- Turbulent-flow design moves the two media in opposite directions and creates strong turbulence for superior heat transfer rates and efficiency. Our heat exchanger series have been certificated by CE.

• 【ENERGY OPTIMIZED】 - This heat exchanger stainless can heat water to the preset temperature, which is super energy-saving with no electricity consumption and no oxygen consumption.

• 【ROBUST CONSTRUCTION】- This 60 plate / 40 plate / 30 plate heat exchanger features 316L stainless steel sheets, which are brazed together at the edges and the matrix of contact points for a reliable and rugged part to form a durable, integral piece that can withstand high pressure and temperature. Four thickened BSP FPT / MNPT ports for your easier installation.

• 【COMPACT DESIGN】- Corrugated plate design of this plate chiller wort allows for substantially smaller build and footprint at an equivalent or better performance compared to other heat transfer devices – resulting in significant space savings.

• 【HIGHLY VERSATILE】- This heat exchanger beer offers the highest level of thermal efficiency and durability in a compact & lightweight unit, ideal for industrial oil cooling, refrigerant evaporators, and condensers, residential and light commercial HVAC hydronic systems.

Applications

•Domestic Hot Water Heating

• Central Heating

• Floor Heating

• Driveway Snow Melting

• Radiator Heating

• Heating and Cooling HVAC Installation

• Solar Heating

Note for Installation:

• Vertical installation is recommended to minimize sediment build-up and reduce maintenance.

• For any type of project, installing a Y-strainer at the heat exchanger inlet is recommended to reduce fouling and extend the unit's lifespan.

• Connect the pipes in a manner where liquids move in a counter-flow direction, which will maximize the heat transfer.
