SPECIFICATIONS
Brand Name: STEPPERONLINE
Certification: ce,ROHS
Current / Phase: 4.2A
D-CUT Shaft Length: 15mm
Holding Torque: 3.0 Nm(424.92oz.in)
Lead Length: 300mm
Model Number: 1-CL57T-S30A-V41
Phase: 2
Shaft Diameter: 8mm
Shaft Length: 21mm
Step Angle(degrees): 1.8 deg
Type: HYBRID

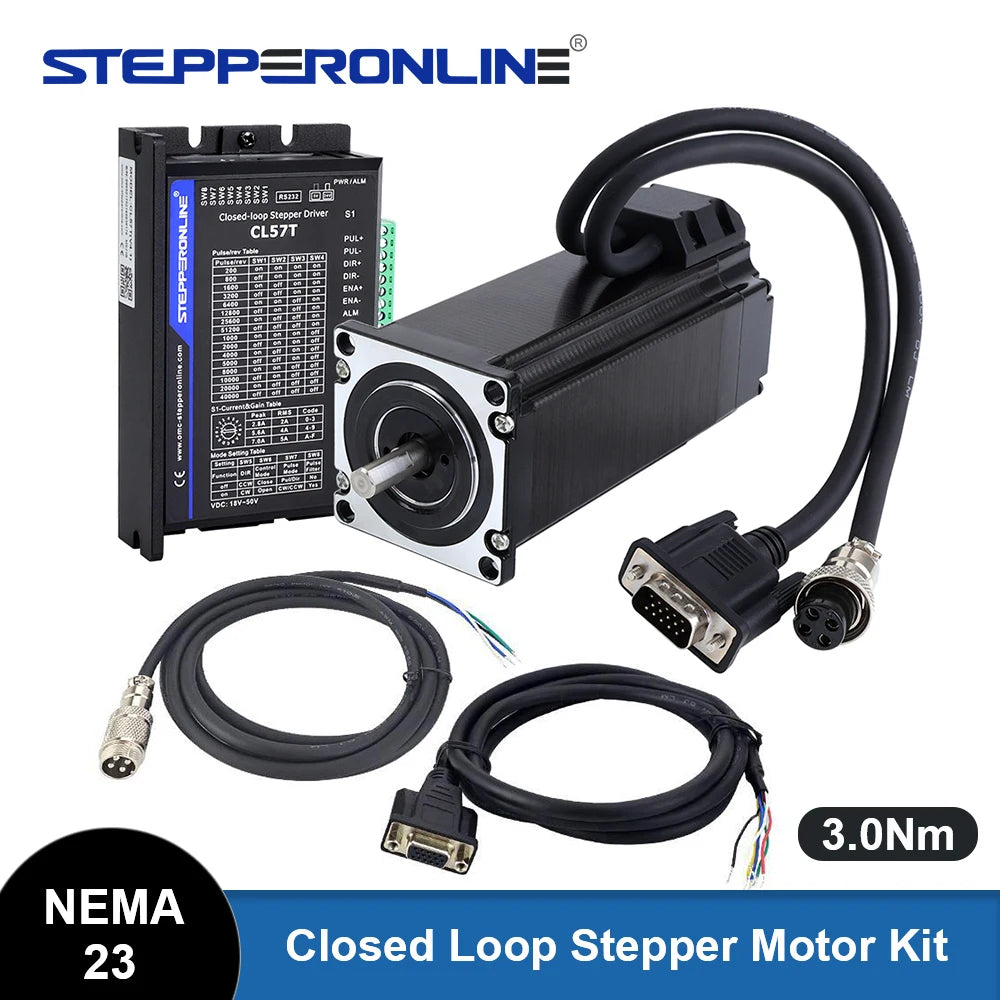

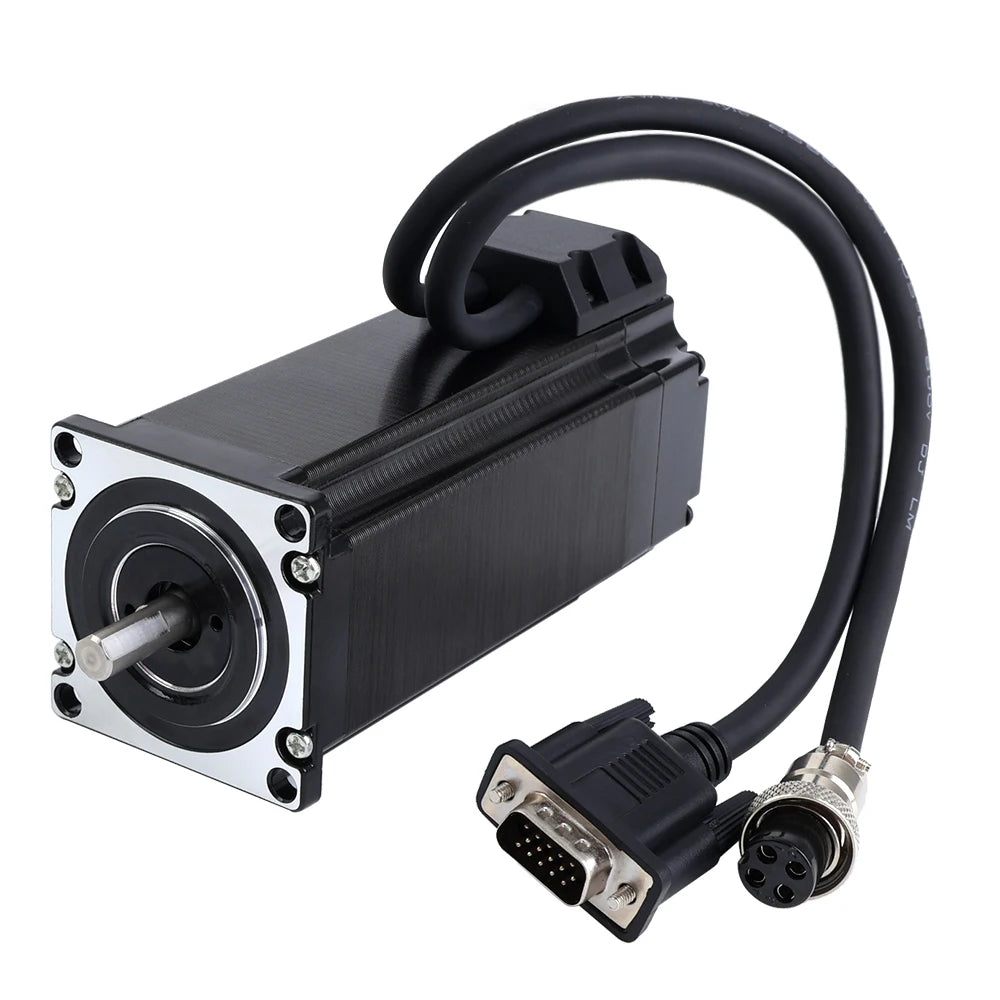

1 x 23HS45-4204D-E1000: 3.0Nm Closed loop stepper motor

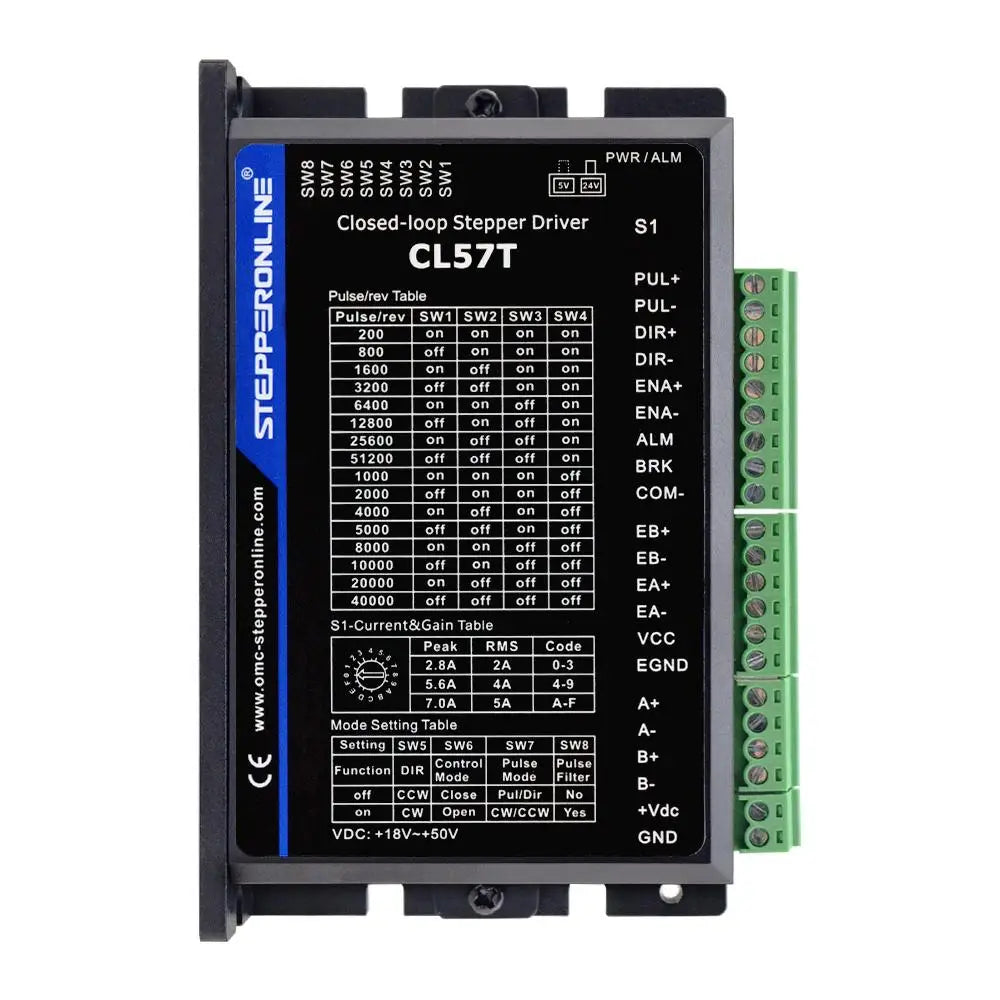

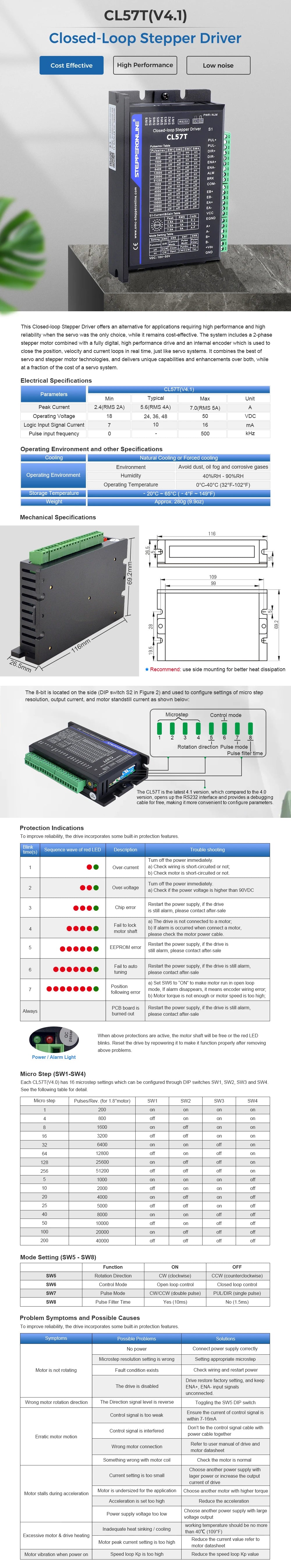

1 x CL57T: Nema 23/Nema 24 Closed loop stepper motor driver V4.1

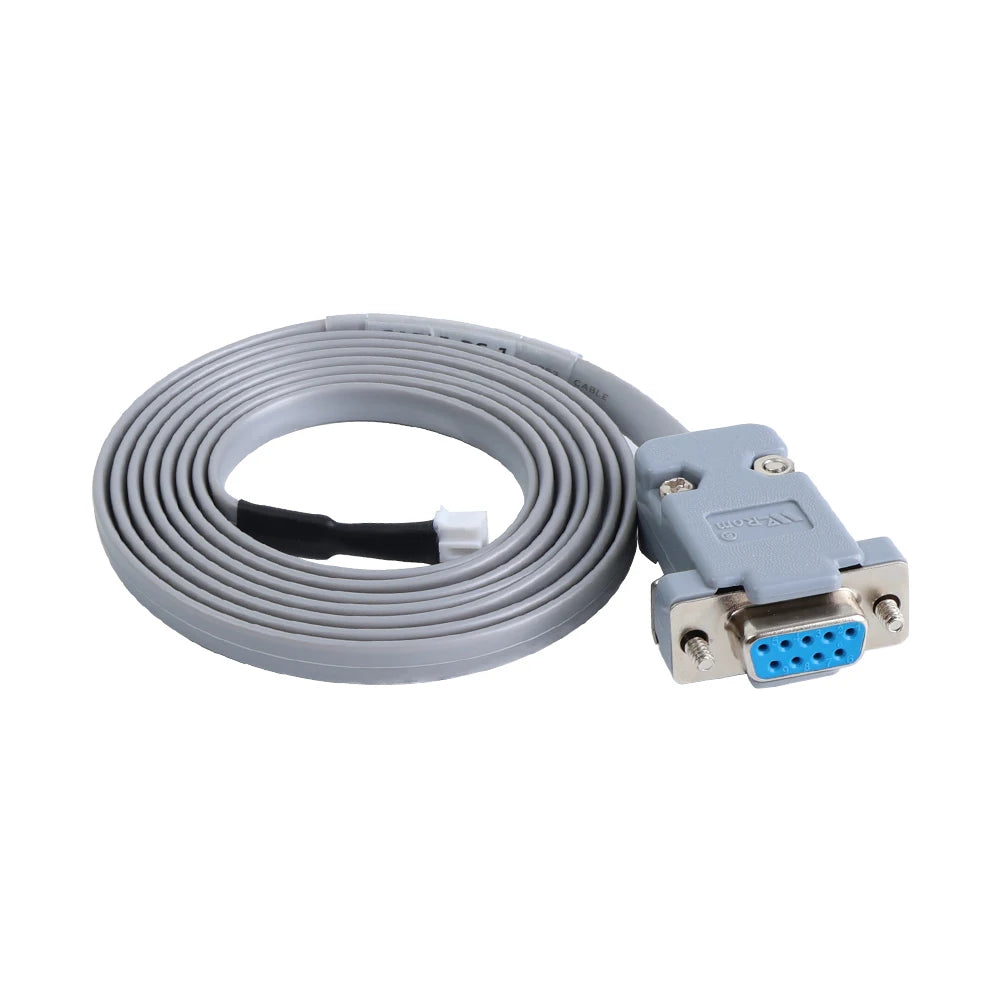

1 x CABLE-PC-1: RS232 Debugging Cable

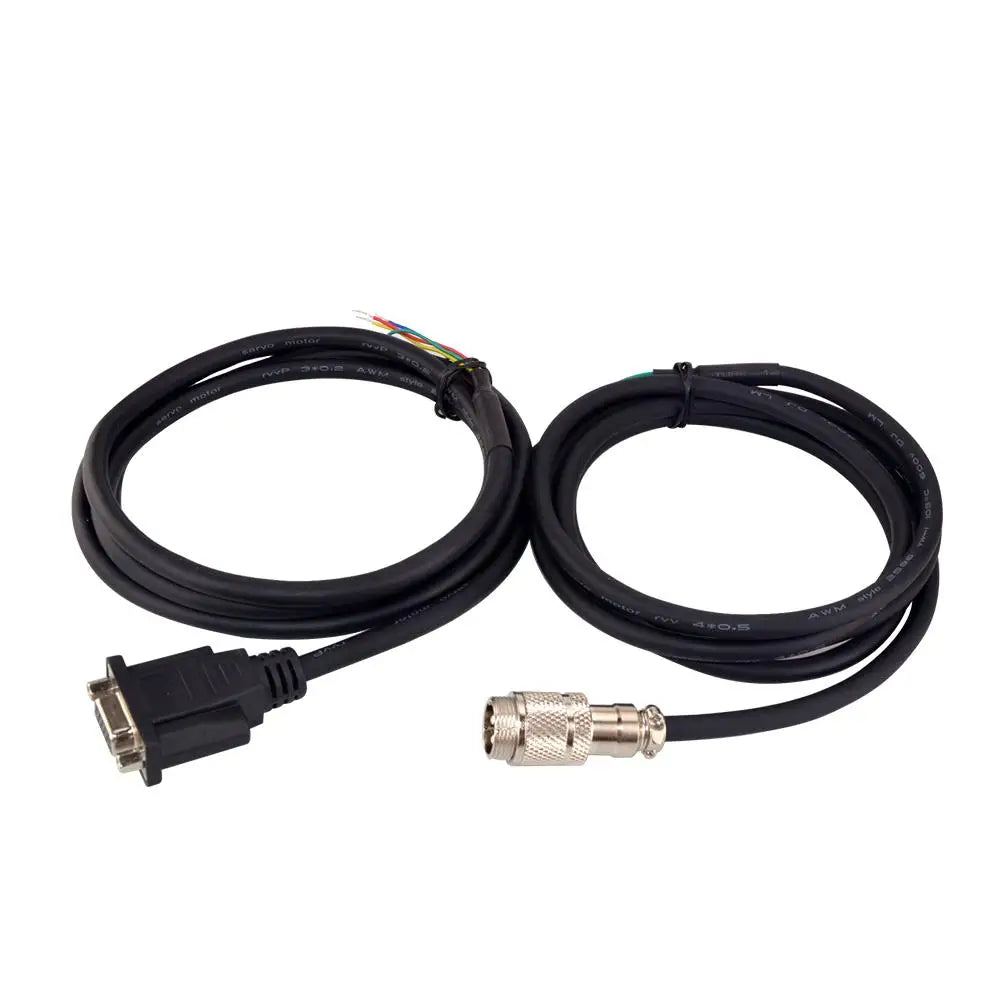

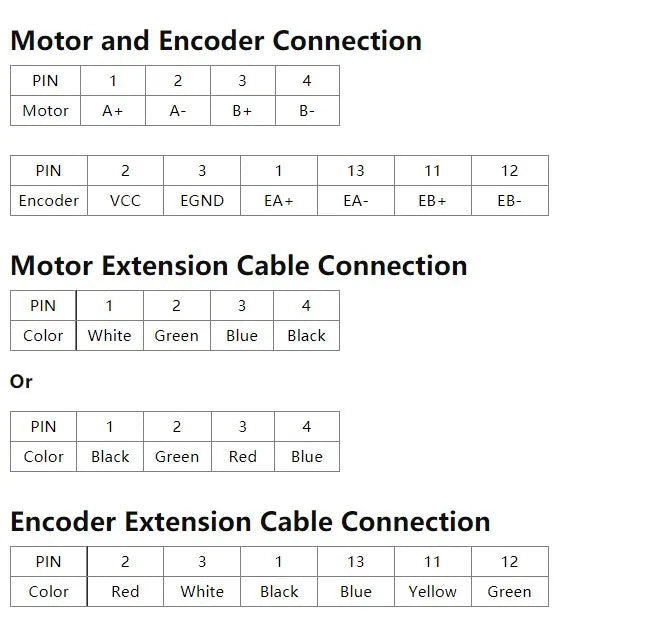

1 x CE2M: 1.7m(67") Long Encoder Extension Cable for Closed Loop Stepper Motor
1 x CM2M-20: RV-4 AWG20 1.7m(67") Long Motor Extension Cable with GX16 Aviation Plug
The CL57T in this kit is the latest 4.1 version, which compared to the 4.0 version, opens up the RS232 interface and provides a debugging cable for free, making it more convenient to configure parameters.
Each order comes with a free debugging cable: RS232 Cable for Driver CL57T(V4.1), CL86T(V4.1), CL57RS, CL86RS, DM556RS and DM882RS.

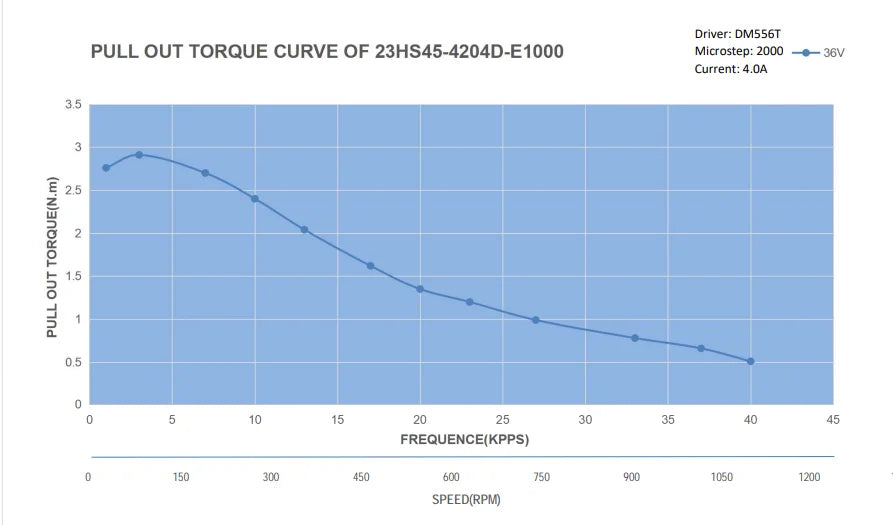

Part Number: 23HS45-4204D-E1000
Number of phase: 2
Holding Torque: 3.0Nm(424.83oz.in)
Rated Current/phase: 4.2A
Phase Resistance: 0.82ohms
Inductance: 3.6mH ± 20%(1KHz)
Frame Size: 57 x 57mm
Body Length: 138mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-Cut Shaft Length: 15mm
Lead Length: 300mm
Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ
