SPECIFICATIONS



Brand Name: SANNCE

Two-way Audio: no

Wireless Security: WPA

POE: 8 Port

e-Cloud(P2P): no

Hard Drive Size: 3.5''

Supported Mobile Systems: iPhone OS

Supported Mobile Systems: Android

Model Number: N98PBD

Technology: Network

Video Standard: NTSC

Video Standard: PAL

Alarm Action: FTP Photo

Alarm Action: Email Photo

Alarm Action: Local Alarm

Audio Output: None

Communication Interface: None

Video Compression: H.265+

IP Video Input: 8CH POE+2CH

Video Output: HDMI Up to 4K

Max Playback Channel: 4CH

Max Recording Resolution: Up to 8M(3860x2160)

Onvif Protocols: Support

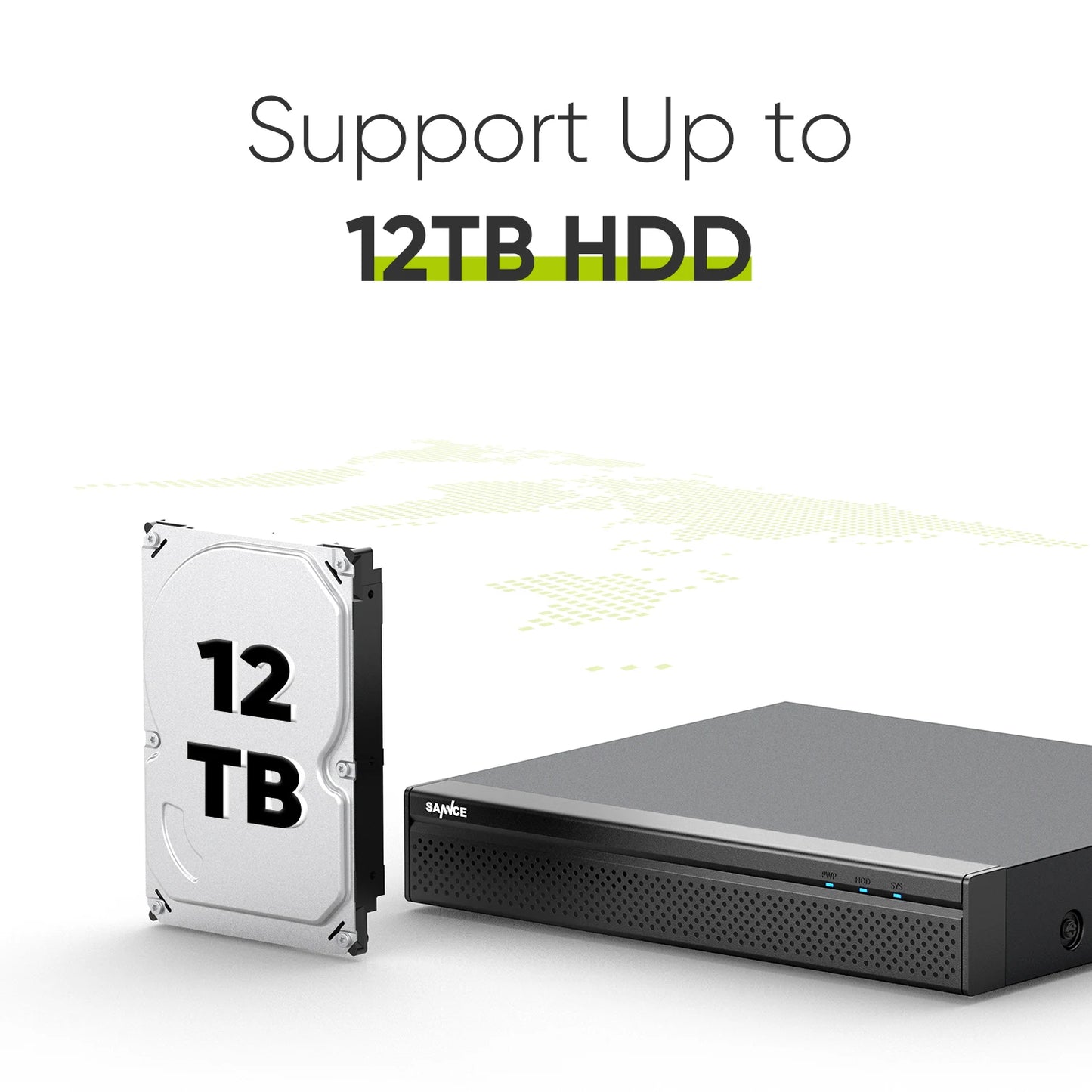

HDD Capacity: Up to 12TB capacity

Operating Power: DC48V

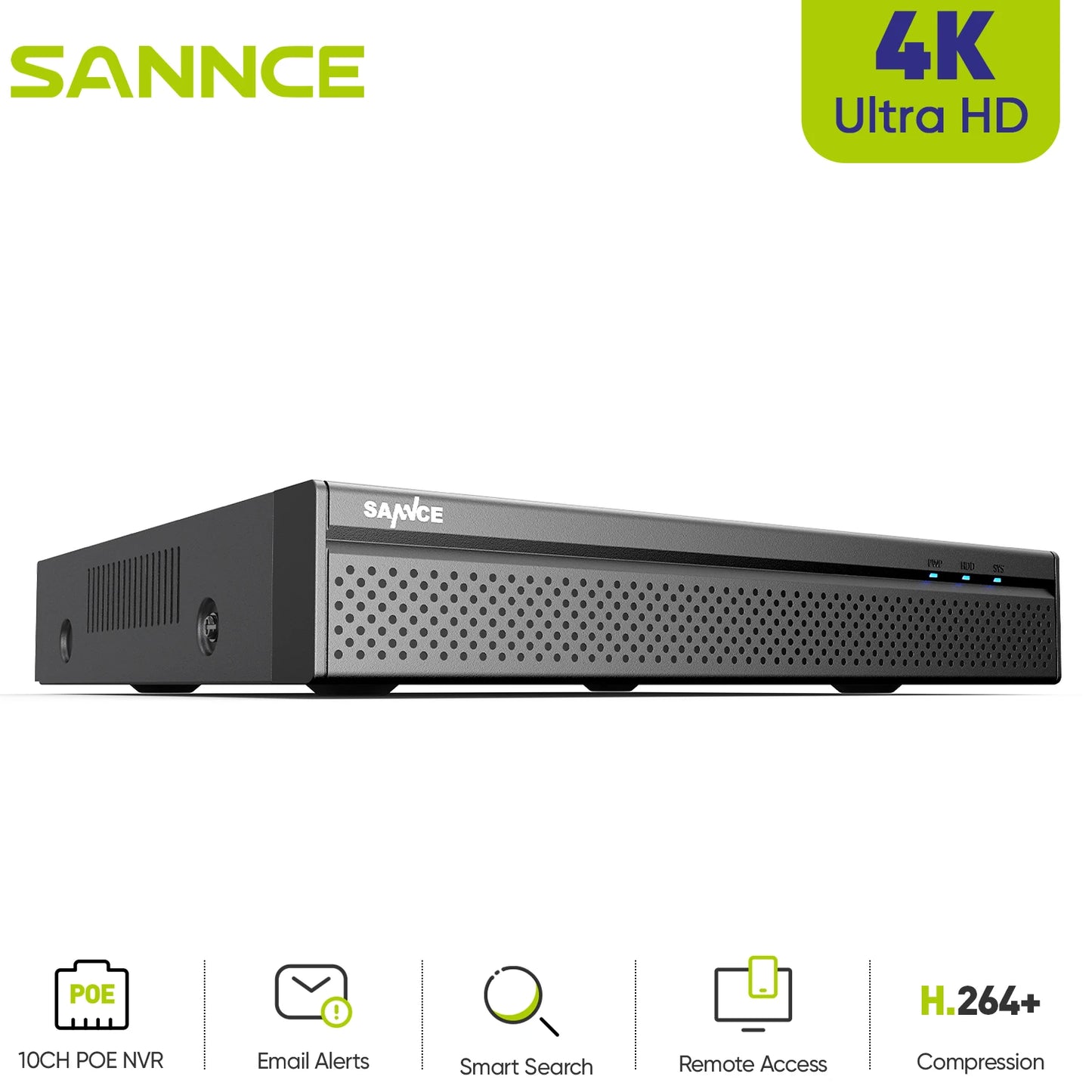

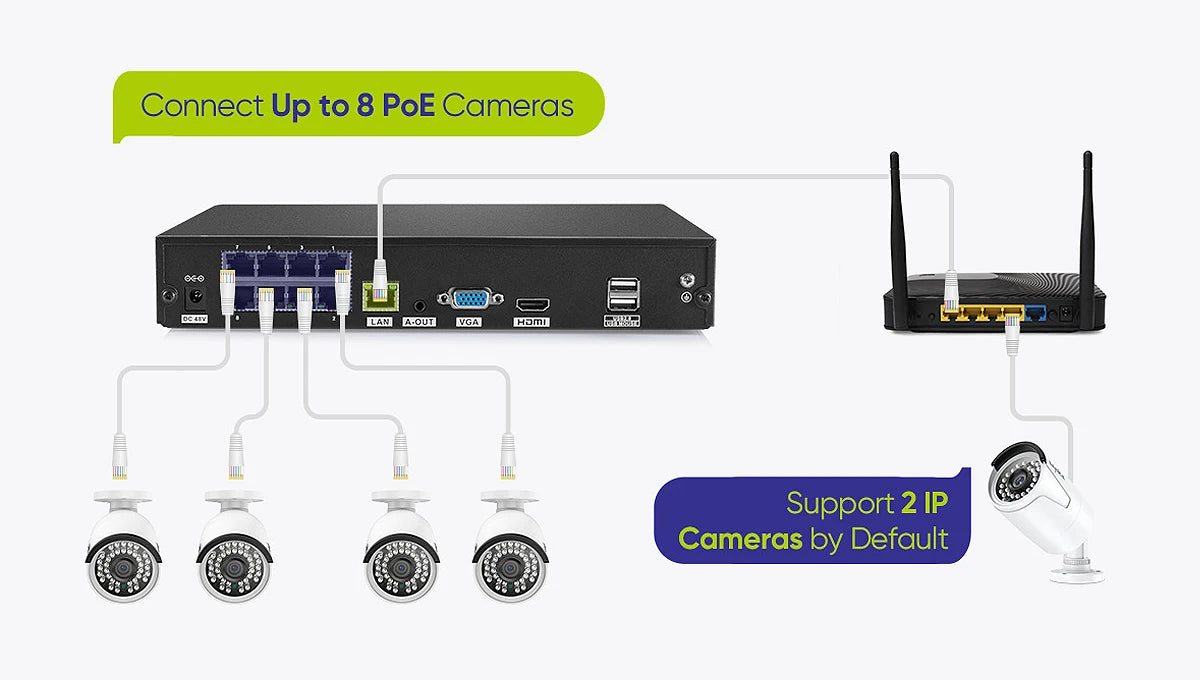

8MP Full HD - Supporting up to 8CH 8MP cameras in total, you can hook up 8CH PoE cameras plus 2CH IP cameras. Just build up your security web according to your needs. The POE NVR is the perfect choice for your surveillance system. With its 10-channel 8MP HD camera input and 4K HD quality, you can rest assured that your security is in good hands. The 8 100Mbps PoE ports are compliant with the IEEE 802.3af/at standard, providing a reliable and secure connection with up to 30W of power per port.

Support HDMI&VGA Output -To connect with external monitors or HD TVs, HDMI is supported to transmit in 4K resolution. VGA output is also supported for sharing video feeds. This NVR also supports human/face/vehicle detection (if supported by the front-end camera protocol), manual/alarm/motion detection/timed recording modes (alarm recording requires an external alarm device), and intelligent retrieval playback for time points/calendars/events/channels/faces/vehicles.

Unlimited Remote Access -Once human detection is enabled, or specific zones are set, for instance, at your front door or backyard, the system catches up with the concerns and sends you real-time alerts via pops-up or emails. Great to focus on the threats and act only when needed. Max up to 12 TB Hard Drive for 24/7 Recording. With the free SANNCE App (Sannce Vision) & Client, you are always free to access the whole system remotely via your smartphones, tablets, computers, or browsers anywhere.

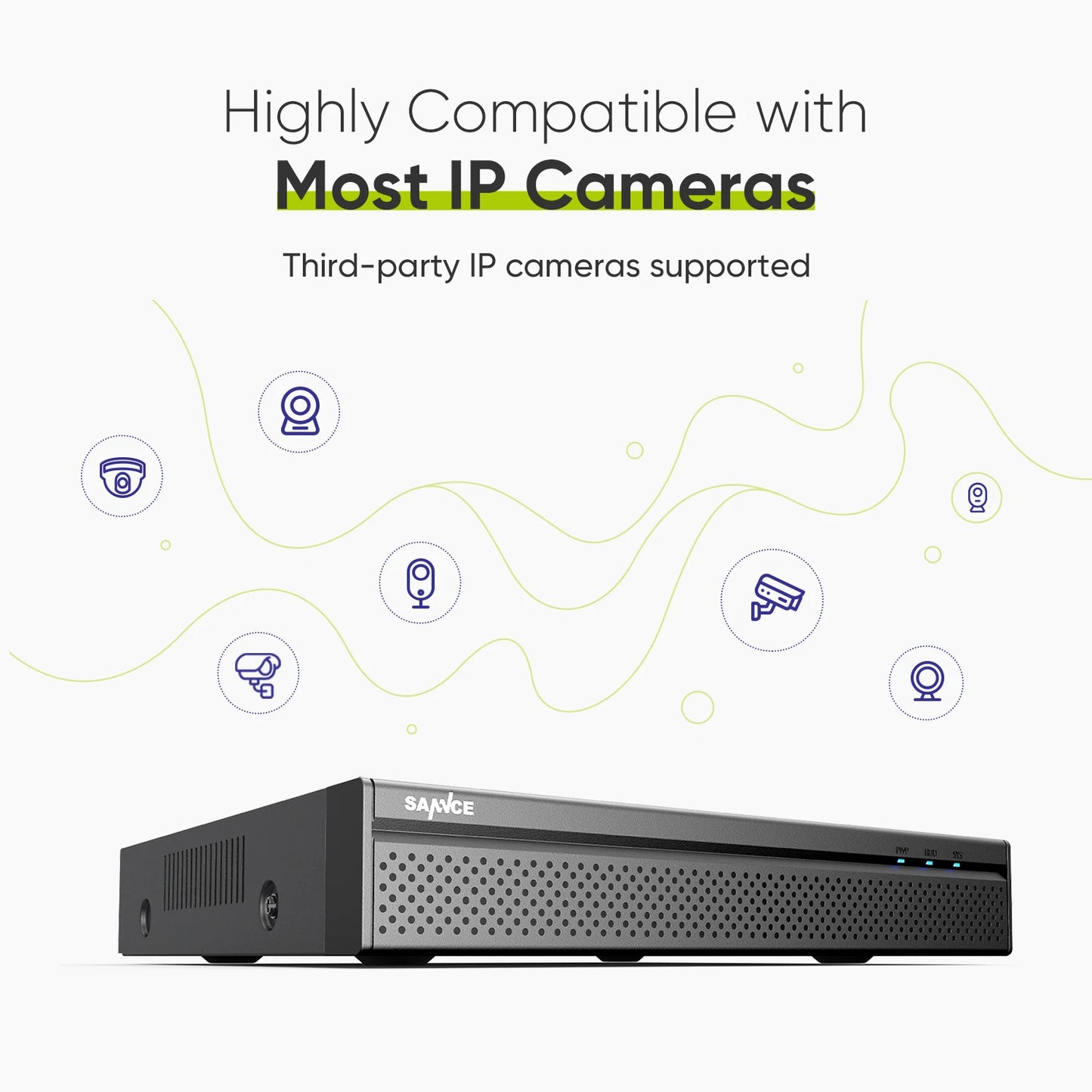

Works with Third Party IP Cam -SANNCE and other brands' IP cameras can work with this SANNCE NVR. No need to leave your original cams in the corner, but it saves you extra expense.

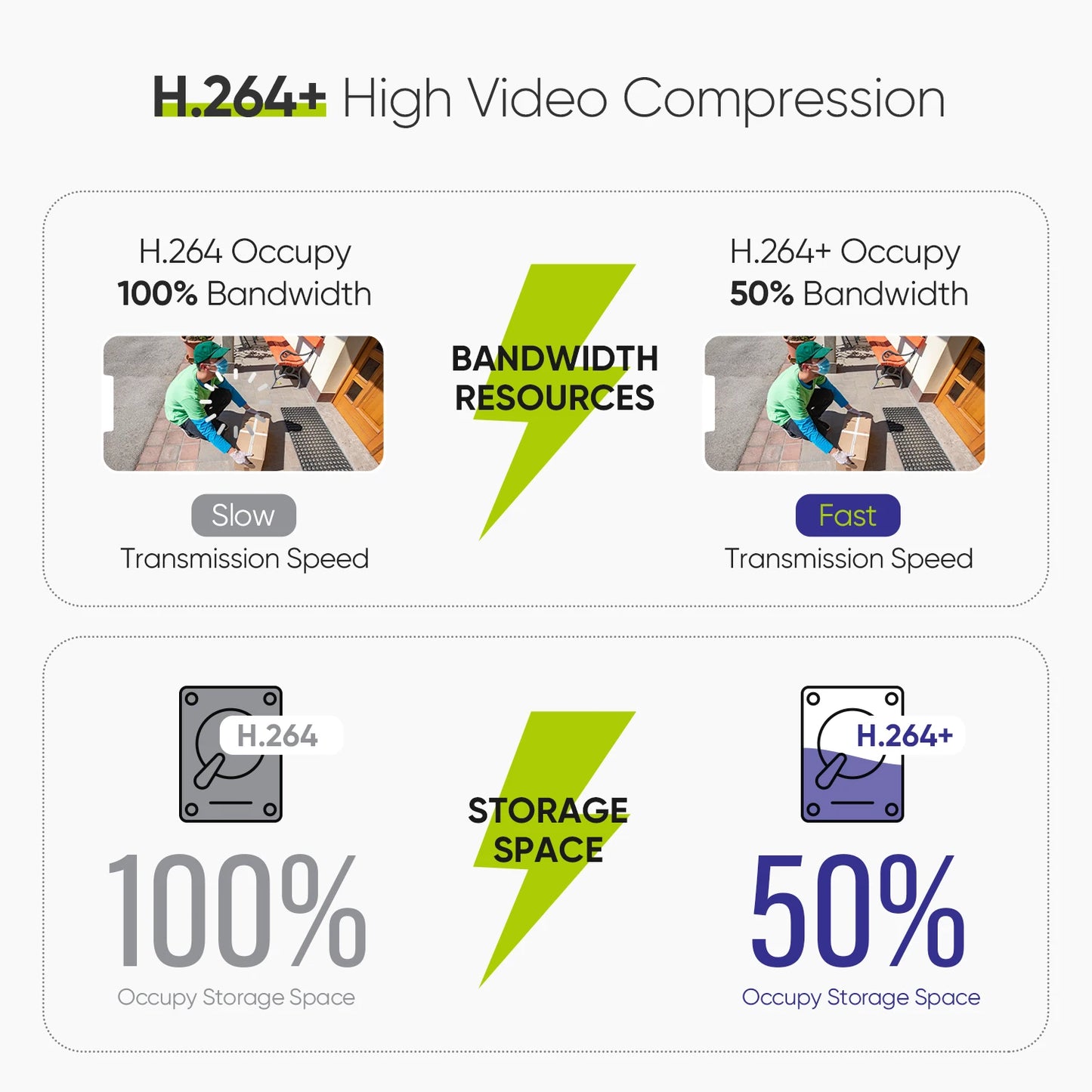

Advanced Video Compression -Either DC 12V or PoE is suitable for power suppliance for your preference. And PoE solution is more convenient as ONE ethernet cable handles both power and data transmission. Upgraded H.264+ handles the data with less storage and bandwidth to take while keeping the image quality crystal clear.

Model Number		N98PBD
Warranty		1 Year
Video & Audio	Video Compression	H.265+
	IP Video Input	8CH POE+2CH
	Video Output	HDMI Up to 4K
	Audio Output	Support
	Max Recording Resolution	Up to 8M(3860x2160)
	Max Playback Resolution	Up to 8M(3860x2160)
	Max Playback Channel	4CH
	Max Playback Capacity	4CH 3MP/2CH 5MP/1CH 8MP
	Onvif	Support
Hard Drive	HDD	1 SATA interface
	HDD Capacity	Up to 12TB capacity
External Interface	Network interface	RJ45x1(10/100/1000M)
	PoE	8 Ports(100Mbps, IEEE802.3at/af)
	USB	USB2.0x2
General	Housing	Metal for main part
	Operating Power	DC48V 2A
	Power Consumption	10W(without HDD)
		PoE: Max 30W for single port
	Working Temperature	32 °F – 131 °F /0 °C – 55 °C

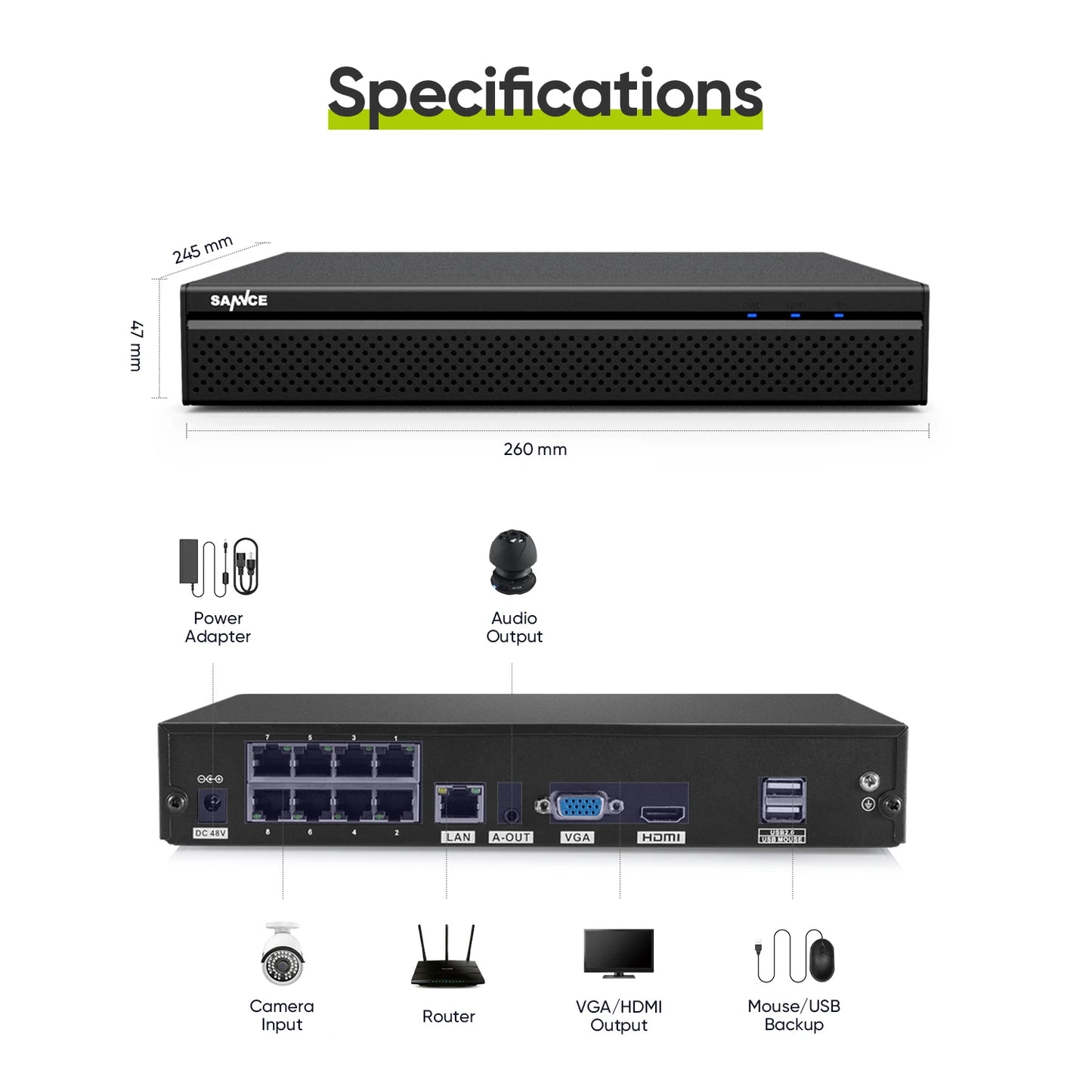

	Dimensions(W x H x D)	260x245x47mm
	Weight (without hard disk)	820g(without HDD)

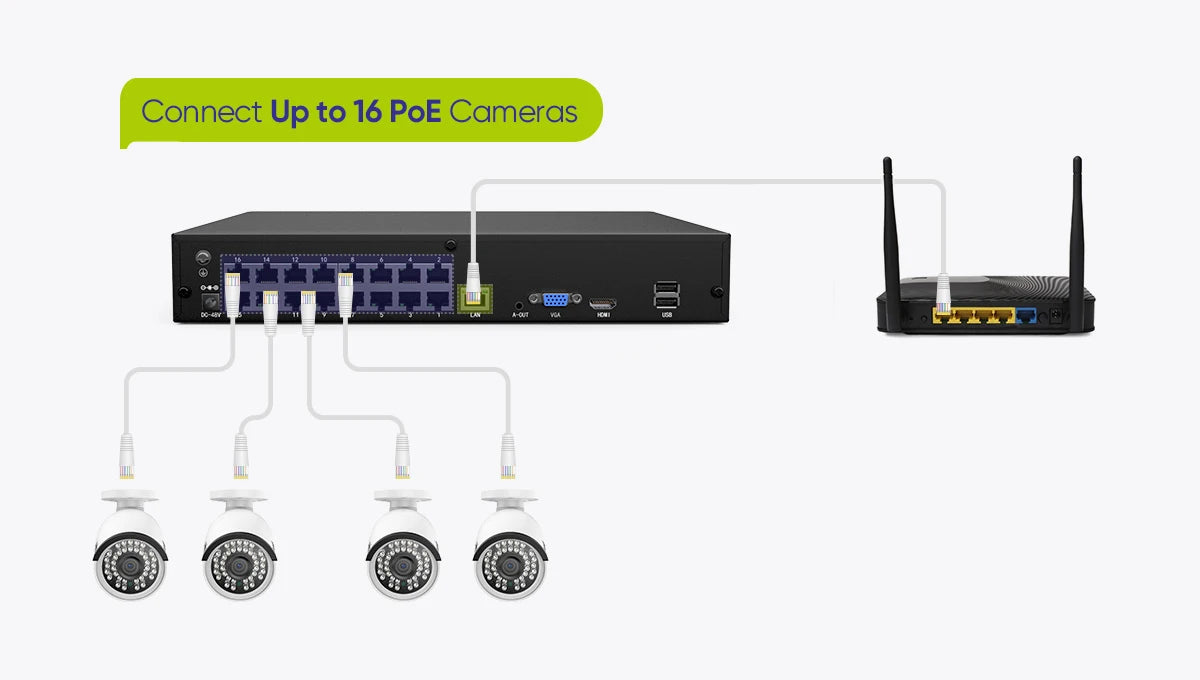

【16CH 4K Finest Images】With a total of sixteen 100Mbps PoE channels of 8MP UHD cameras, this NVR boasts its ability to handle high-definition footage with superb details even when zoomed in, leaving vagueness and obscurity in the past.

【Recognize Not Just Humans & Vehicles, but Faces】With advanced facial recognition technology, this security system has stepped into a new era where human detection's accuracy has been dramatically improved, along with vehicle detection. You will be notified of any recognized faces or cars via app pushes or email (*note: cameras need to support Face, Human & Vehicle Detection). Additionally, setting up recording time has never been easier.

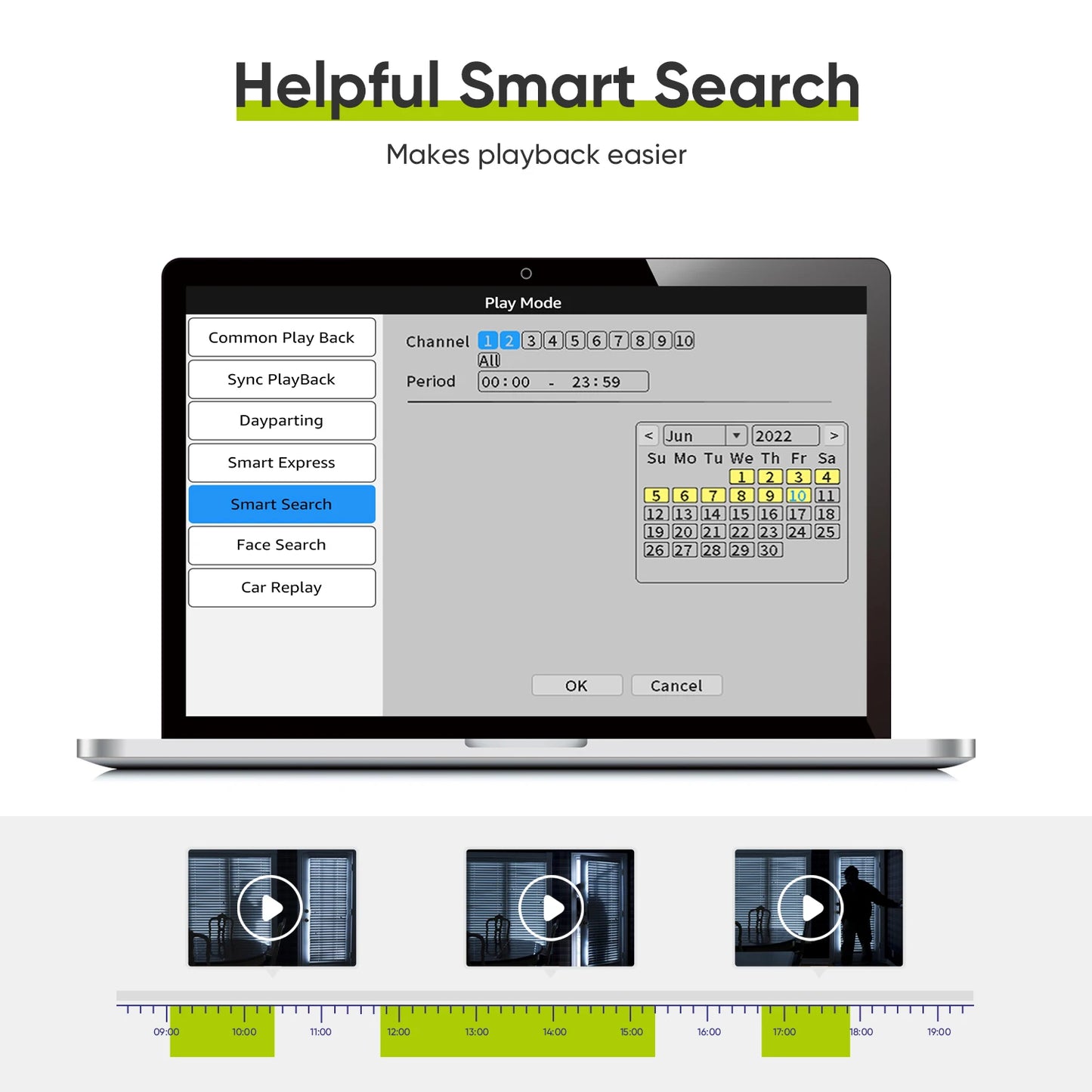

【Find Essential Records in No Time】Filter through time, date, event, channel, vehicle, and more to efficiently locate the targets of interest, whether it's visitors entering or vehicles passing by.And it's easy to store your video clips in your usbs or HDDs.

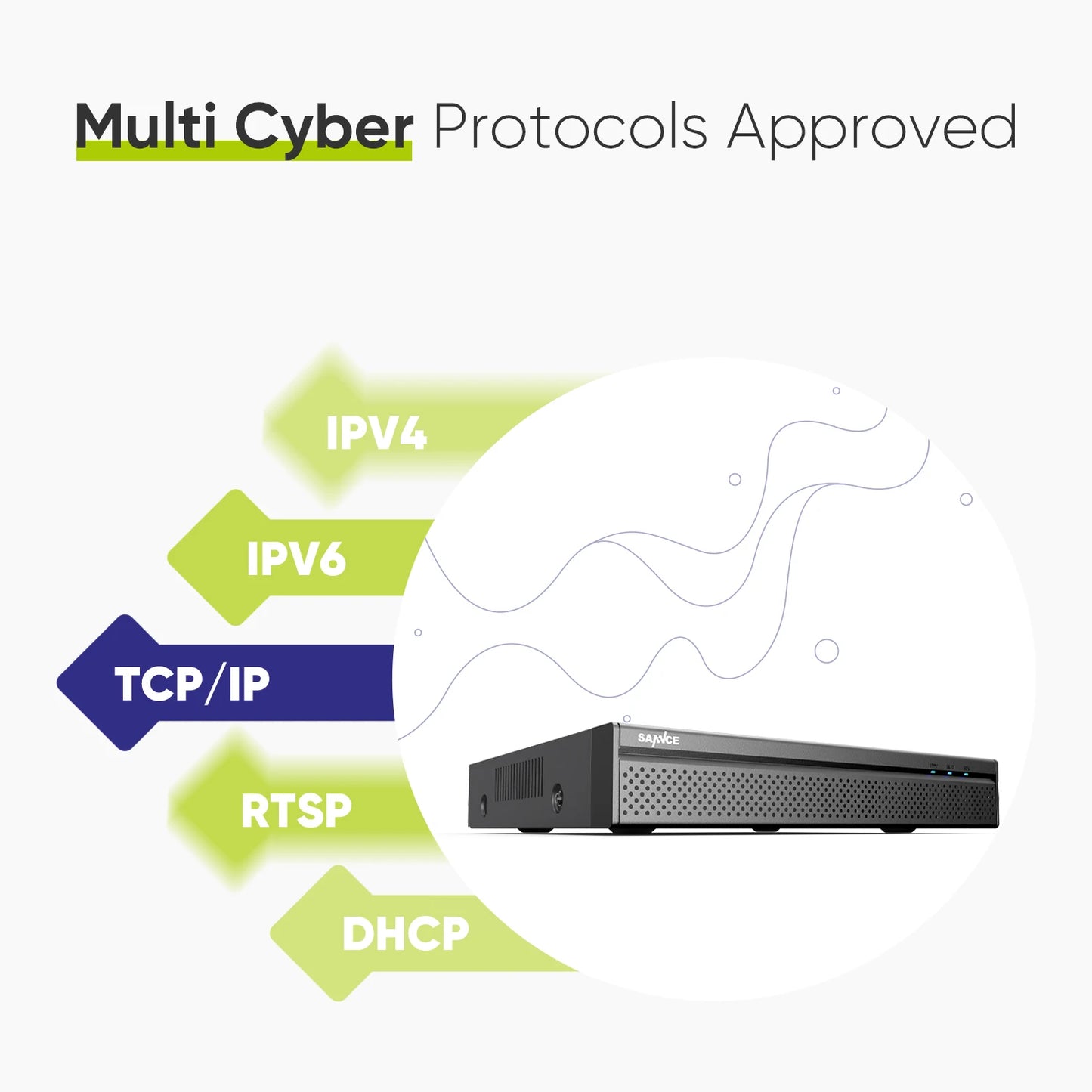

【Your One-and-Forever NVR】With just one ethernet cable, connect and power all the surveillance cameras in your entire room! This network video recorder offers extensive compatibility with third-party IP cameras and supports various network protocols, including IPV4, IPV6, RTSP, TCP/IP, DHCP, and more.

【Reliable Expandability】Setting up this NVR is easy peasy - as simple as plug and play! SANNCE's support team is always ready to help you out with any problems you may encounter. Advanced functions support facilitate easy expansion for other devices, offering you flexible and unobstructed monitoring.

Video & Audio	Video Compression	H.265+
	IP Video Input	16CH POE
	Video Output	HDMI Up to 4K
	Audio Output	Support
	Max Recording Resolution	Up to 8M(3860x2160)
	Max Playback Resolution	Up to 8M(3860x2160)
	Max Playback Channel	4CH
	Max Playback Capacity	4CH 3MP/2CH 5MP/1CH 8MP
	Onvif	Support
Hard Drive	HDD	1 SATA interface
	HDD Capacity	Up to 12TB capacity
External Interface	Network interface	RJ45x1(10/100/1000M)
	PoE	16 Ports(100Mbps, IEEE802.3at/af)
	USB	USB2.0x2
General	Housing	Metal for main part
	Operating Power	DC48V 3.75A
	Power Consumption	10W(without HDD)
		PoE: Max 30W for single port
	Working Temperature	32 °F – 131 °F /0 °C – 55 °C
	Dimensions(W x H x D)	325x265x53mm
	Weight (without hard disk)	1290g(without HDD)
