SPECIFICATIONS



12V100AH GP24 Size: 10.24*6.61*8.23inch



12V100AH GP24 Weight(lbs): 23.15(lbs)

12V100AH MAX Size: 11.78*7.63*7.77inch

12V100AH MAX Weight(lbs): 26.45(lbs)

Battery Average Life: Up to 10 years

Battery Cell Composition: Lithium Iron Phosphate

Battery Charge Time: Depends on charging method

Battery Power: 1280Wh

Battery Specific: Portable, Efficiency, Versatile

Brand Name: Humsienk

Cells: EV grade A+ LiFePO4 cells

Energy: 1280Wh

Item Height: 7.77

Item Length: 11.78

Item Type: Car Batteries

Item Weight: 12

Item Width: 7.63

Number Of Batteries: 1

Voltage: 12 V

Warranty: 5 years



Please Note:

Currently we DO NOT ship to Alaska, Hawaii, and Puerto Rico!!

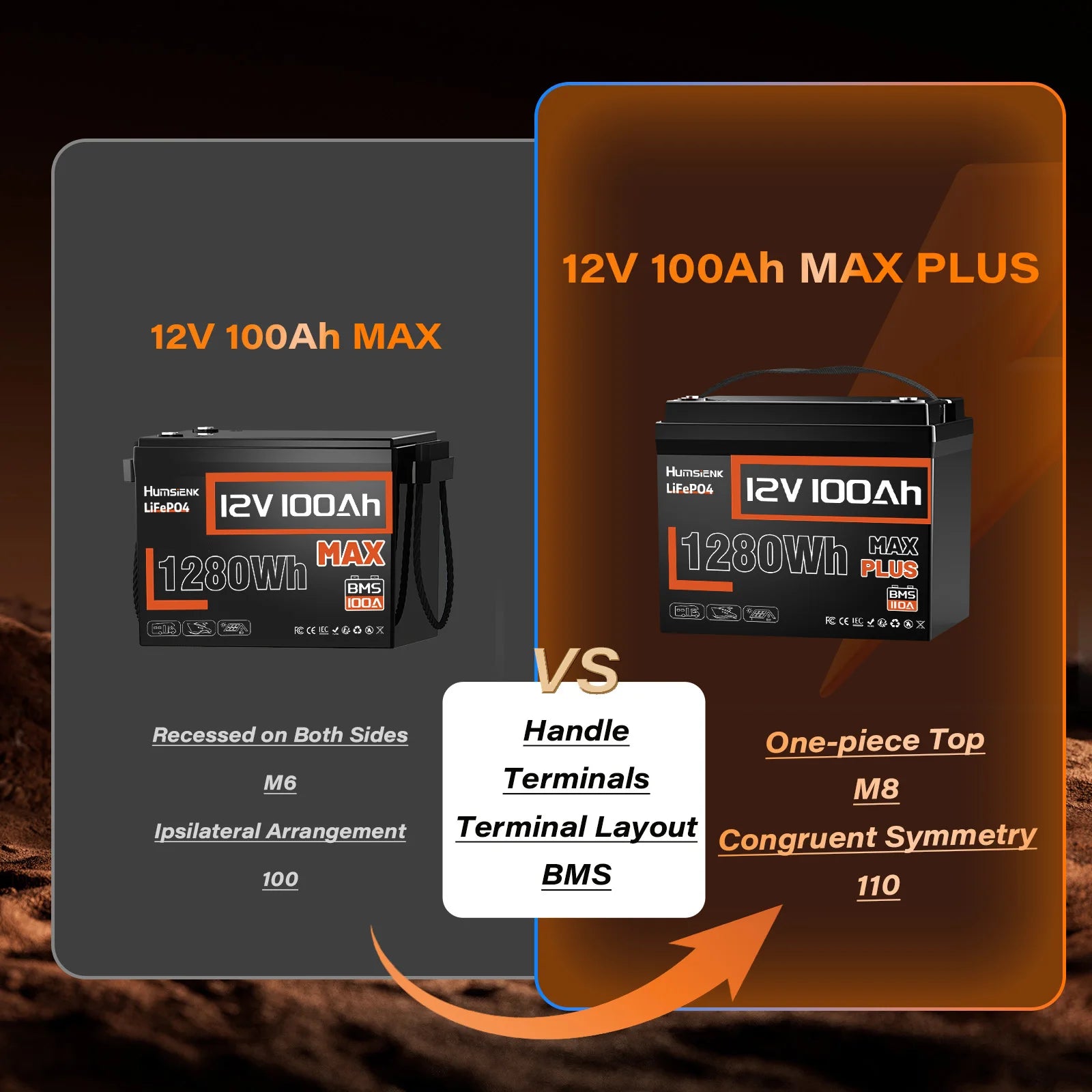

12V 100Ah MAX Version 2.0

⇓

12V 100Ah MAX Plus

Upgrade differences

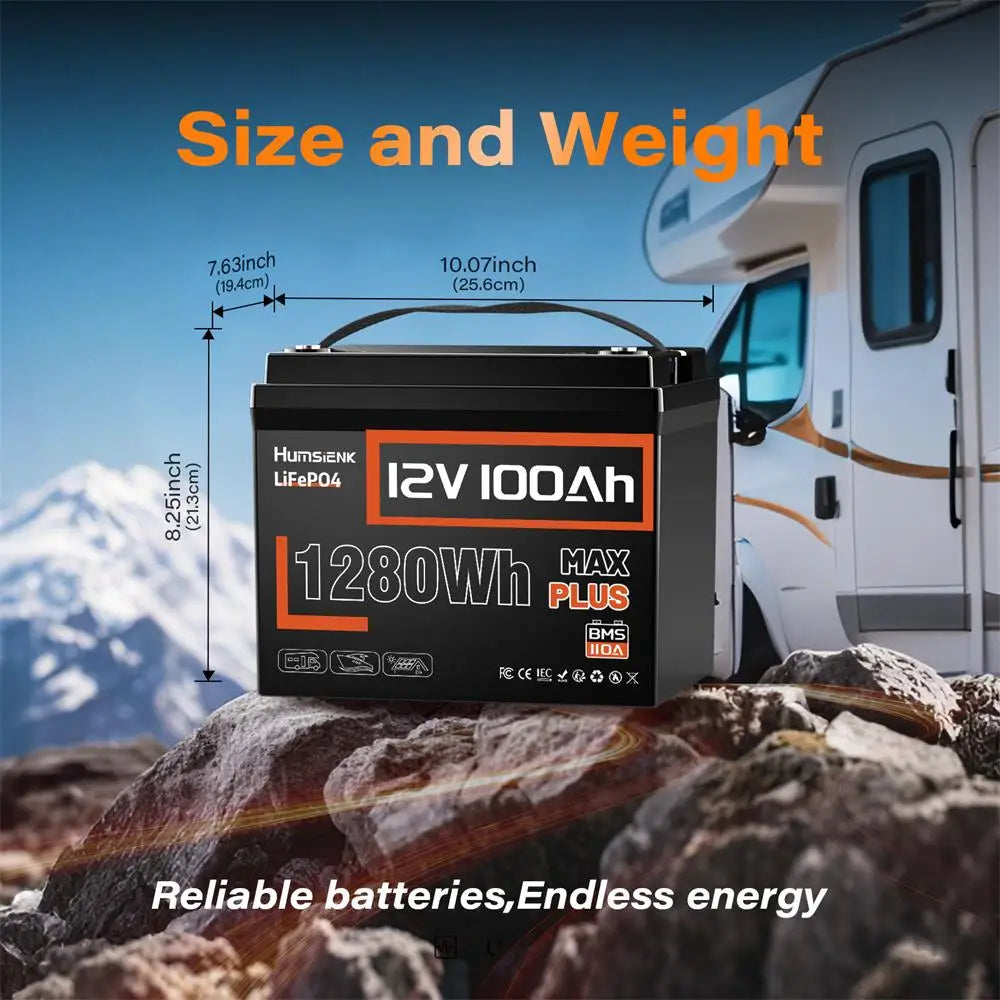

Product size：
11.78*7.63*7.77inch ➨10*7.63*8.4inch
299.3*193.8*193.7mm➨256*194*213mm

Battery weight：
13.4KG/29.54lbs➨13.7KG/30.20lbs

BMS：
100A➨110A

Handle：
Recessed on Both Sides➨One-piece Top

Terminals：
M6➨M8

Terminal Layout：
Ipsilateral Arrangement➨Congruent Symmetry

Except for the above new upgrades, other features are the same as the previous version.

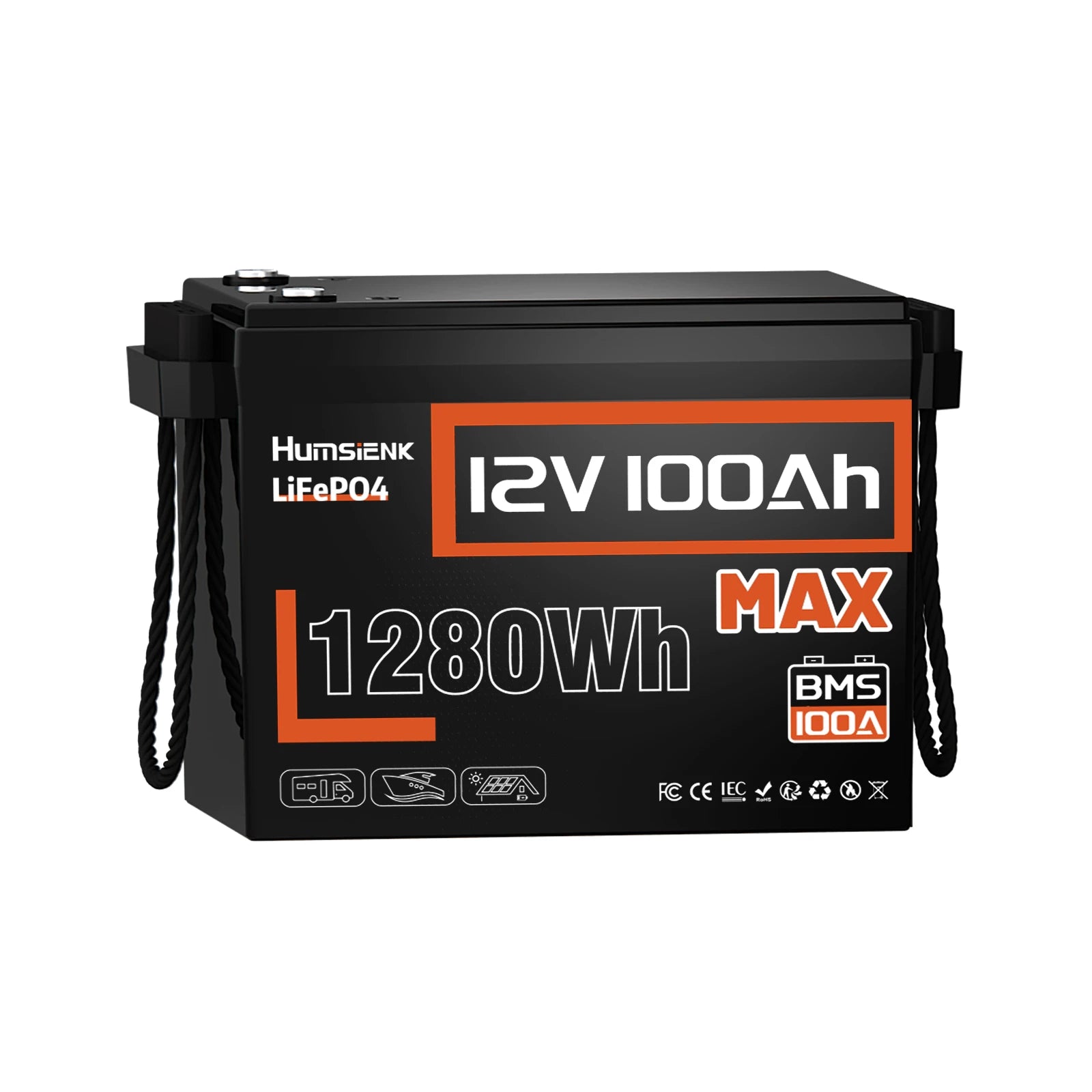

Humsienk 12V 100AH MAX Plus LiFePO4 Battery

Product Sellpoints

【Fast Delivery & No Tax】 Local warehouse in Germany/Poland/USA/Japan/Canada/Australia/UK

【Grade A LiFePO4 Battery】 12V 100Ah LiFePO4 battery can reach 5000~15000 deep cycles, which is equivalent to 3 lead-acid batteries.

【100A BMS & Low-Temp Protection】 BMS (Battery Management System), over-charging protection, over-discharging protection, high/LOW temperature protection, short-circuit protection, over-current protection. And keep the balance between cells.

【Warranty】 We offer 5 years warranty.

Deep Cycle Battery

12.8V 100Ah LiFePO4 battery lasts up to 10 years and achieves 15,000+ deep cycles, 30 times longer than conventional lead-acid batteries.
HumsiENK LiFePO4 battery 100Ah can provide 1.28kWh of energy when fully charged, with 100% depth of discharge(DOD).

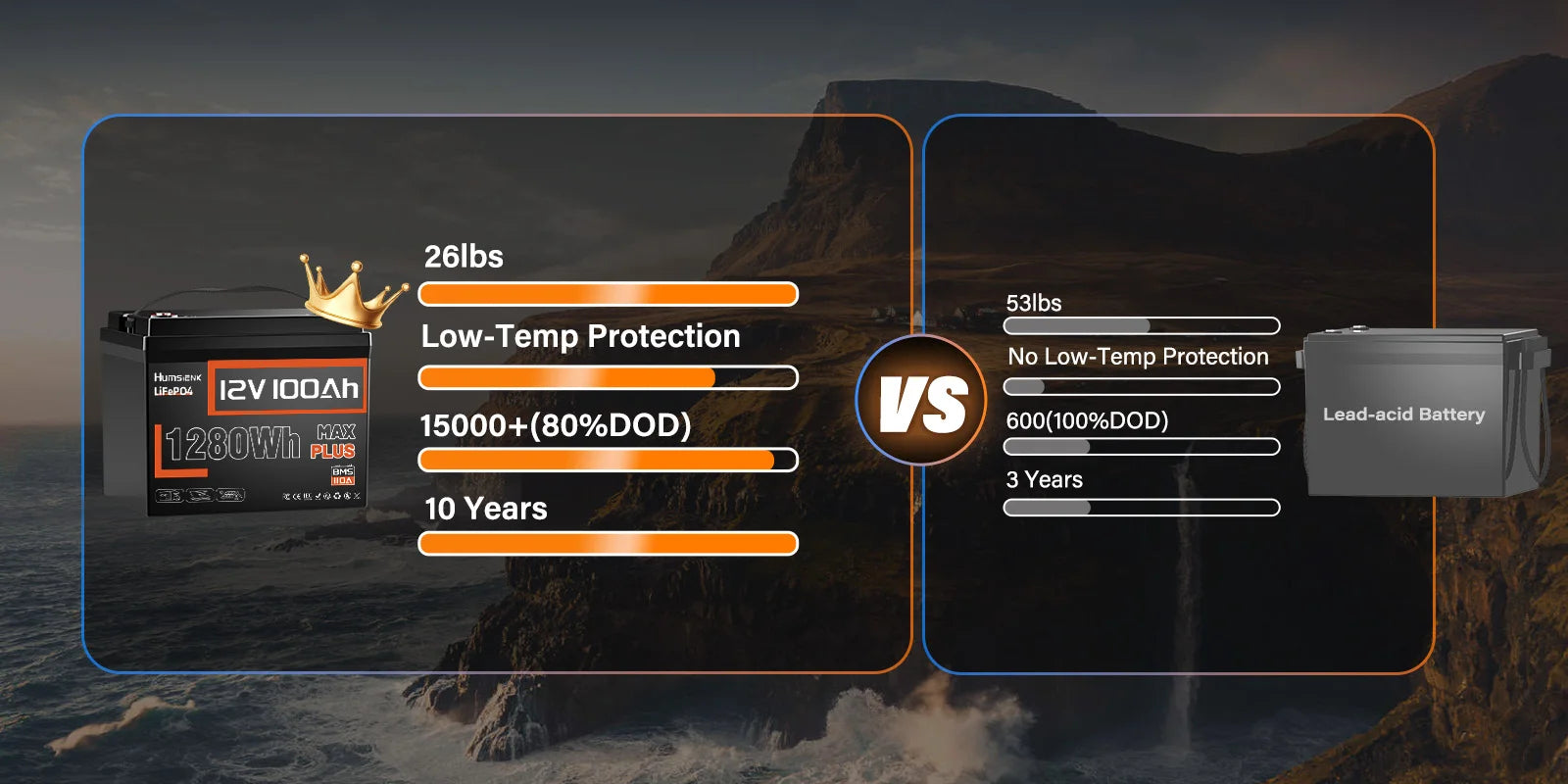

Ideal Replacement for Lead-acid Batteries

Weighing only 30bs, HumsiENK 100Ah LiFePO4 batteries are 35% smaller and over 60% lighter than conventional lead-acid batteries, while their energy density has been increased by 3-5 times. With a lifespan of up to 10 years, LiFePO4 batteries are the perfect replacement for lead-acid batteries.

Comprehensive Safeguard & Advanced Safety System:

Equipped with A+ grade Snacks and a 110A BMS Safeguard board, our battery provides comprehensive overcharge, over-discharge, overcurrent, short-circuit, low-temperature, high-temperature, and overload Safeguard. This advanced safety system ensures safe operation under various usage conditions, reducing the risk of malfunctions and damage.

Power Supply Supports Multiple Loads

HumsiENK 12V lithium batteries are compact with a volume of only 10"L x 7.6"W x 8.4"H, allowing it to work effectively in all types of vehicles and applications. Compared with lead-acid and AGM, SLA batteries, it reduces space and weight(30lbs) by more than 30%, easy installation and no complicated wiring requirement, making it your first choice for efficient solar energy storage systems and RV camping.

Low Temperature Cut off Protection

12V 100Ah LiFePO4 battery works over a wide temperature range (-4℉ to 158℉ / -20℃ to 70℃). It automatically shuts down at low temperatures, ensuring maximum battery protection and performance in a variety of environments.

Premium Lithium Iron Phosphate Battery

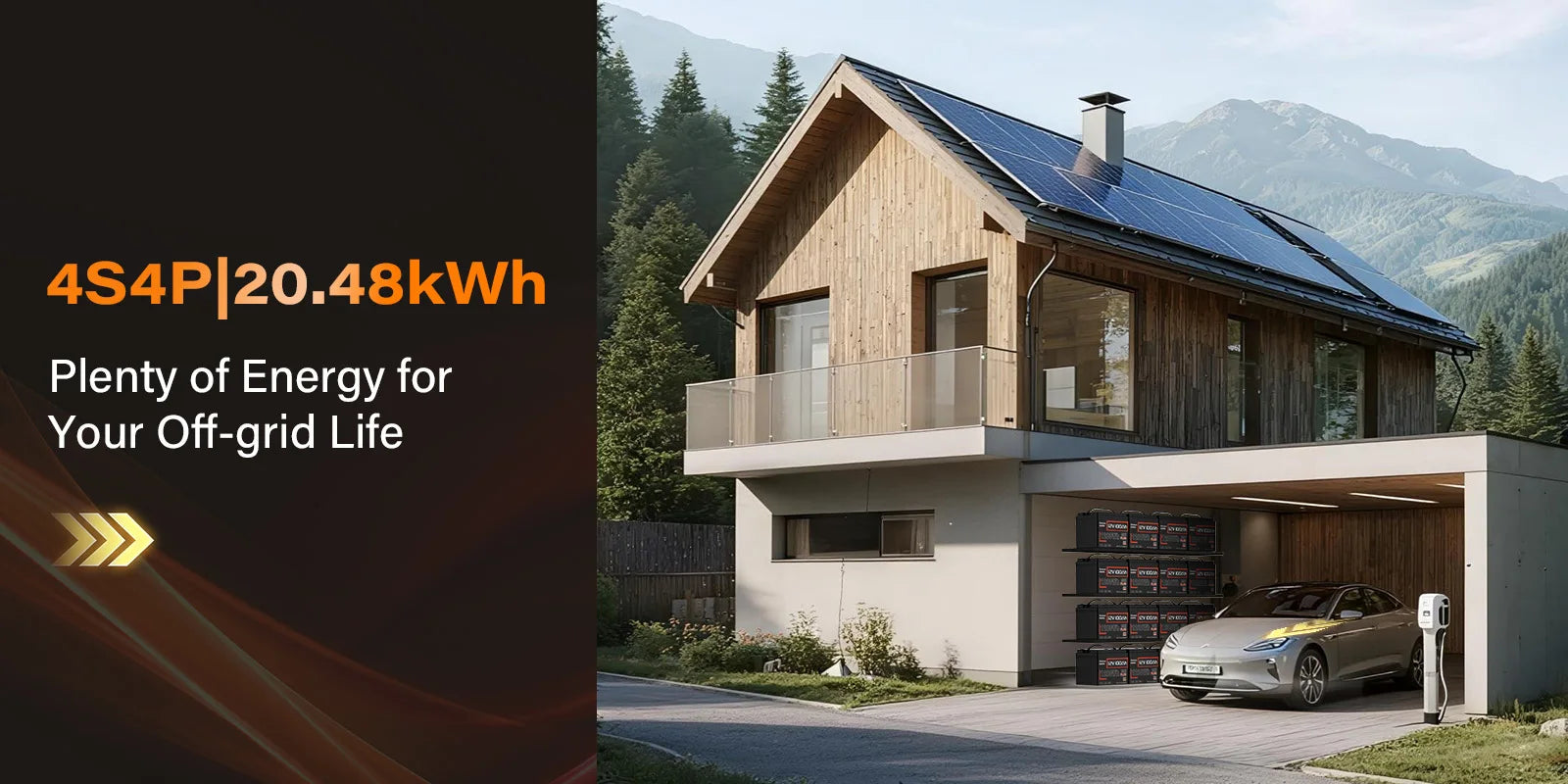

HumsiENK deep cycle battery 12V is manufactured using A+ Lithium Iron Phosphate cells. The internal cells are UL tested and FCC, CE certified, IP67 waterproof, providing a higher density up to 15000 cycles and higher safety. Supports 4S4P configuration, enabling up to 48V a massive 20.48kWh energy system.

Wide Application

Ideal for home energy storage, UPS backup power, RV, camper, golf cart, trolling motor, yacht, solar system, digital/CCTV camera, DIY project, etc. Versatile solution for both leisure and professional use.

12V 100AH LiFePO4 Battery 100A BSM GP24 Specifications:

Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Energy:1280Wh
Cycle Life: ＞8000 cycles
Self Discharge Rate: <3%/Month
Charge Voltage: 14.6±0.2V
Standard/Maximum：20A/100A
Over-current：300A±50A
Upgrade Parts/Accessories: Grade A
Voltage Protection Board(BMS): Yes
Charging High Temperature Protection:140~158℉
Discharge High Temperature Protection:149~167℉
High Temperature Temperature Protection:Drop by 41~59°F
Battery Pack Certifications:IEC62133/RoHS/CE/FCC/UN38.3/Class9
Water Dust Resistance: IP67
Case Material: ABS
Dimension (L/W/H):10.24 X 6.61 X 8.23inch
Weight(lbs):23.15
Terminal Type: M8
Warranty: 5 Years
Max. Expansion (Parallel & Series)：4 Parallel(Max) 4 Series(Max)
Bluetooth：No Support

12V 100AH LiFePO4 Battery 110A BMS MAX Plus Specifications:

Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Energy:1280Wh
Cycle Life: ＞8000 cycles
Self Discharge Rate: <3%/Month
Charge Voltage: 14.6±0.2V
Standard/Maximum：20A/110A
Over-current：300A±50A
Upgrade Parts/Accessories: Grade A
Voltage Protection Board(BMS): Yes
Charging High Temperature Protection:140~158℉
Discharge High Temperature Protection:149~167℉
High Temperature Temperature Protection:Drop by 41~59°F
Battery Pack Certifications:IEC62133/RoHS/CE/FCC/UN38.3/Class9
Water Dust Resistance: IP67
Case Material: ABS
Dimension (L/W/H): 11.78 X 7.63 X 7.77inch
Weight(lbs):26.45
Terminal Type: M8
Warranty: 5 Years
Max. Expansion (Parallel & Series)：4 Parallel(Max) 4 Series(Max)
Bluetooth：No Support
