SPECIFICATIONS



Battery Capacity: 100



Brand Name: dumfume

Cycle Life: ≥ 4000 cycles (80% capacity)

Energy: 2560Wh

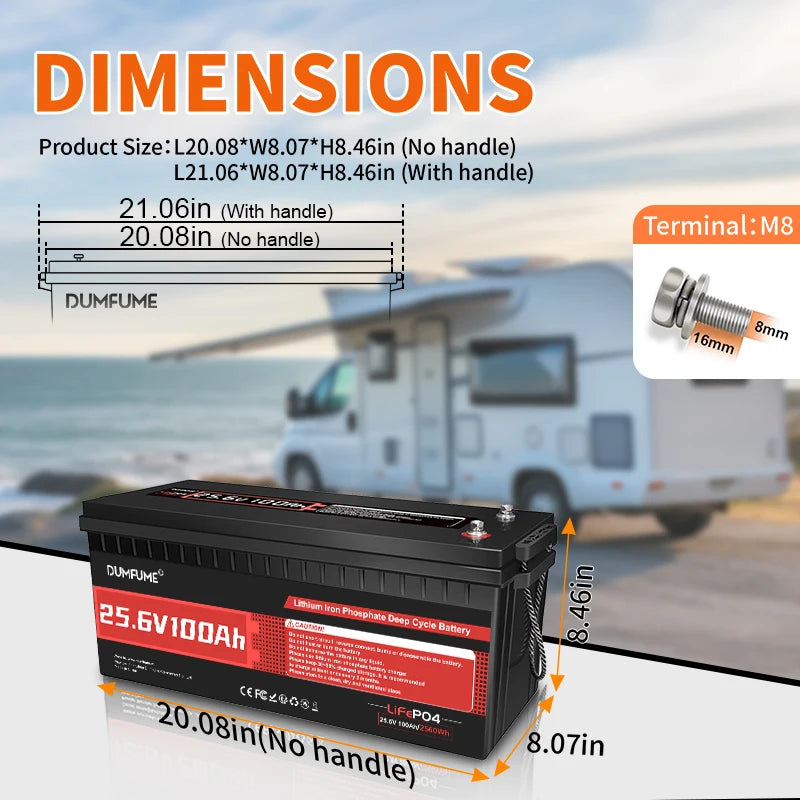

Item Height: 8.46

Item Length: 20.08

Item Type: LiFePO4

Item Weight: 20.2

Item Width: 8.07

Max Charge/Discharge Current: 100A

Model Name: 25.6V 100A

Overcharge protection voltage: 29.2V

Rated Voltage: 24 V

Recommended Charge Current(A): 20-50A

Recommended Charging Voltage: 29.2V

Recommended Discharge Current: 0-60A

Series/Parallel: Maximum 2S4P

Shipping Voltage: 13.1-13.2V

Storage Temperature: -10~45 degrees

Terminal Bolt Size: M8



Product Details:

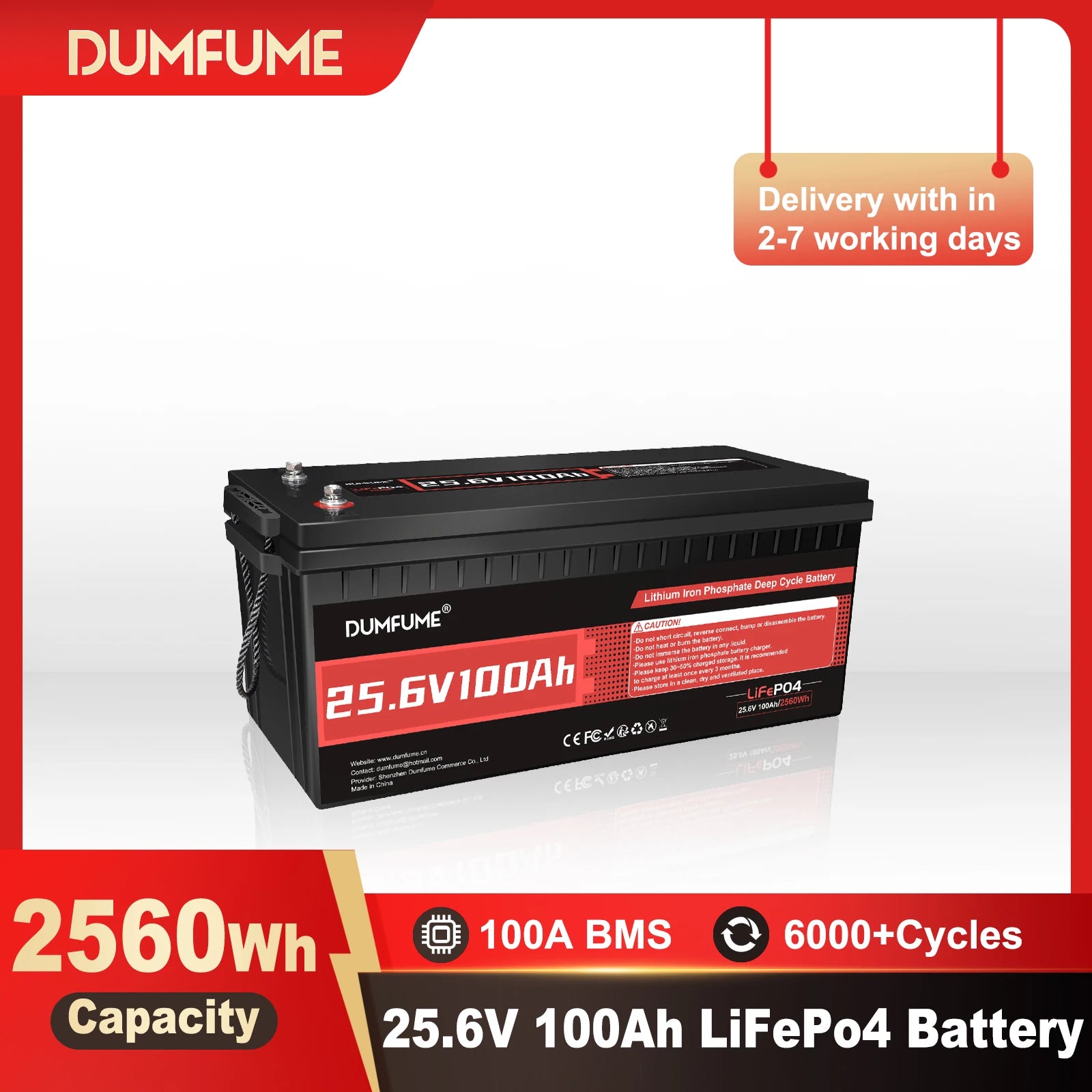

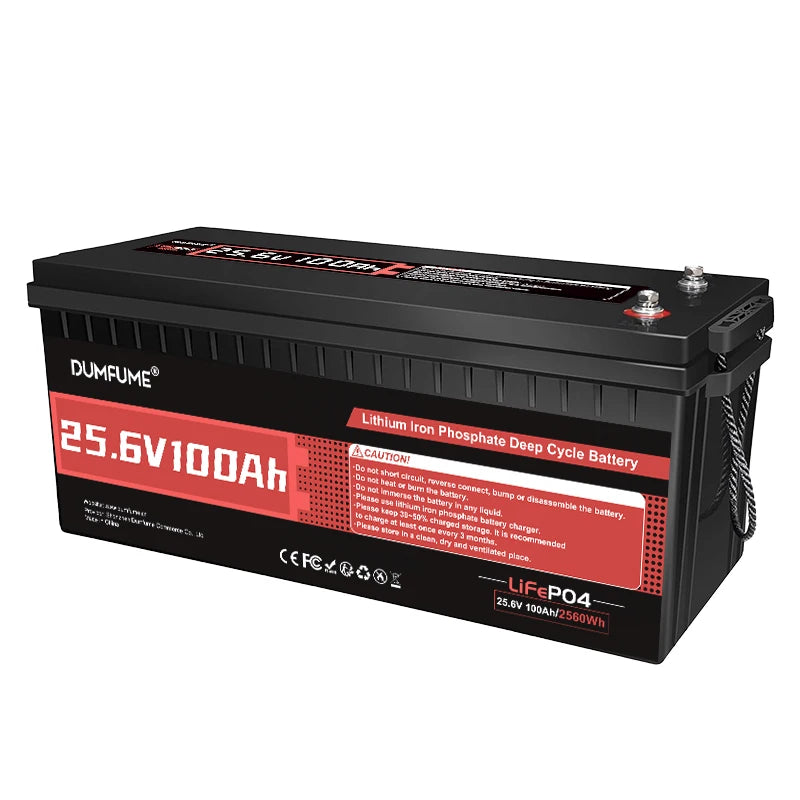

1.Higher Energy Density & Stable Performance: DUMFUME 24V 100Ah LiFePO4 battery delivers 2.56kWh of energy, equivalent to two 12V 100Ah batteries. The 24V higher voltage system ensures stable power output, saving time and cost on wiring while providing longer cycle times and improved battery protection.

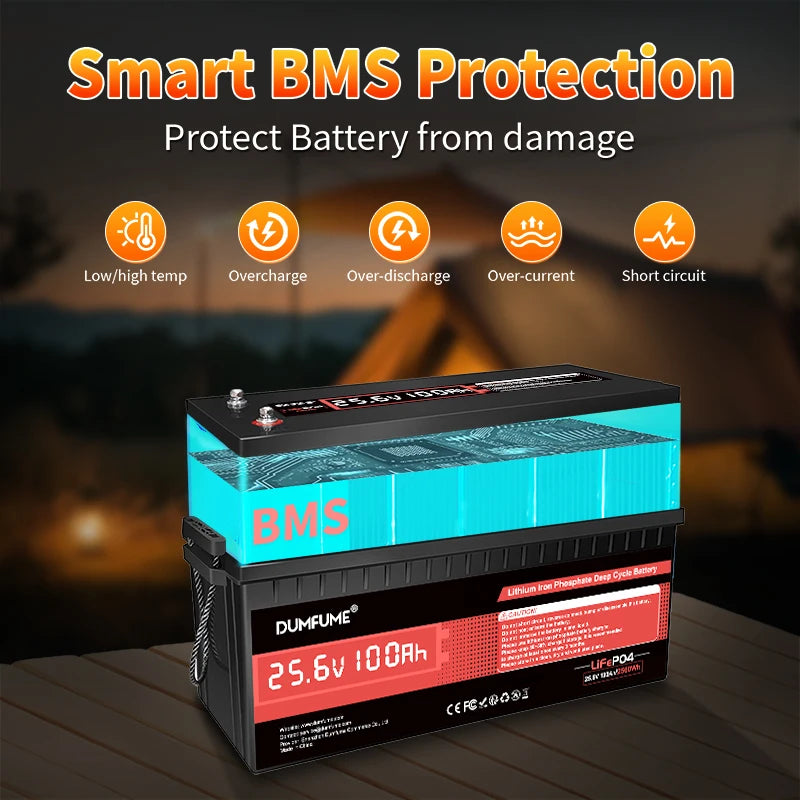

2.100A BMS with Grade-A Cells for Reliable Protection: DUMFUME LiFePO4 battery 24V 100Ah Equipped with a 100A Battery Management System, this battery safeguards against overcharge, over-discharge, and short circuits. It provides continuous power up to 2560W, ensuring longevity and safe operation for various applications.

3.Longer Lifespan & Lightweight Design: DUMFUME 24V 100Ah LiFePO4 lithium battery Weighing just 48.06 lbs, this LiFePO4 battery is one-third the weight of traditional lead-acid batteries. Its 10-year lifespan and 4000+ deep cycles at 100% DOD make it a reliable and portable energy solution for both outdoor and indoor applications.

Note：Under various temp/humidity measurement methods and instruments, voltage and current may deviate by 1%~5%. charge/discharge battery once every 6 months to prevent damage from disuse.Please feel free to contact Us if you encounter any problems during use!
