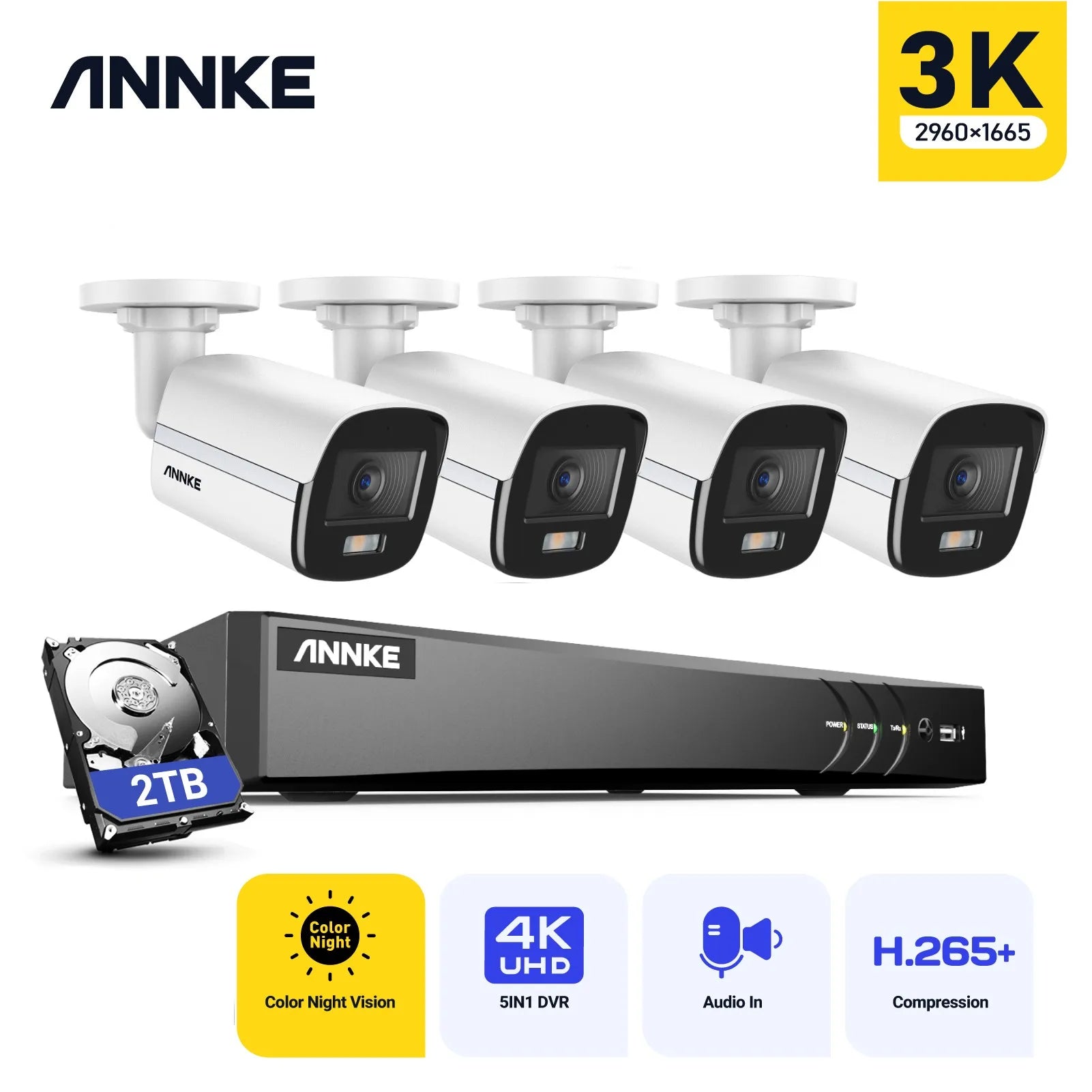

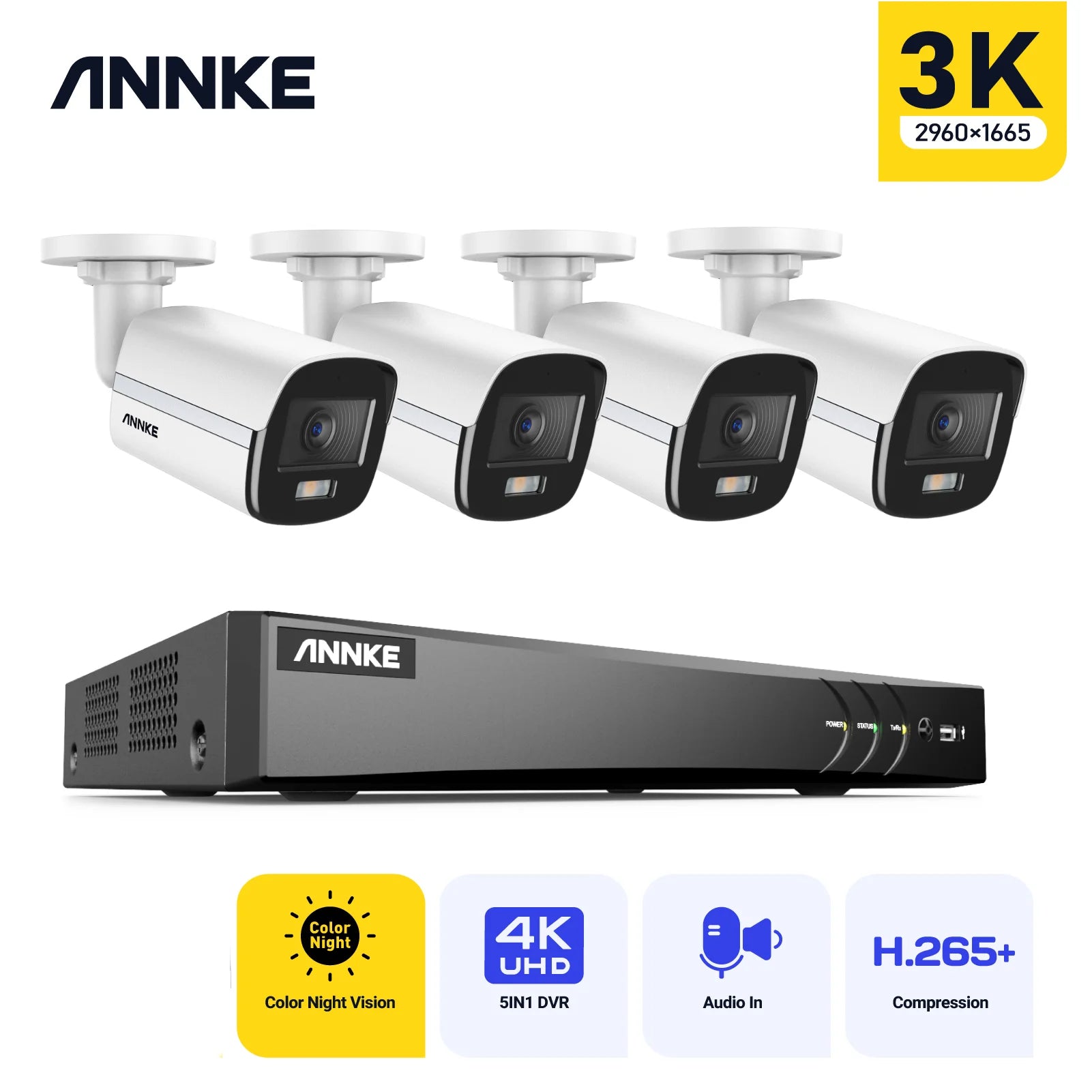

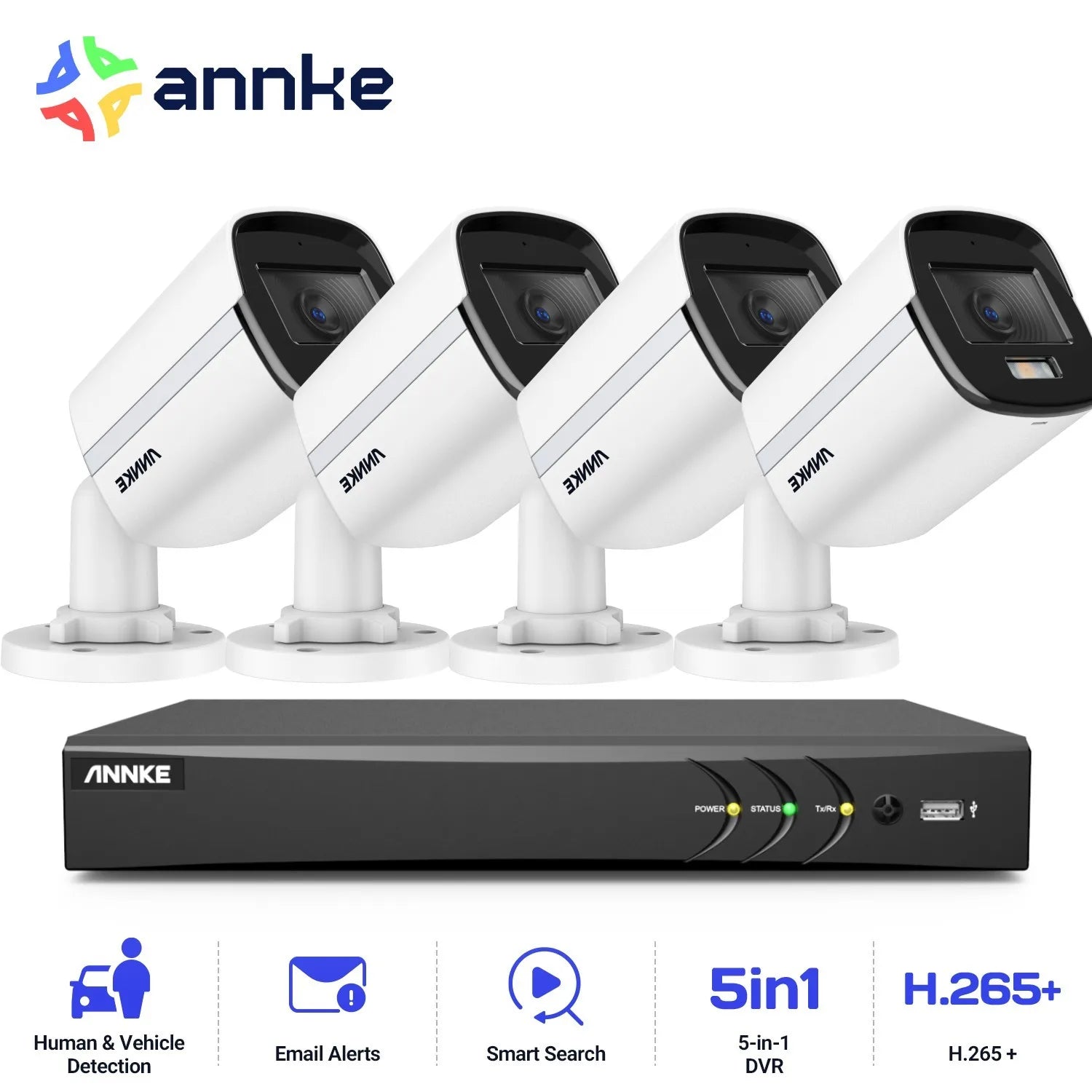

SPECIFICATIONS



Audio: Built-in mic



Brand Name: ANNKE

Cable Length: 18m

Certification: CE,FCC

Color: White

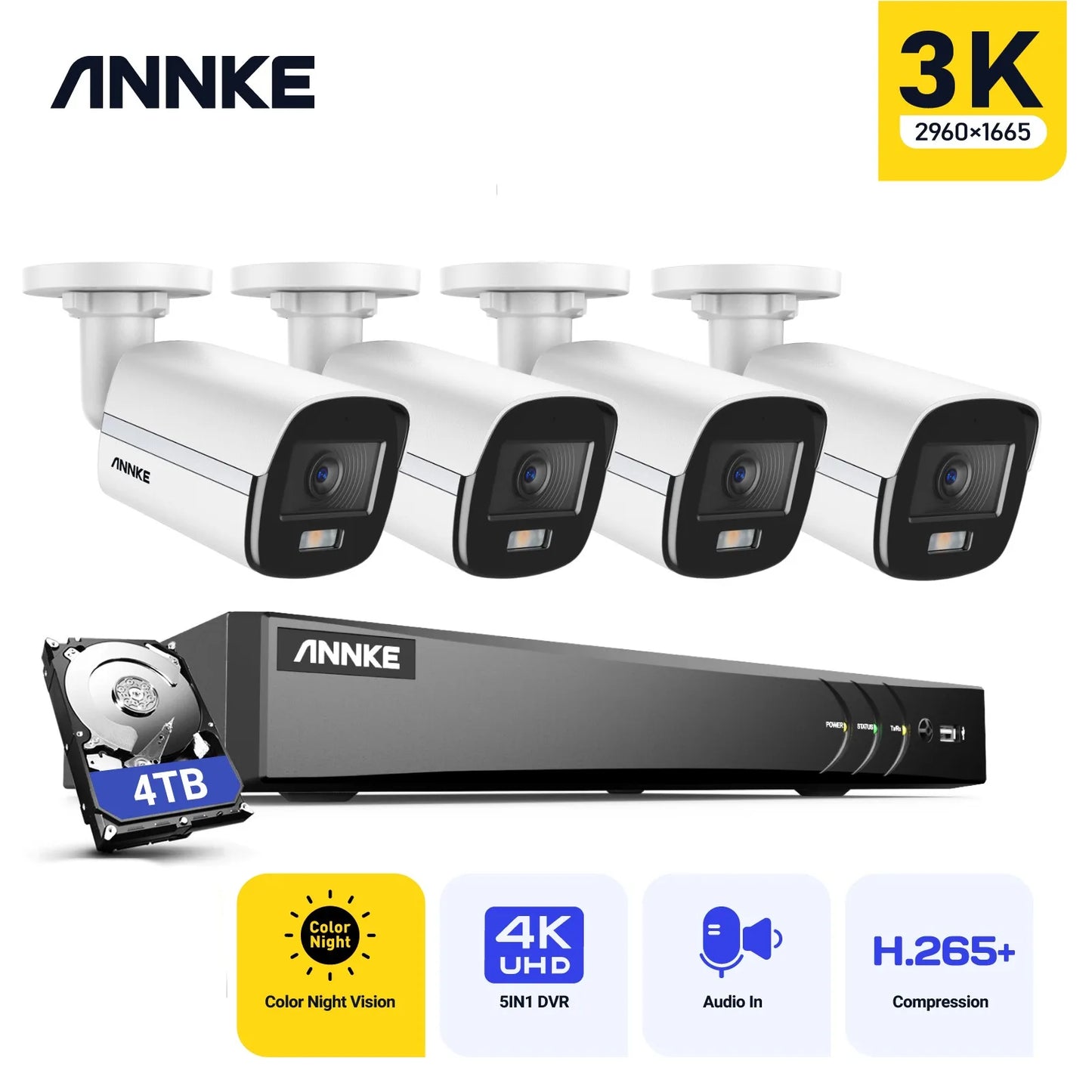

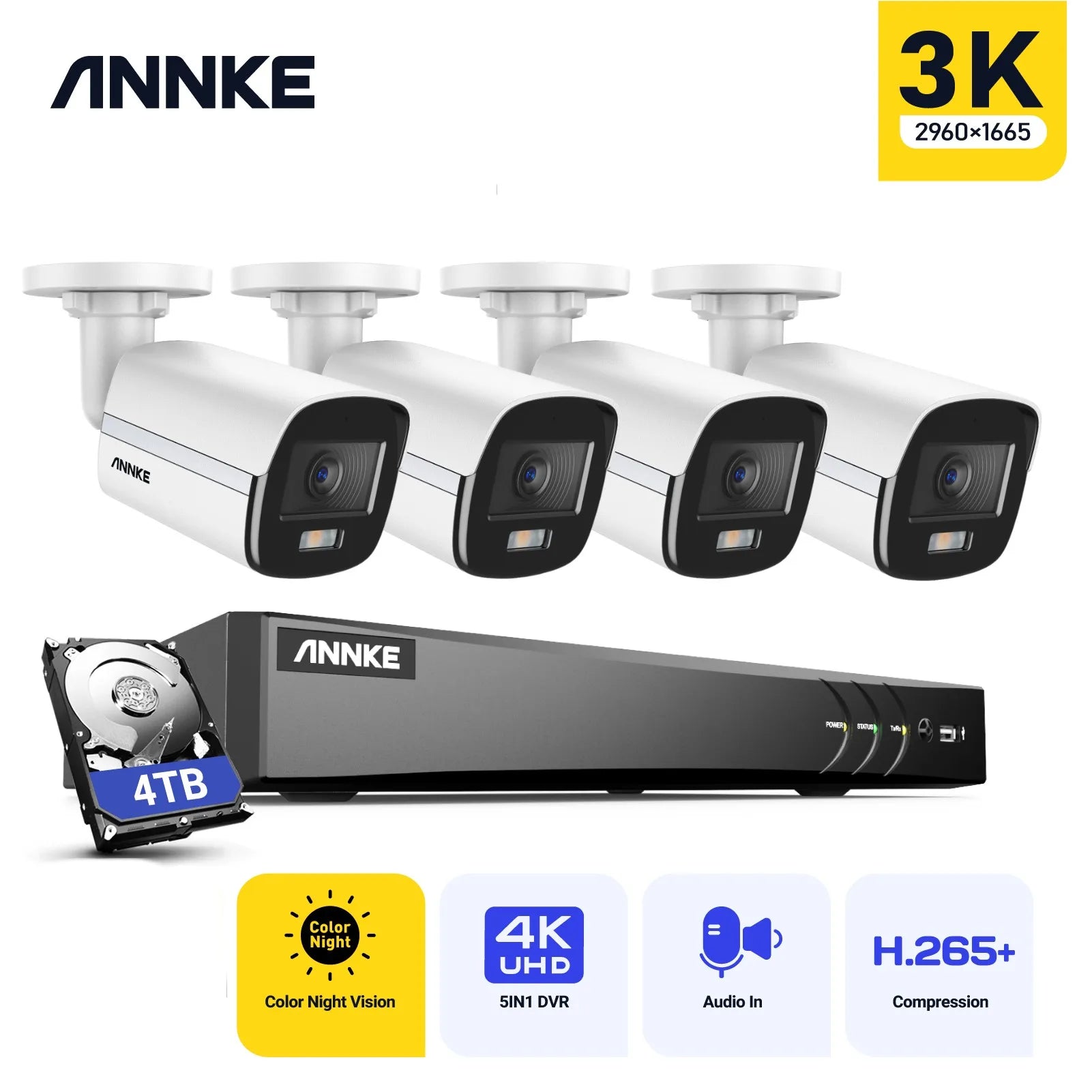

Feature 1: CCTV Camera System

Feature 10: 5MP SECURITY CAMERA SYSTEM

Feature 11: 5MP surveillance system

Feature 12: ANNKE 5MP

Feature 2: Security Camera System

Feature 3: CCTV Video Surveillance

Feature 4: Video Surveillance Kit

Feature 5: camera surveillance

Feature 6: cctv surveillance system

Feature 7: VIDEO SURVEILLANCE SYSTEM

Feature 8: security video system

Feature 9: CCTV Camera System

Housing: Matal & Plastic

IPC Playback Resolution: Up to 8MP

IR Cut Filter: Yes

Image sensor: 3K CMOS Image sensor

Indoor/Outdoor: Indoor/Outdoor

Lens: 2.8mm

Max Playback Channel: 8CH

Model Number: DW81KD-R1CY

PCS of Camera: 4PCS

Resolution: 5MP

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Weatherproof Rating: IP67

Wide Dynamic Range: Digital WDR





DVR:

· 4K(8MP) high definition live viewing

· 4K(8MP) recording & playback

· Deep learning-based motion detection 2.0 for all analog channels

· Deep learning-based perimeter protection

· Advanced H.265+ Video Compression

· Aduio via coaxial cable

· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1

· Supports iPhone、iPad、Android mobile remote monitoring

Camera:

· High quality imaging with 3K, 2960 × 1665 resolution

· 2.8 mm fixed focal lens@F1.2

· High quality audio with audio over coaxial cable, built-in mic

· Up to 20 m white light distance for bright night imaging

· One port for four switchable signals (TVI/AHD/CVI/CVBS）

· Water and dust resistant (IP67)

· High quality audio with audio over coaxial cable, built-in mic

ANNKE-Only Acme Color Night Vision

Say goodbye to boring black and white images or blurry colors of night vision captured by traditional cameras. Instead, you can paint the dark night into a colorful world of 5MP, even in 0.001 lux conditions without ambient lighting, or 0 lux with the supplemental light.

Audio Recording with Built-in Microphone

The camera's built-in microphone supports coaxial transmission, allowing you to hear and record clear, crisp audio without using additional cables to power the microphone.

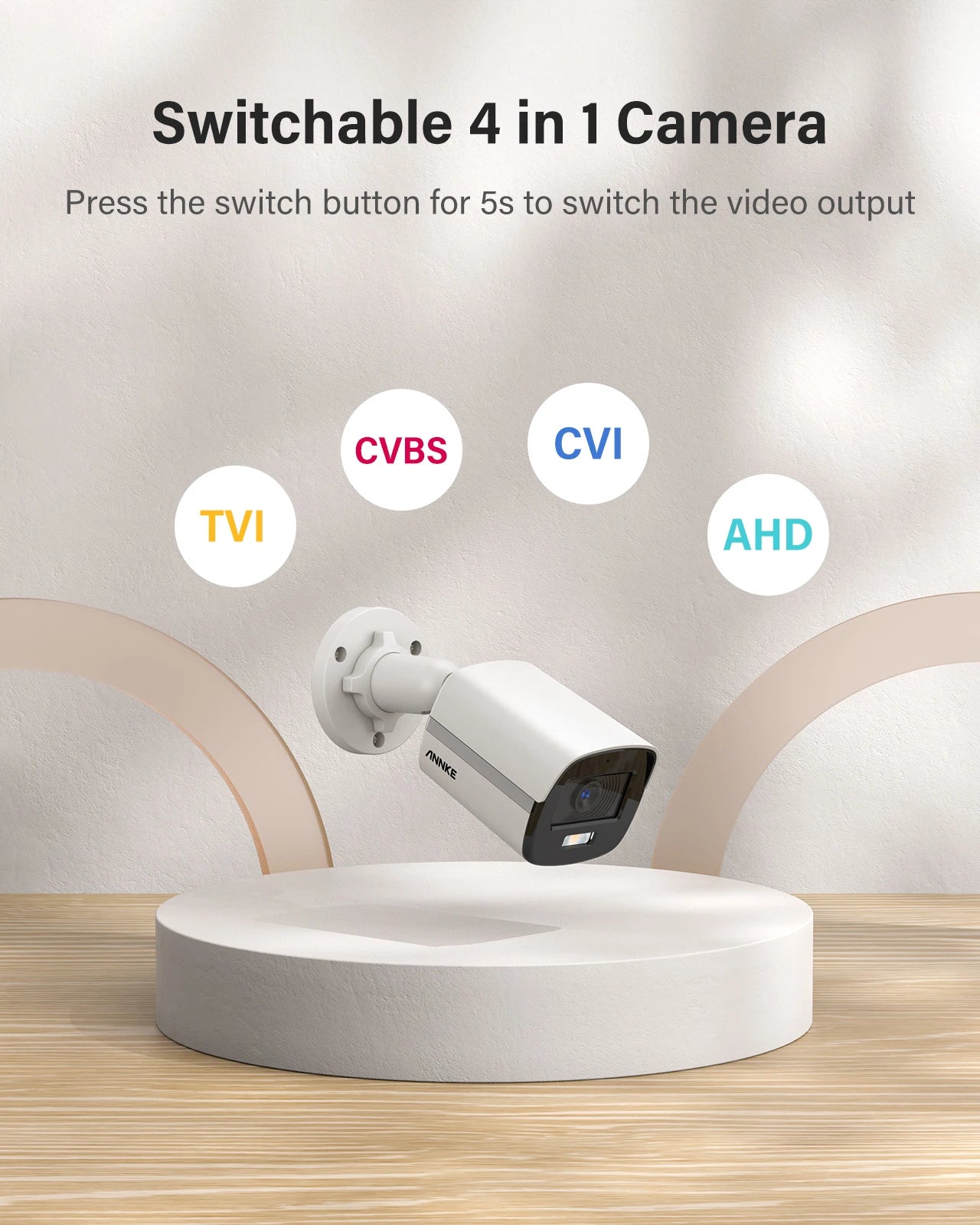

HD TVI/CVI/AHD/CVBS 4 in 1

One port for four switchable signals (TVI/AHD/CVI/CVBS), you can choose from a wide range of compatibility with the camera's selectable output.

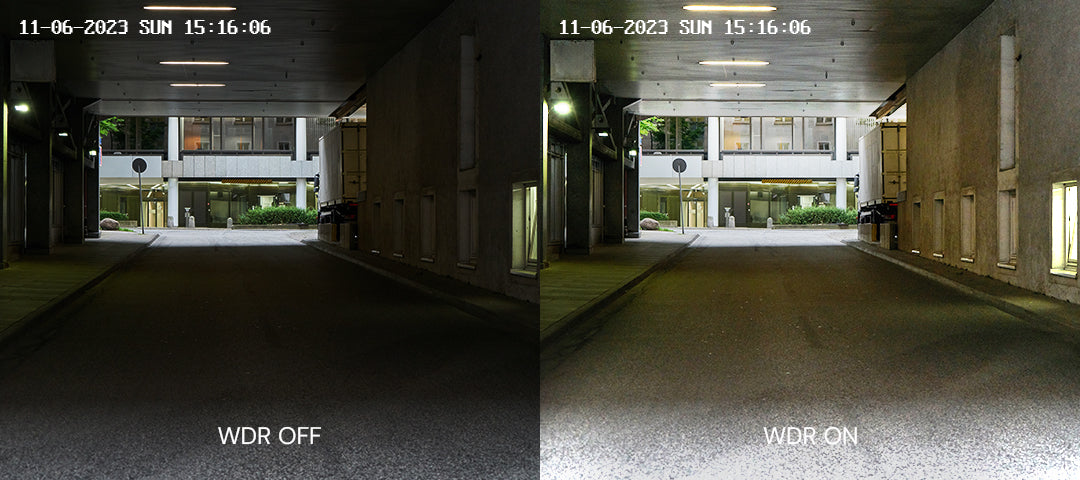

Premium Image Enhancement Technologies

The wired camera adopts 4 incredible image enhancement technologies – digital WDR, 2D DNR, BLC – to deliver stunning 3K Super HD clarity. So whether you’re watching the live stream during the day or under the moonlight, you’ll get a new level of detail and color that wasn’t possible before.

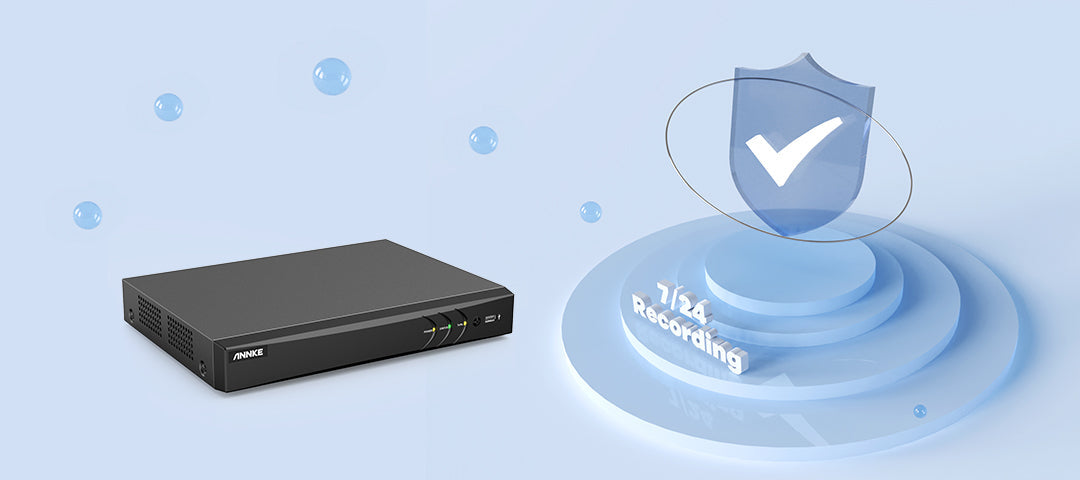

Works with ANNKE NVRs for 24/7 Recording

This IP video camera can work standalone for your unlimited live stream. You can also connect the camera to an ANNKE Enhanced 4K PoE NVR with a single Ethernet cable for 24/7 recording.

Analog HD Camera
Camera	Image sensor	3K CMOS Image sensor
	Video Resolution	2960 (H) × 1665 (V)  (16:9)
	Signal System	PAL/NTSC
	Frame Rate	TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps CVI: 4 MP@25 fps/30 fps CVBS: PAL/NTSC
	Lens	2.8mm
	Min.Illumination	Color:0.001 Lux @ (F1.0,AGC ON),0 Lux with white light

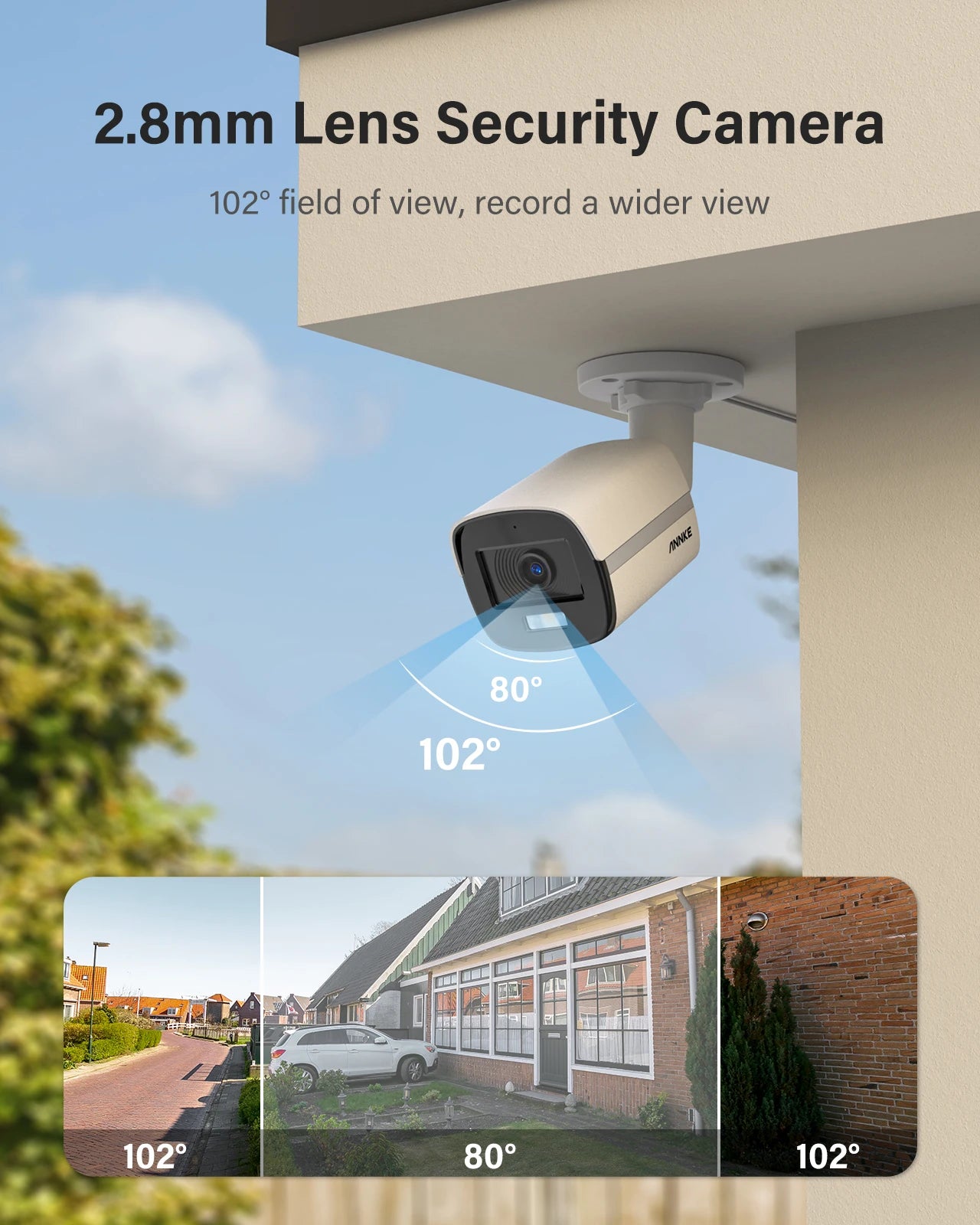

	Angle of View	Horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°
	Supplement Light type	1 white Light
	Supplement Light Range	white Light : Up to 20 m
	Wide Dynamic Range	Digital WDR
	Noise  reduction	2D-DNR
	Audio	Built-in mic
	Day/Night Mode	Color
	Video Output	BNC, switchable TVI/AHD/CVI/CVBS
General	Housing	Plastic
	Color	White
	Operating Power	12 VDC ± 25%
	Consumption	Max. 2.9 W
	Operating Temperature	-40 °F – 140 °F /-40 °C – 60 °C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP67
	Dimension (L x W x H)	161.1 mm × 70 mm × 70 mm (6.34" × 2.76 " × 2.76")
	Weight	Approx. 238 g (0.52 lb.)



DVR
Video & Audio	Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
	Video Input	8CH Analog HD/Analog + 4CH (up to 12-ch) IP (Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps)
	Video Output	VGA up to 1080p/60 Hz; HDMI up to 4K (3840 × 2160)/30 Hz
	Audio Input/Output	Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)/8-ch via coaxial cable Output:1-ch, RCA (2.0 Vp-p, 1 KΩ)
	Supported Camera Types	Support HD TVI Input: 8 MP@15 fps, 5 MP@20 fps, 3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps Support AHD Input: 5 MP@20 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps; Support HD CVI Input: 4 MP@30 fps, 4 MP@25 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps; Support CVBS Input:PAL/NTSC
	Analog HD Playback Resolution	4K@8 fps/5MP@12 fps/4MP@15 fps/3MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
	IP Camera Input	4-CH (up to 12-ch)
	IPC Recording Resolution	Up to 8MP
	IPC Playback Resolution	Up to 8MP
	Max Playback Channel	8CH
	Motion Detection 2.0	Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.
	Smart event	Line crossing & Intrusion Detection
	ONVIF	Support
Hard Drive	HDD	1 SATA Interface
	HDD Capacity	Up to 10 TB Capacity
External Interface	Network Interface	RJ45 X1(10/100 M/1000 M self-adaptive Ethernet interface)
	RS485	Support
	USB	USB 2.0 X1 + USB 3.0 X 1
General	Working Temperature	14 °F – 131 °F/-10 °C – 55 °C
	Dimensions (W X H X D)	315 X 242 X 45 mm
	Weight (Without Hard Disk)	≤ 2 kg (4.4 lbs.) (Without HDD)
