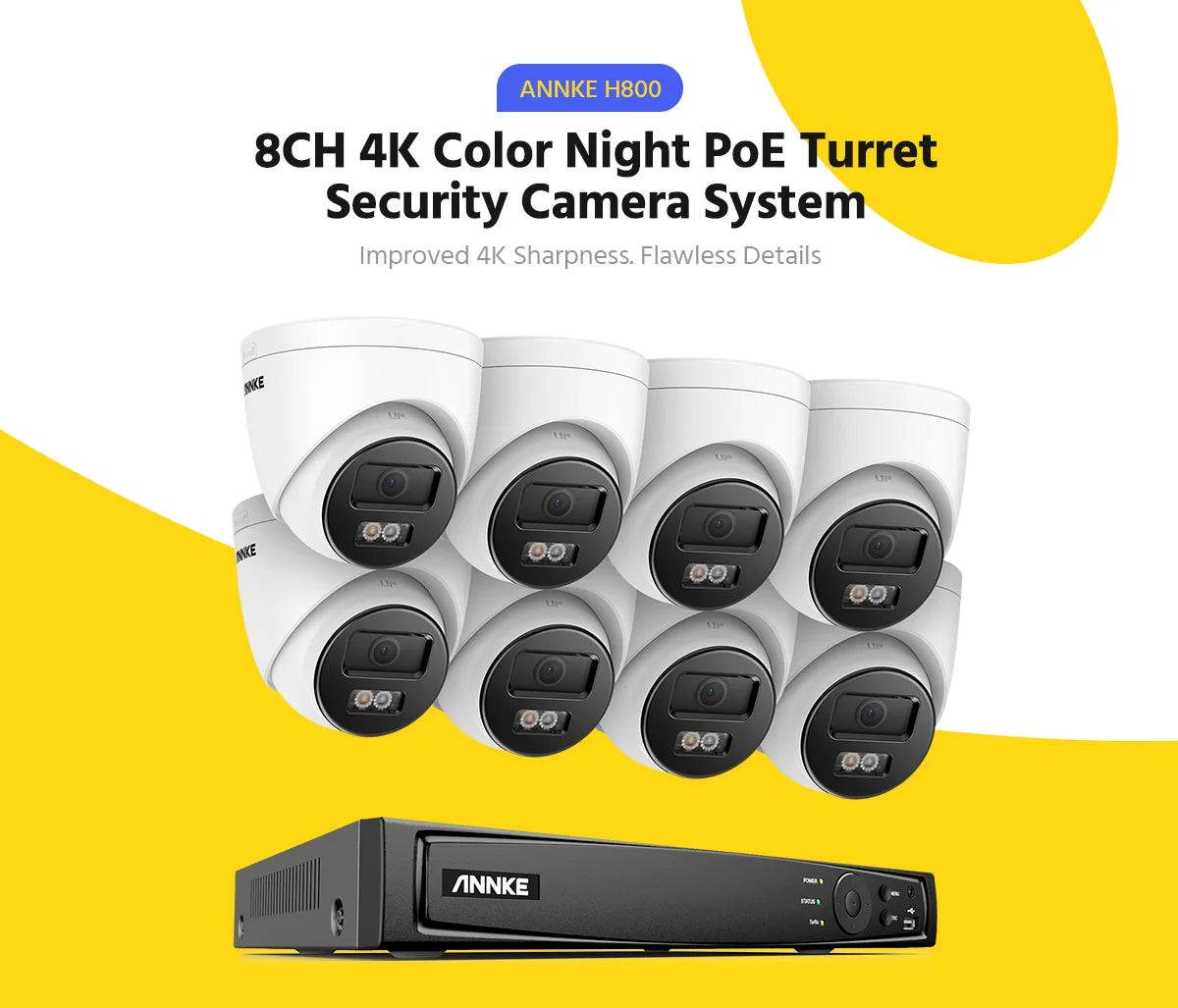

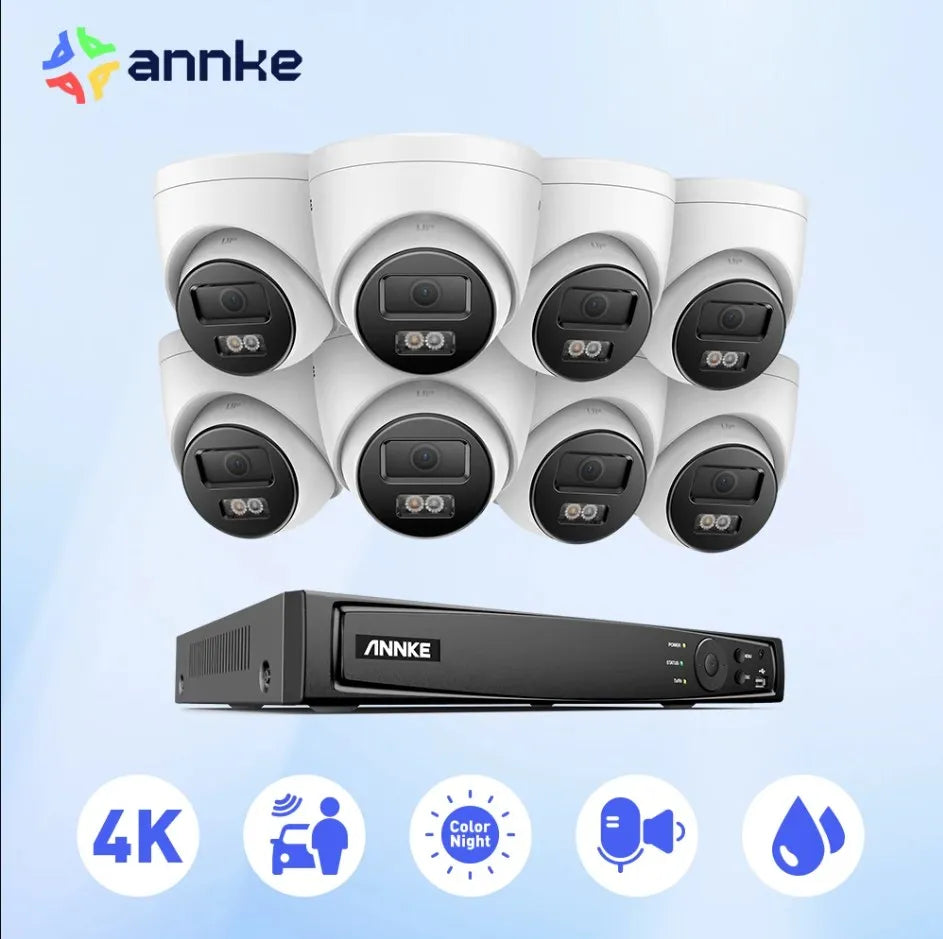

ANNKE 4K Ultra HD POE Surveillance 8CH NVR Recorder W/8MP CCTV Audio Recording 3K LP Cameras
ANNKE 4K Ultra HD POE Surveillance 8CH NVR Recorder W/8MP CCTV Audio Recording 3K LP Cameras
SPECIFICATIONS
Brand Name: ANNKE
PCS of Camera: 2PCS
PCS of Camera: 4PCS
PCS of Camera: 6Pcs
PCS of Camera: 8pcs
Certification: CE
Certification: FCC
TV System: NTSC
TV System: PAL
Video Input: 8 Channel
Cable Length: 30m
Cable Length: 18m
Model Number: N48PAW-I91DM/I51EM
Smart home platform: Other
Resolution: 8MP
Video Compression: H.264+/H.264/H.265/H.265+/MPEG4
Video Output: HDMI Up to 4K,VGA Up to 1080P
Image sensor: 1/2.5" Progressive Scan CMOS
Night Vision Distance: Up to 100ft/30m
Number of Infra-Red LEDs/Lens: 4MM/2.8MM
Wide Dynamic Range/DNR: Digital WDR/3 DNR
IR Cut Filter: YES
Min.Illumination: 0.01
Audio input: Bulit-in Microphone
Feature 1: 8mp poe ip camera
Feature 2: nvr system
Feature 3: surveillance camera
Feature 4: video surveillance 4k
Feature 5: kit video surveillance
Feature 6: poe system
Feature 7: cctv camera
Feature 8: video security system
Feature 9: video surveillance
Feature 10: security camera nvr
Feature 11: VIDEO RECORDER
Feature 12: annke 4k
Feature 13: security camera system
Feature 14: cctv camera security system kit
Feature 15: annke 8mp 4k
Feature 16: annke 5mp
Audio Input: Built-in Microphone, record with audio
Supplement Light Type: Smart Dual-Light, IR, White Light
Supplement Light Range: IR: up to 30 m, wite Light: up to 20 m
NVR Key features:
· Live view, recording&playback up to 12 MP resolution
· Up to 8 channel IP cameras can be connected with built-in PoE inputs
· Advanced H.265+ Video Compression
· Supports iPhone、iPad、Android mobile remote monitoring
· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (40960 × 2160) resolution
· Annke Vision for easy remote view
· Support 4-ch Human and vehicle targets detection

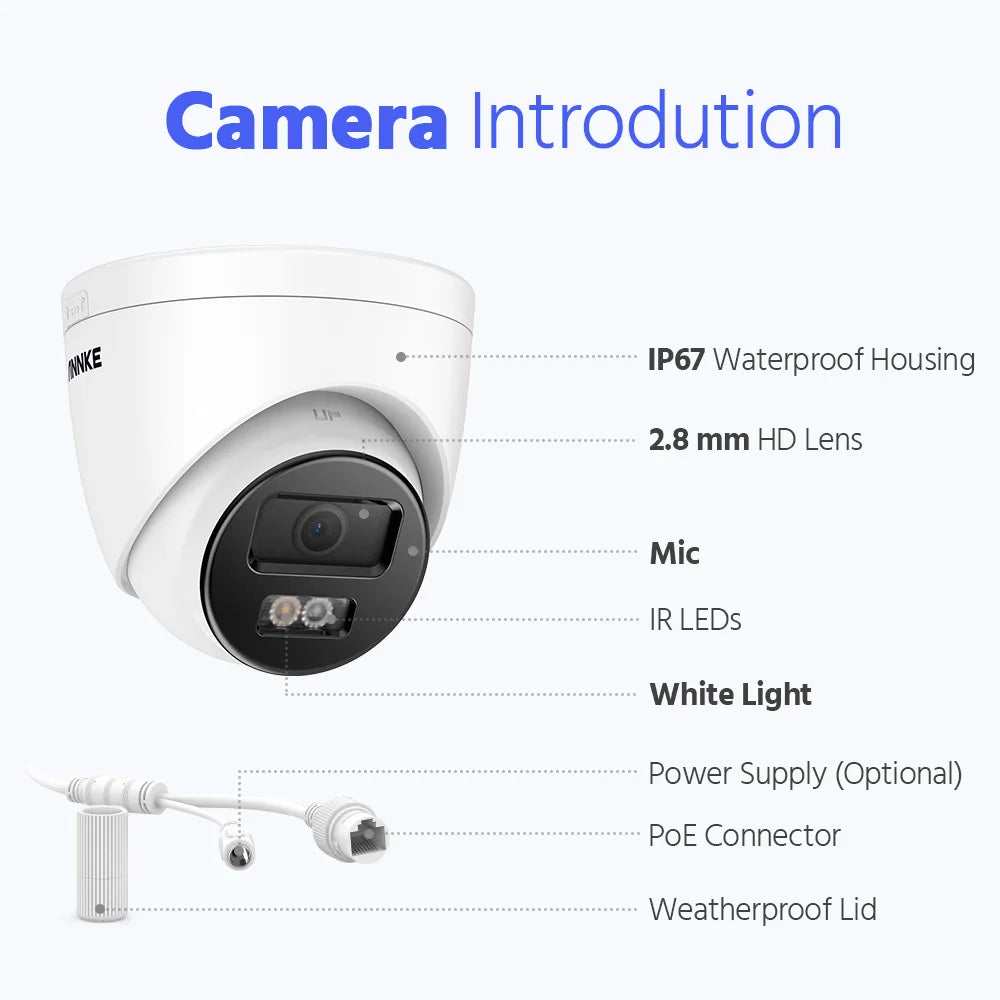

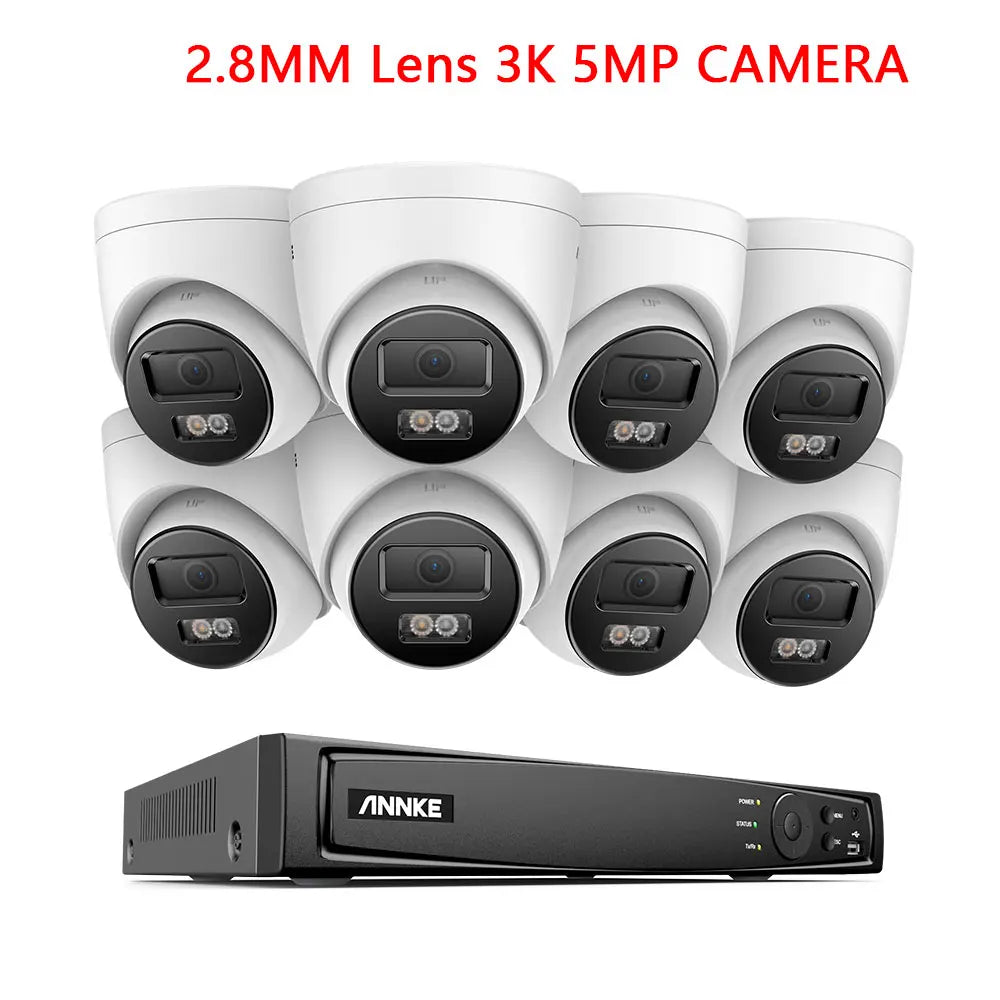

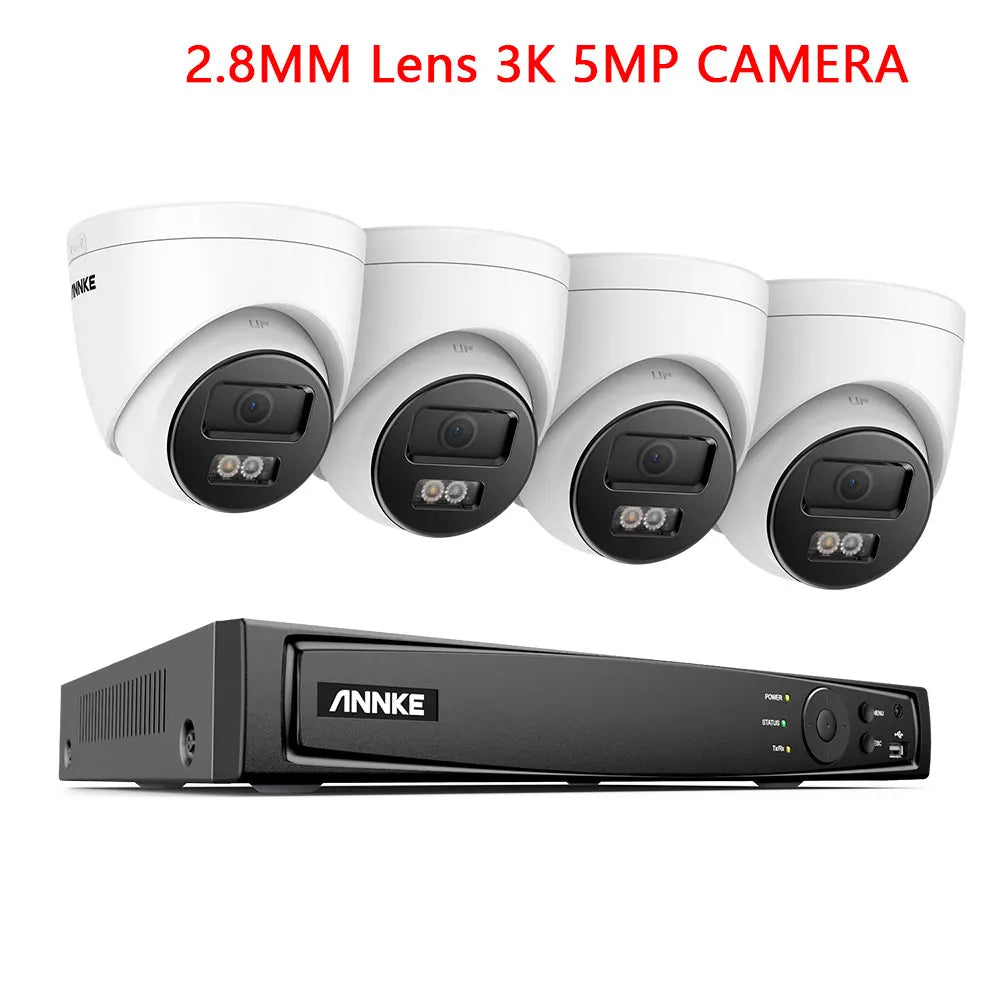

3K 5MP Key features:
★ 3K IR Network Camera with 16:9 image scale
★ 2.8mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Smart Dual-Light: advanced technology with long range
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in microphone for real-time audio security
★ Support on-board storage up to 256 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V

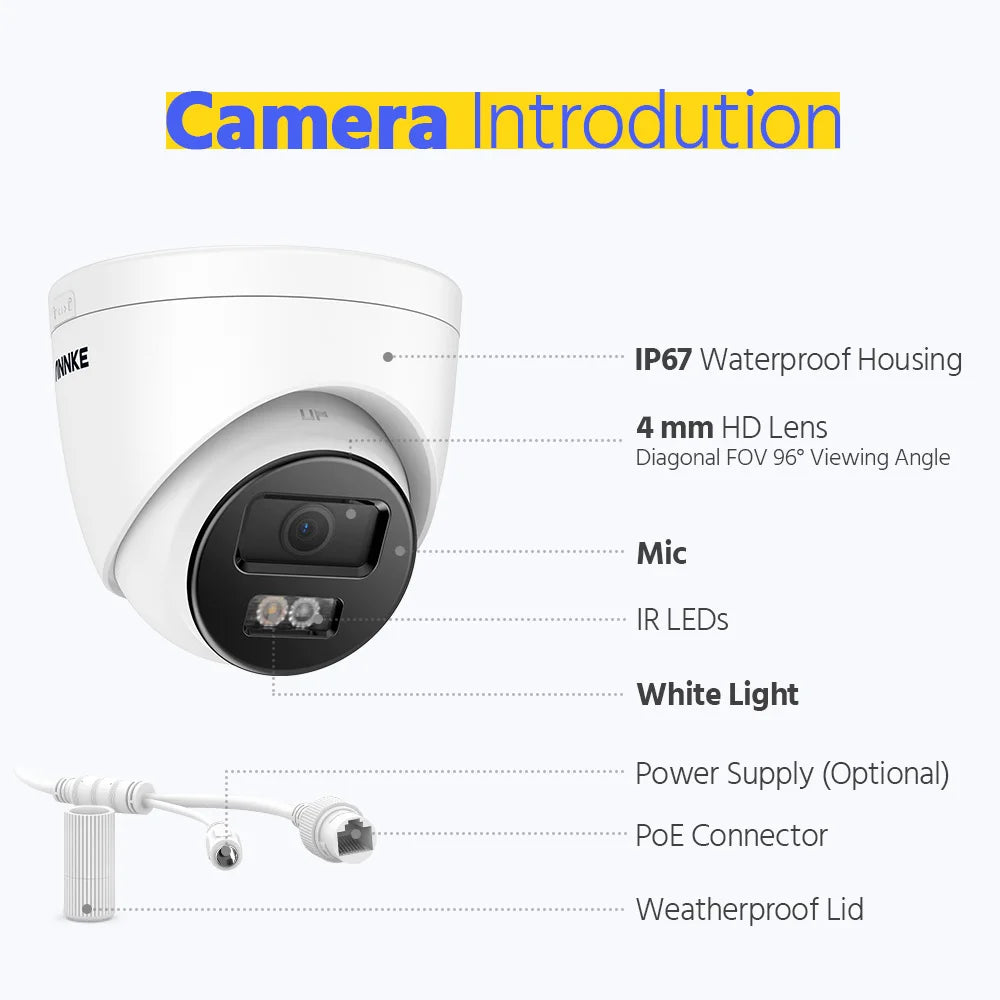

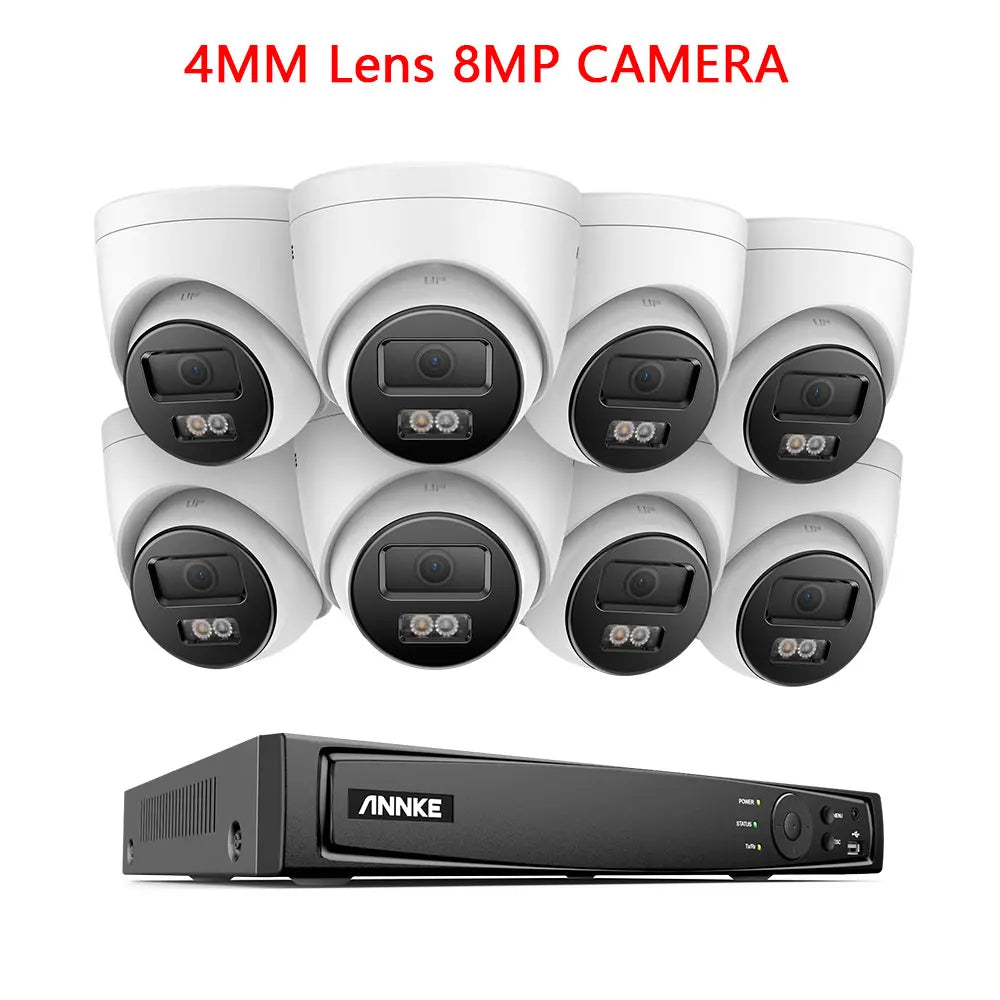

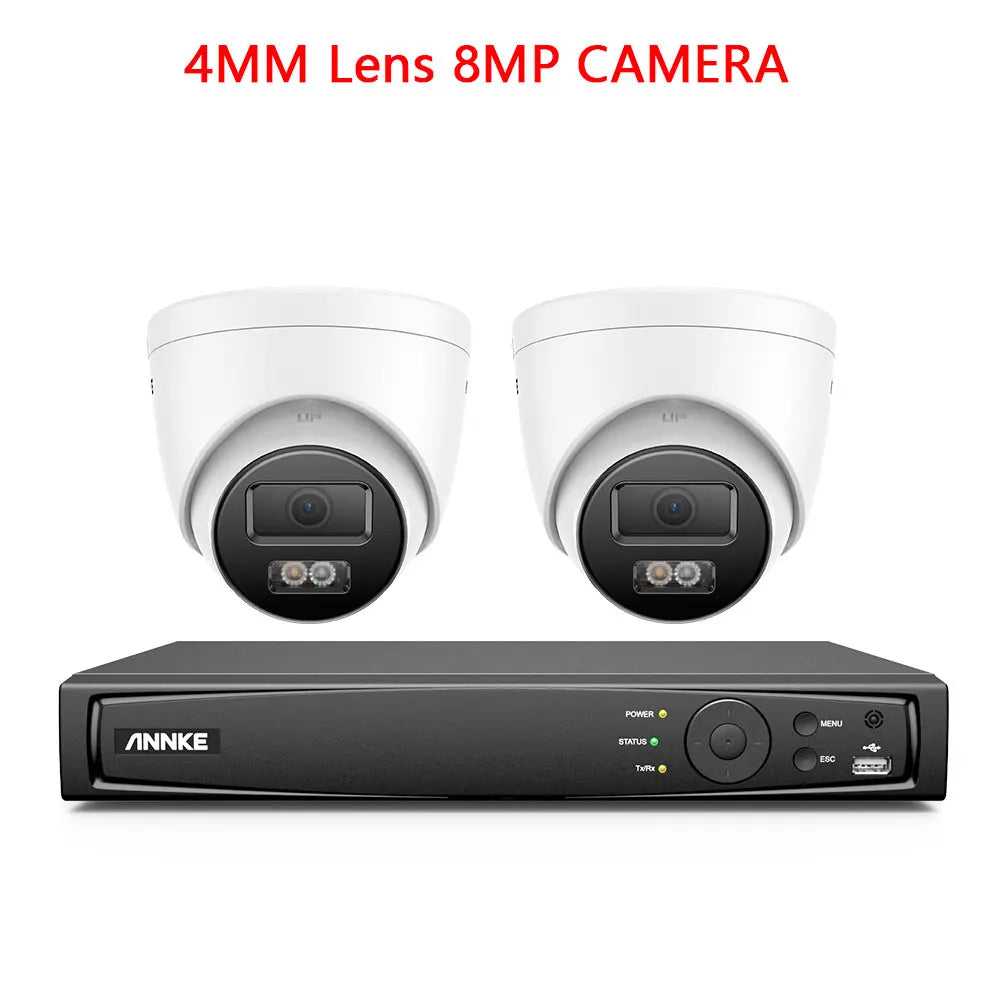

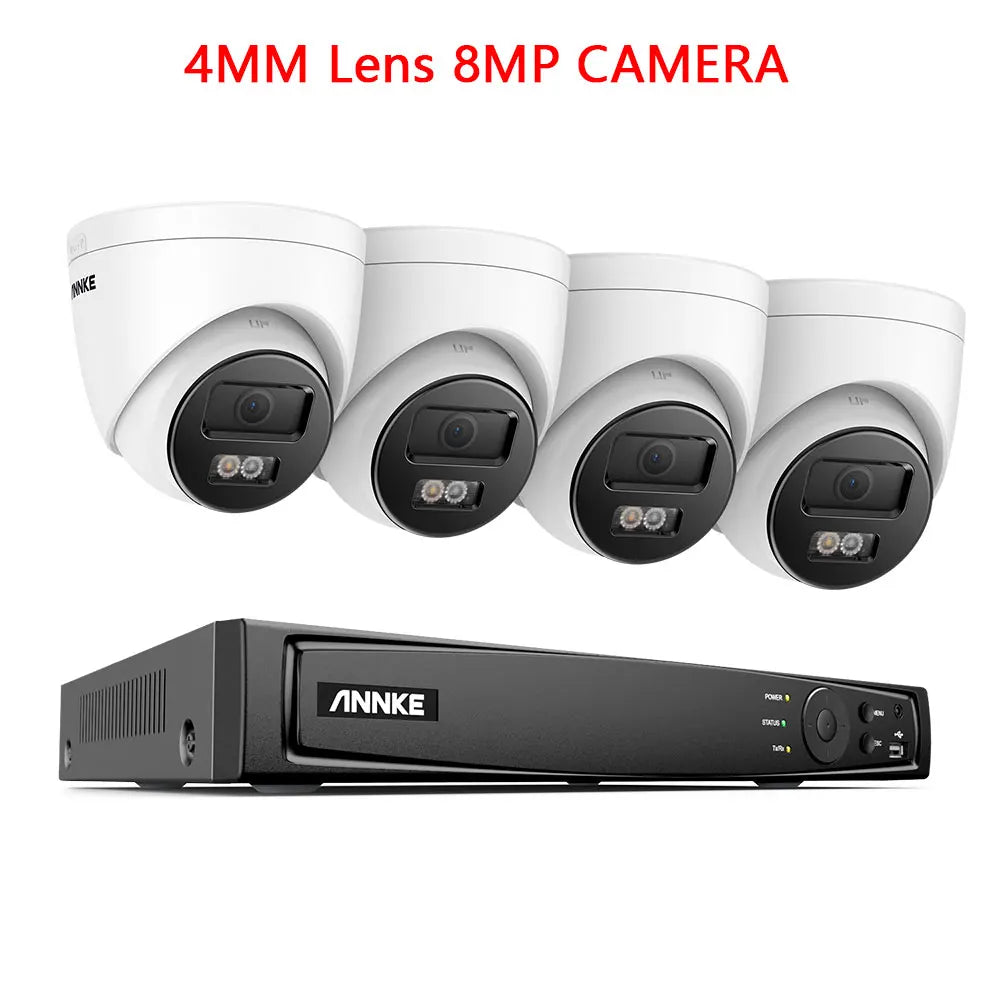

8MP IP Camera Key features:
★ 4K smart dual light turret network camera
★ 4mm@F1.6 lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in microphone for real-time audio security
★ Support on-board storage up to 512 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
[Intelligent dual light]
Smart Dual-Light: advanced technology with long range, IR light works normally at night, and it switches to white light when human or vehicle are detected.

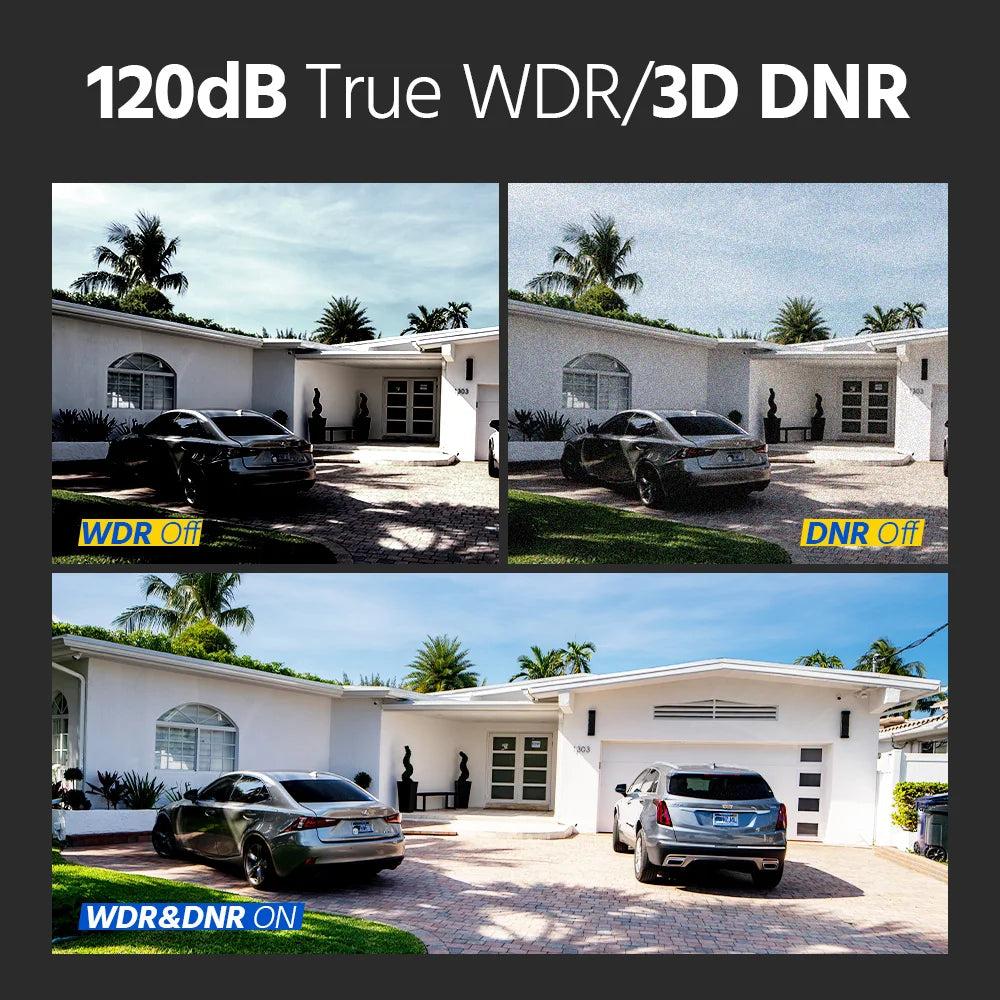

[120 dB True WDR & 3D DNR]
True WDR can be used in various scenes, whether it is backlight or backlight, you can see clearly;
BLC/3D DNR/HLC image enhancement technology, the image is cleaner and the night vision is clearer
[More Videos & Less Bandwidth with H.265+]
The leading H.265+ compress tech enables the 4K system to record longer videos & consume less bandwidth without losing 4K quality, saving you up to 80% storage space
Hi-Fi Audio Recording
The built-in noise-cancelling mic picks up the ambient voice clearly from up to 20 ft away, enhancing the security coverage & the ability to interpret motion events.
[Support Home Assistant & Apple HomeKit]
Besides free ANNKE Vision App for remote access, you may integrate the system to third-party platforms, like Blue Iris, Synology, Milestone, Home Assistant, Apple HomeKit, etc.

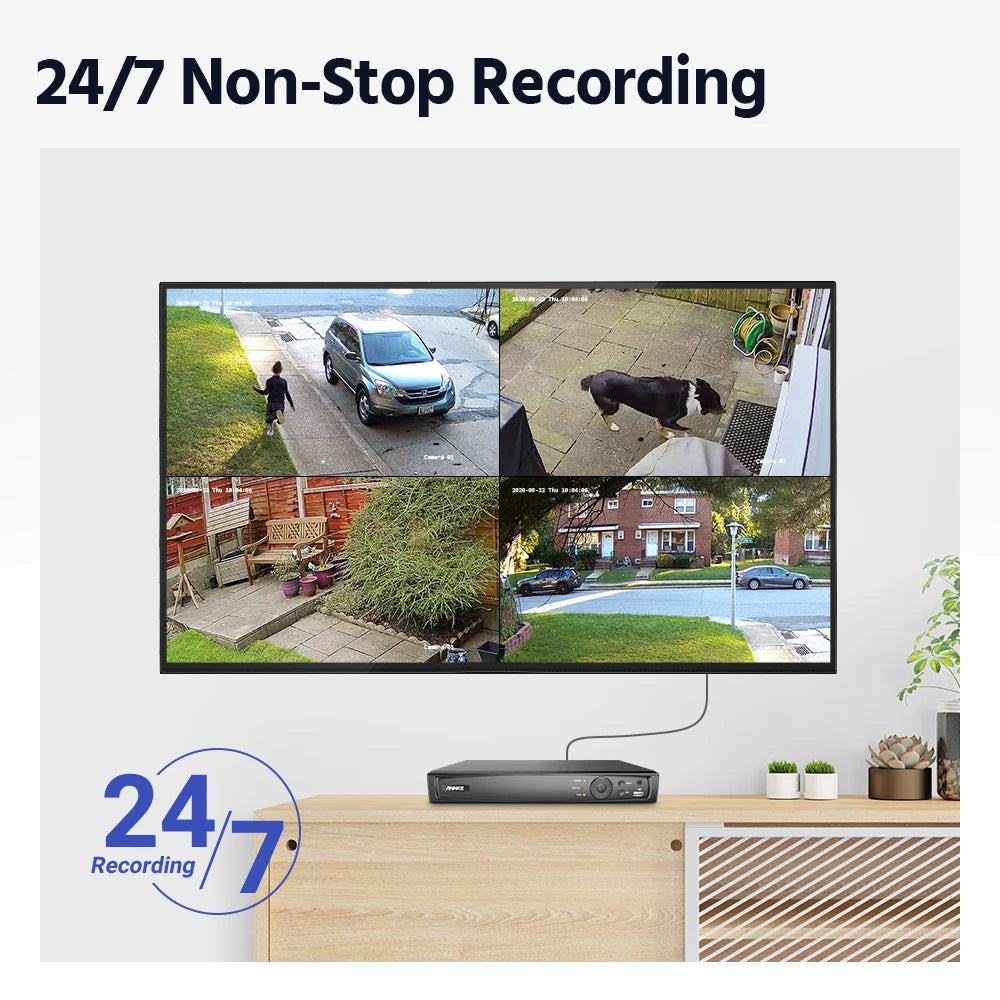

24/7 Monitoring at Every Angle
The versatile PoE security camera system records videos continuously, providing true 24/7 all-around protection for your home, office, garage, supermarket, etc.

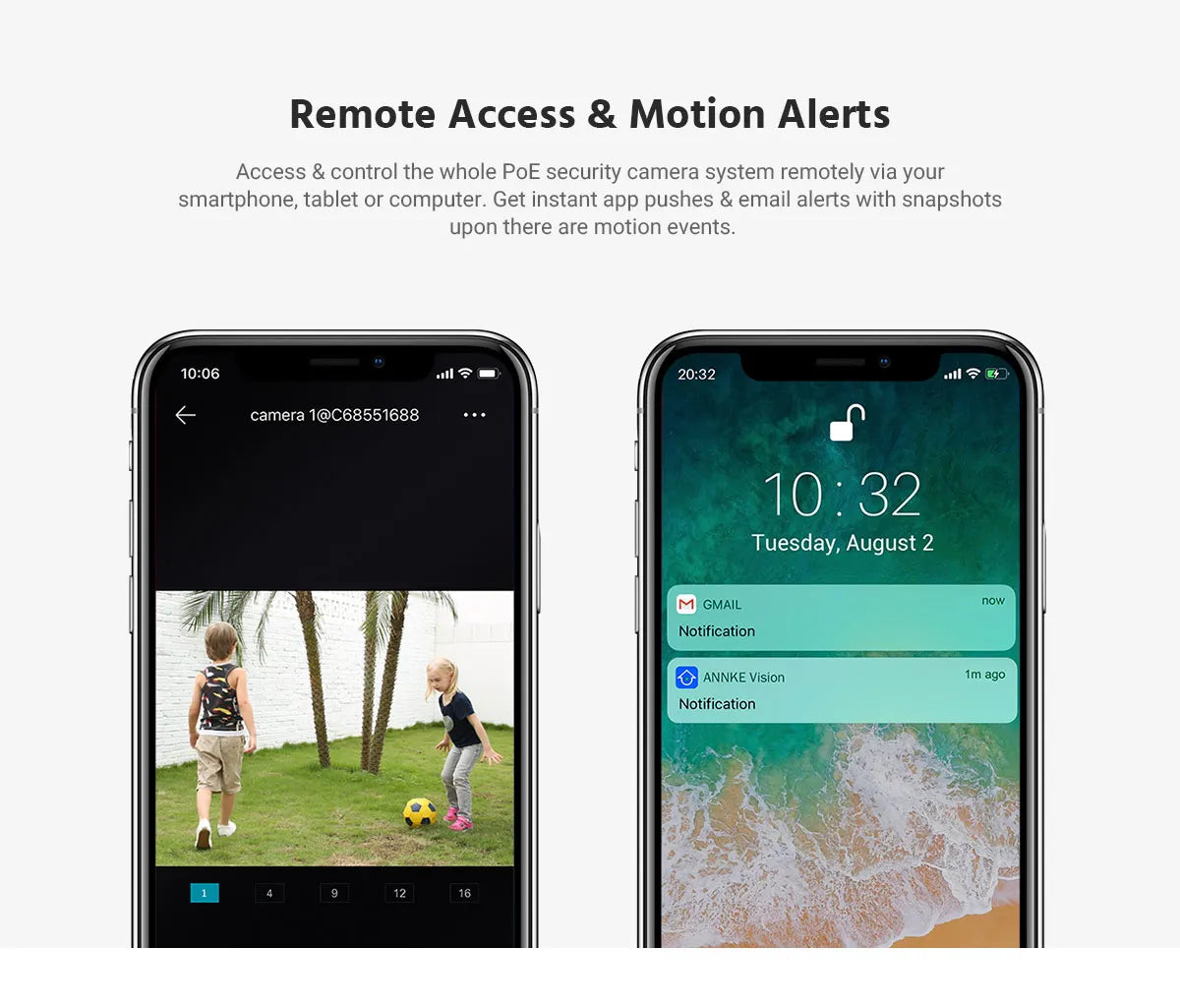

Remote Access and Smart Motion Alerts
Access & control the system remotely with free ANNKE software via 3G/4G/5G or WiFi on your smartphone, tablet or computer when you are in the office or traveling. Get instant app pushes & email alerts with snapshots when there are motion events.
Customized Motion Areas
Customize the specific motion zones, like garage, front door, etc. for much more relevant motion alerts.

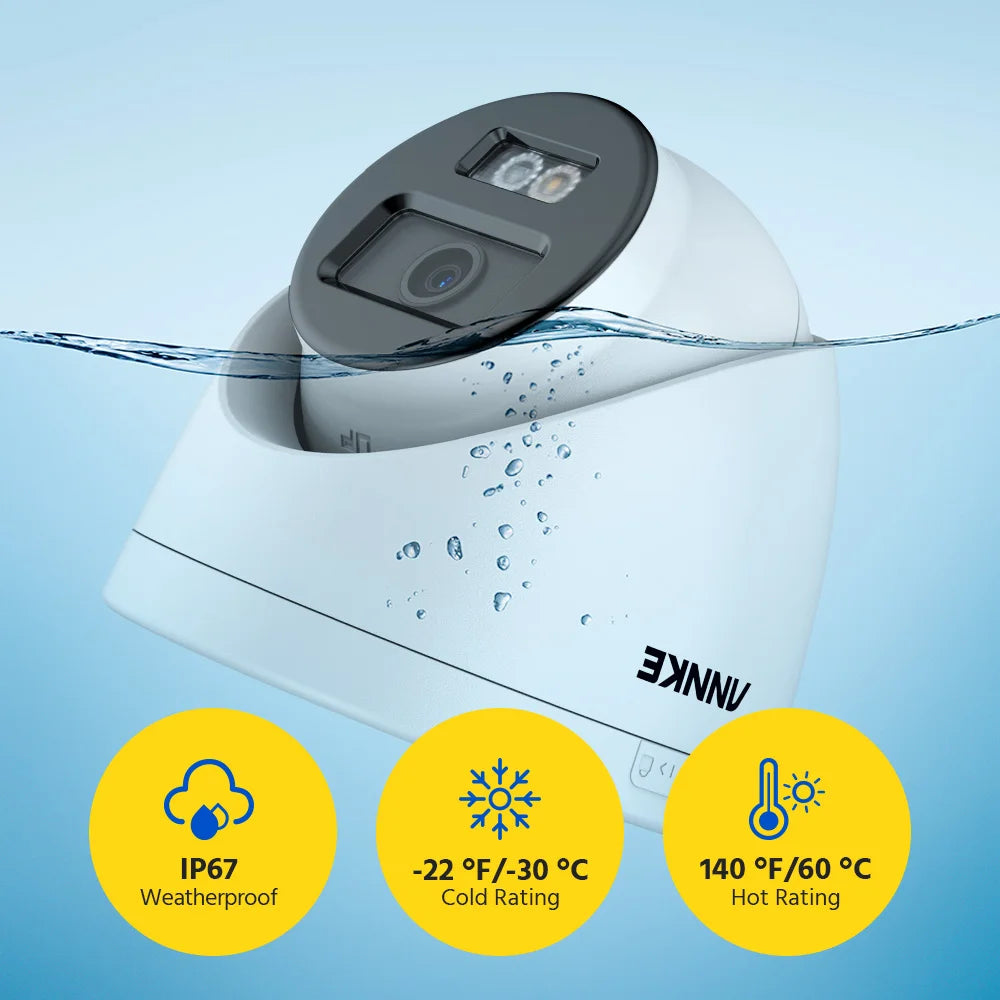

Outdoor IP67 Weatherproof
with IP67 weatherproof rating, the Ethernet camera braves anything, from torrential downpours to freezing/broiling temperatures (-22 °F – 140 °F), perfect for both outdoor & indoor installation. The solid housing provides fast heat dissipation & corrosion resistance.

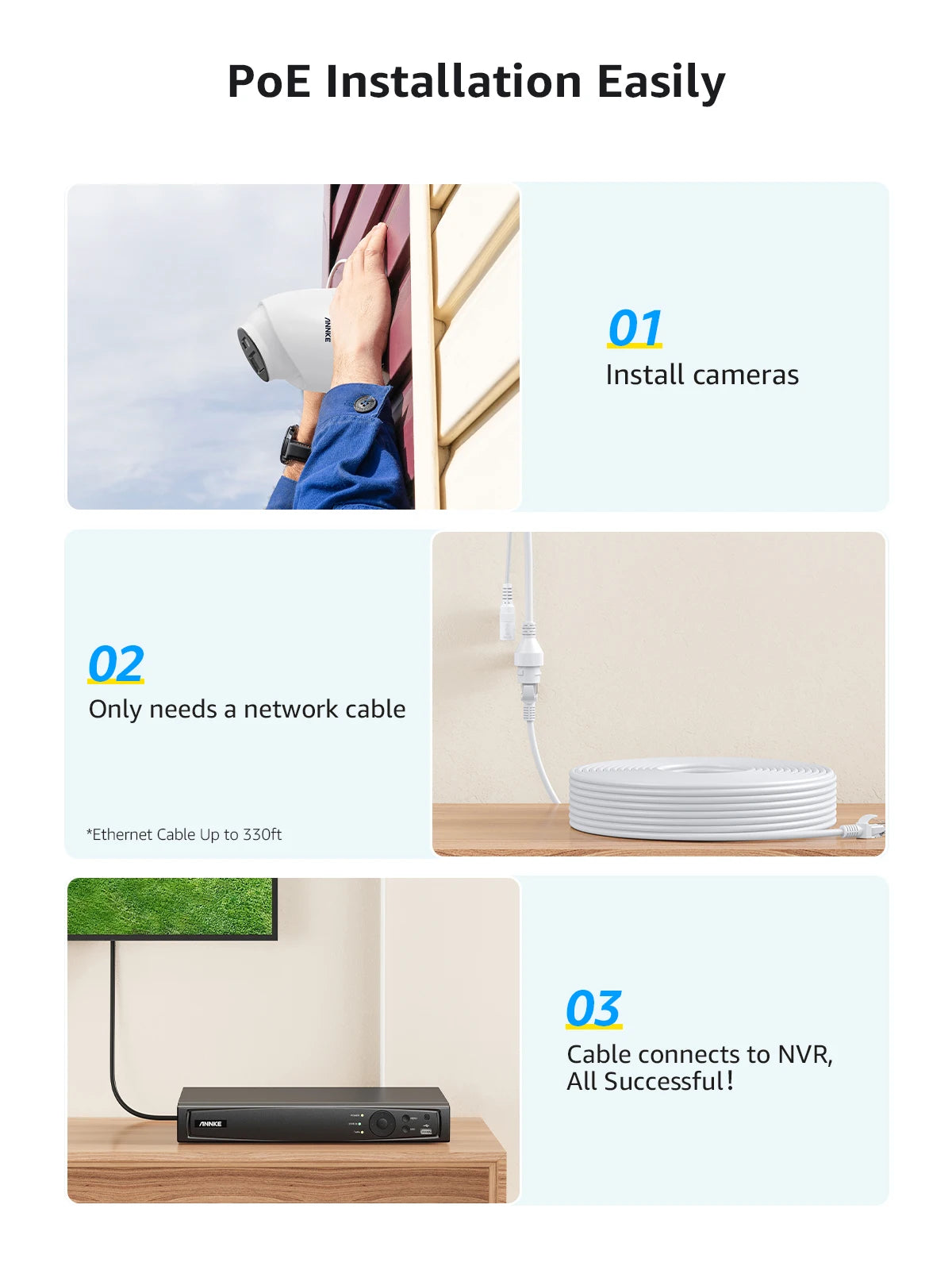

Easy Plug and Play PoE Installation

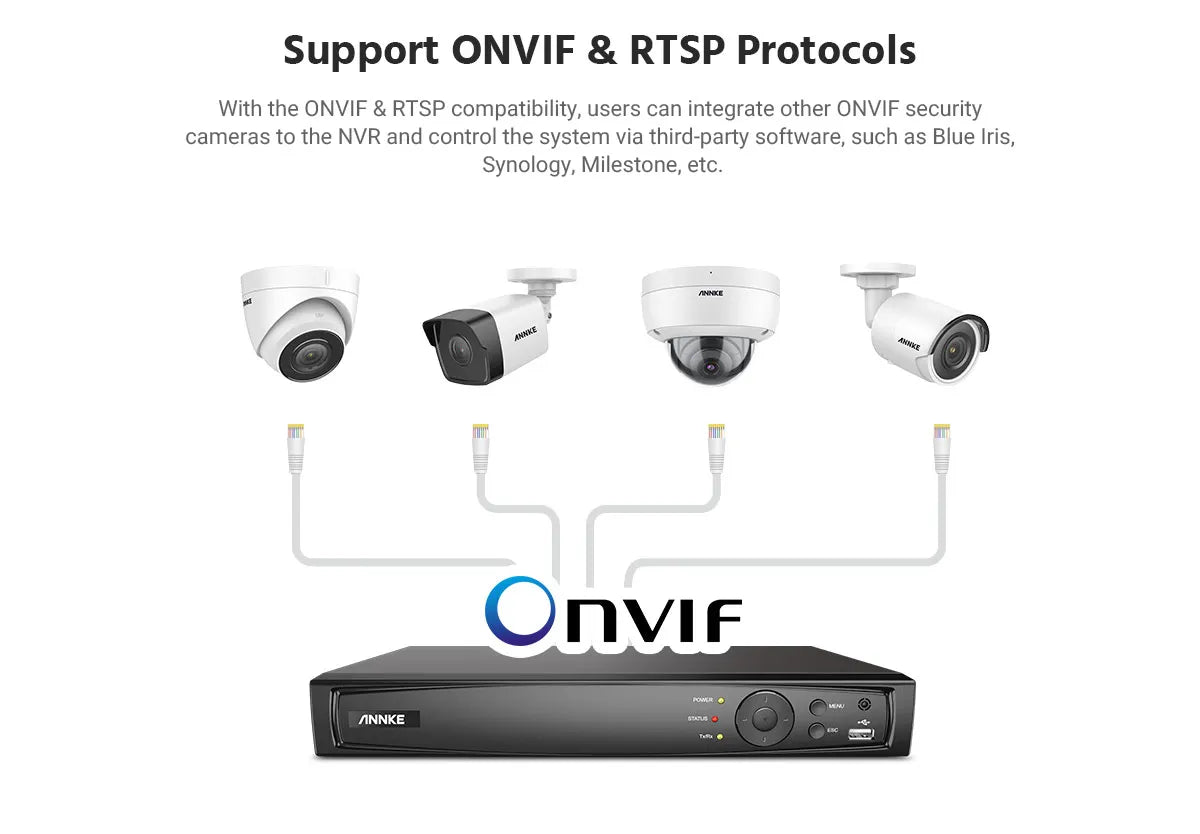

Connect the camera to the PoE NVR with just a network cable for both data & power transmission. The expandable NVR supports up to 8 ANNKE & third-party ONVIF PoE cameras (up to 4K) for all-angle coverage. Record videos 24/7 even without Internet.

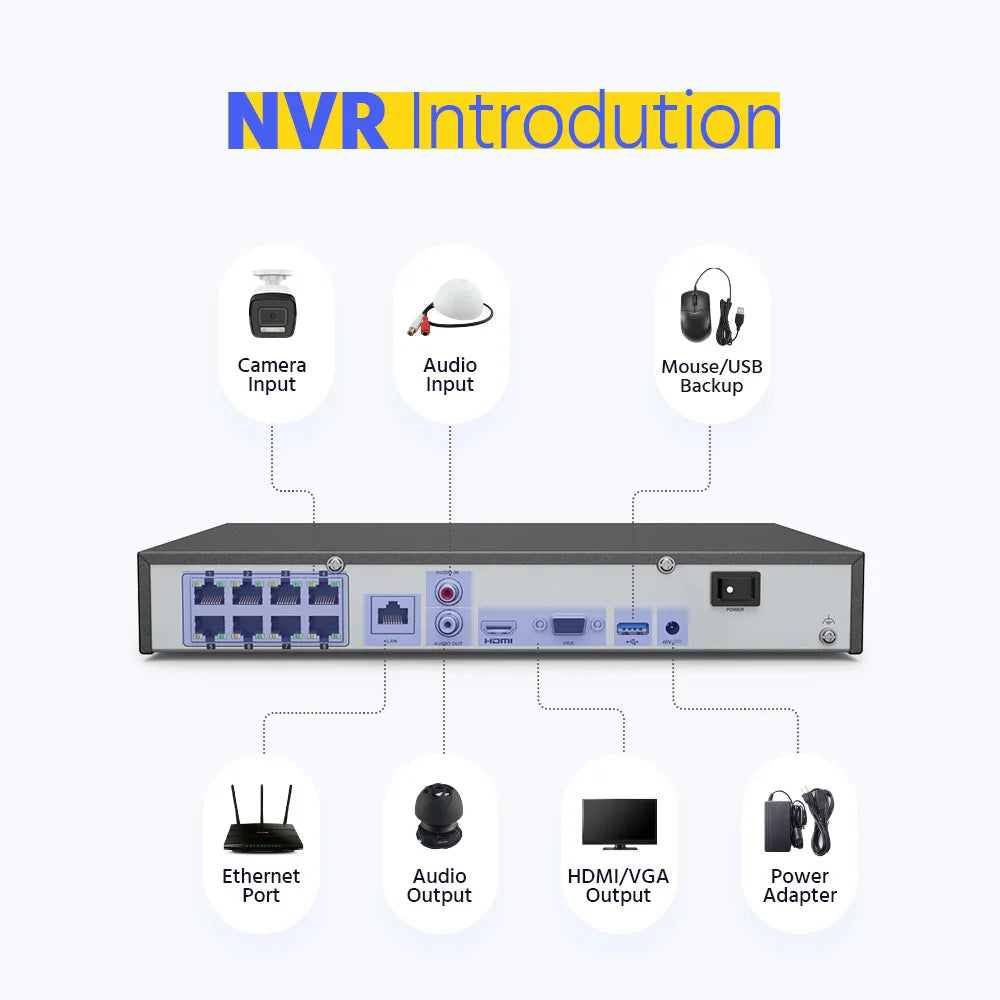

NVR |
||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI up to 4K, VGA up to 1080p |
|
Audio Input/Ouput |
1/1 RCA |
|
Incoming/outgoing Bandwidth |
80/80 M |
|
Max Recording Resolution |
Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera) |
|
Max Playback Resolution |
Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera) |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
|
ONVIF Protocols |
Support |
|
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
|
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB interface |
USB 2.0*2 |
|
Smart Function |
Deep learning |
Human and vehicle targets detection(Need IP camera support) |
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
|
PoE: Max 25.5 W for Single Port |
||
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|

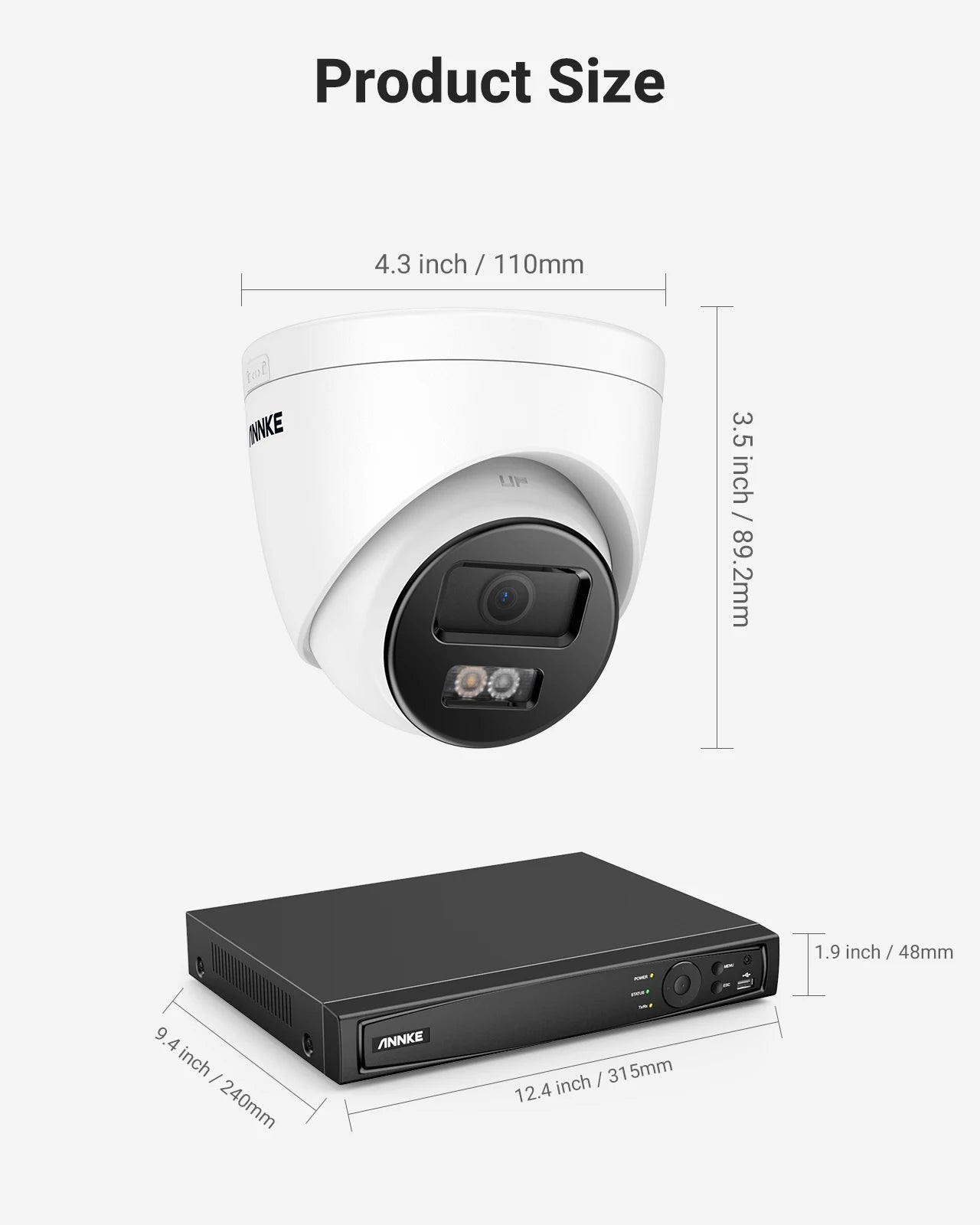

Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
8MP IP Camera |
||
Camera |
Image Sensor |
1/2.4" Progressive Scan CMOS |
Max resolution |
3840*2160(8MP) |
|
Main Stream |
50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Substream |
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
4 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
IR: up to 30 m, white Light: up to 20 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
|
API |
Open Network Video Interface Version (Profile S, Profile T, Profile G) |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
Ø110 mm × 89.2 mm (Ø4.3" × 3.5") |
|
Weight |
0.7 lb./340 g |
3K 5MP IP Camera |
||
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
Main Stream |
50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) |
|
Substream |
50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 6 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
2.8 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
IR: up to 30 m, wite Light: up to 20 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
|
API |
Open Network Video Interface Version 18.12 |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Mirror,rotate,password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 256 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
Ø110 mm × 89.2 mm (Ø4.3" × 3.5") |
|
Weight |
Approx. 340 g (0.7 lb.) |
Dual-light camera: three lighting modes to choose from
1. Intelligent mode: By default, the infrared light turns on at night and the picture is black and white. When someone and a car trigger it, the infrared light goes out and the white light turns on to turn into a color picture.
2. Infrared mode: infrared fill light 30 meters.
3. White light mode: white light fill light 20 meters.

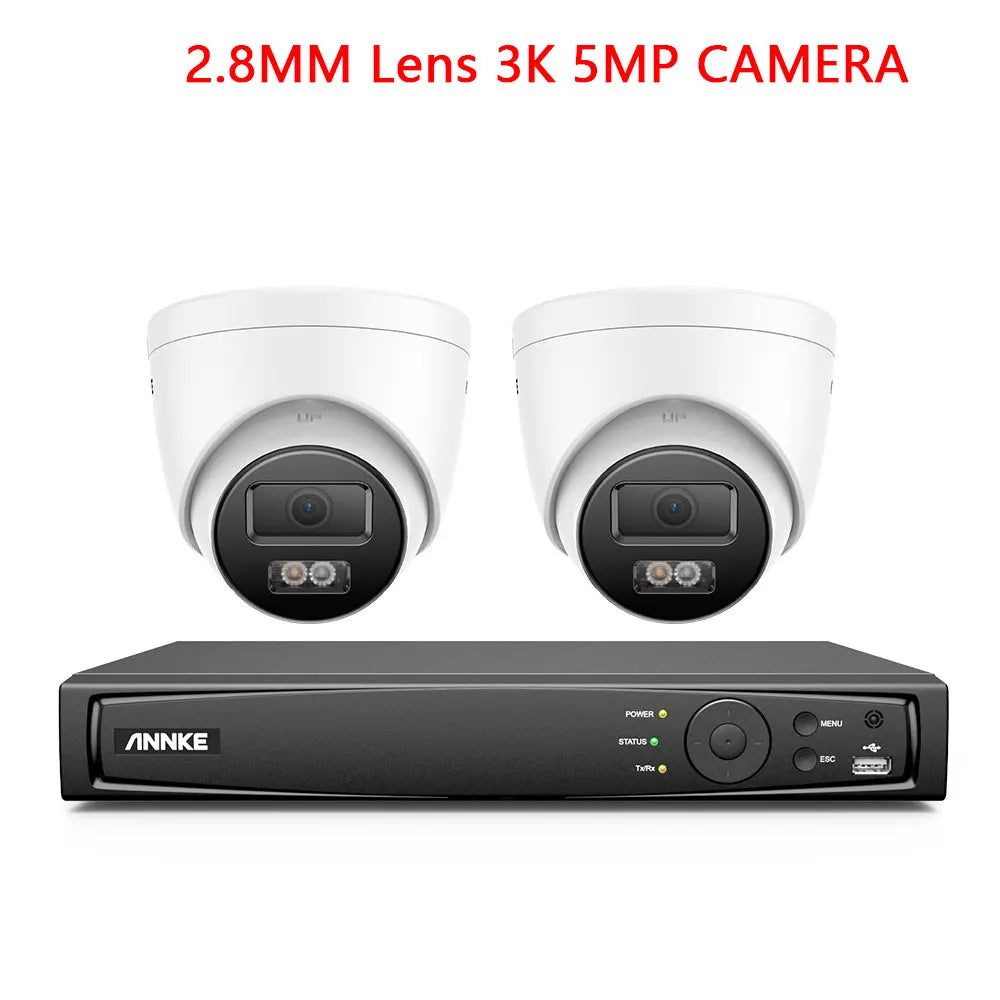

If you choose 2/6pcs cameras,you will get:
X1 NVR
X6 or 2 pcs Cameras
X2 30m Network cable or X1 30M Cable
X2 18m Network cable or X1 18m Cable
X1 Power supply
X1 USB mouse
X1 User manual
X1 Network cable
X1 HDMI cable
(Hard disk for Optional)
If you buy a HDD,pls check if it is installed in NVR,sometimes,we will do like that.Any problem pls contact us freely.
