SPECIFICATIONS
(120s )maximum discharge current: 300A
(2s ) peak discharge current: 600A
Battery Charging Temperature: 32℉ ~ 131℉(0℃~55℃)

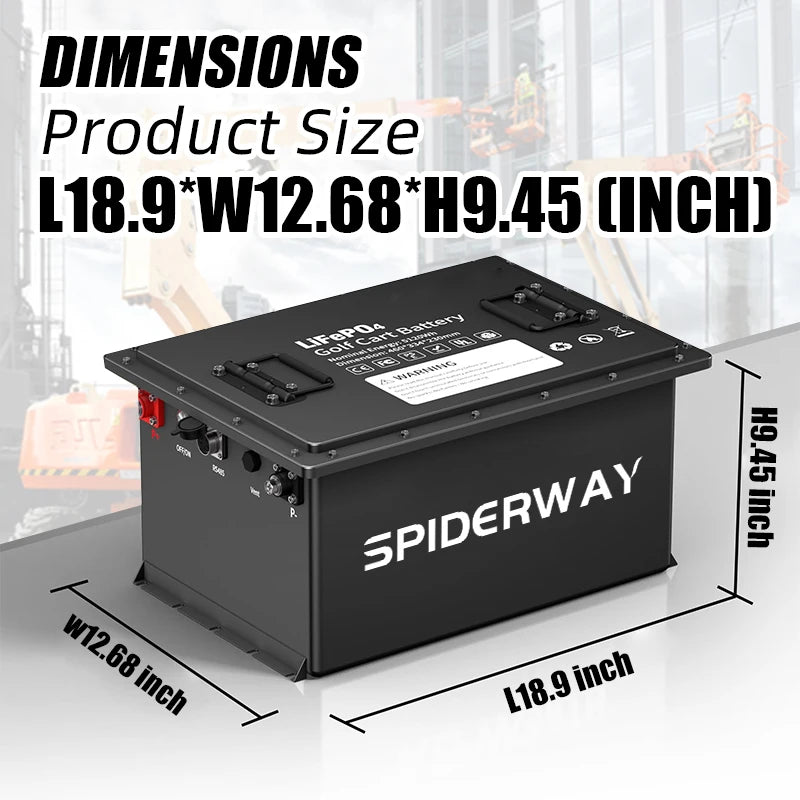

Battery Size: 480*322*240mm
Battery Storage Temperature: 68℉ ~ 131℉
Brand Name: ECAS
Cell Quantity: 16 / (3.2V105Ah)16S1P
Charge Method: CC/CV
Charge Voltage: DC 58.4V
Color: Black
Current: 105ah
Cycle Life: ≥6000 times
Discharge cut-off voltage: 37.5V (Routine)
Features: Portable
Hign-concerned Chemical: None
Humidity: 25~85+20%RH
IP Grade: IP67
Initial lmpedance: ≤50mΩ
Manufacturer Warranty: 10 Years
Max. Load Power: 12.8Kwh
Model: 51.2V 105AH
Operating Temperature: Charging:0°C~55°C(32℉~131℉), Discharging:-20°C~55°C(-4℉~131℉)
Origin: Mainland China
Power: 5.376KWh
Protection Properties: Overcurrent Protection, Overcharge Protection, Short Circuit Protection, Overvoltage Protection
Type: Rechargeable Batteries & Charge
Voltage: 48v
Warranty: 8 Years
continuous discharge current: 300A
Features:

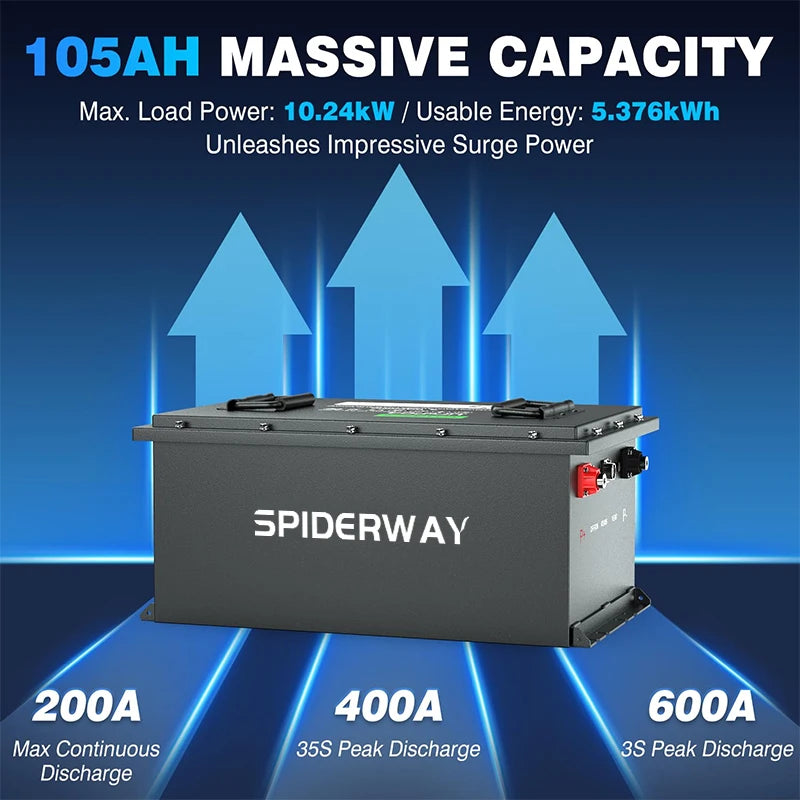

- Top-Flight Performance: 48V 105Ah golf cart LiFePO4 battery is manufactured by top-of-the-line Grade A Prismatic LiFePO4 Cells and has a compact 5.37kWh energy, which is equivalent to 4pcs 12V 100Ah LiFePO4 in 4S (even 8pcs 12V 100Ah AGM batteries in 8S). It has a great 12.9kW power with low self-discharge rate, low capacity loss, more stable performance, and continuous discharge current up to 250A, which is 50% more powerful than the other same-size lithium battery.

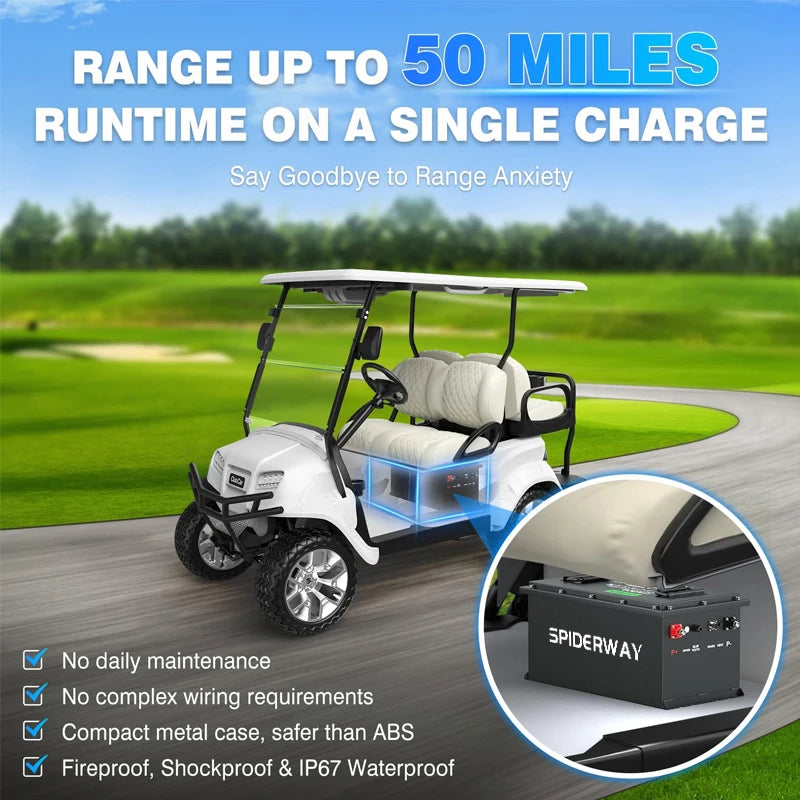

- Get Rid of Lead-acid Now: Spiderway 48V 105Ah lithium golf cart battery unleashes an impressive surge of power, delivering exceptional acceleration and performance. Conquer even the toughest terrains with ease and take your golf game to new heights. Say goodbye to range anxiety! Allowing you to enjoy continuous golfing for up to 50 miles on a single charge.

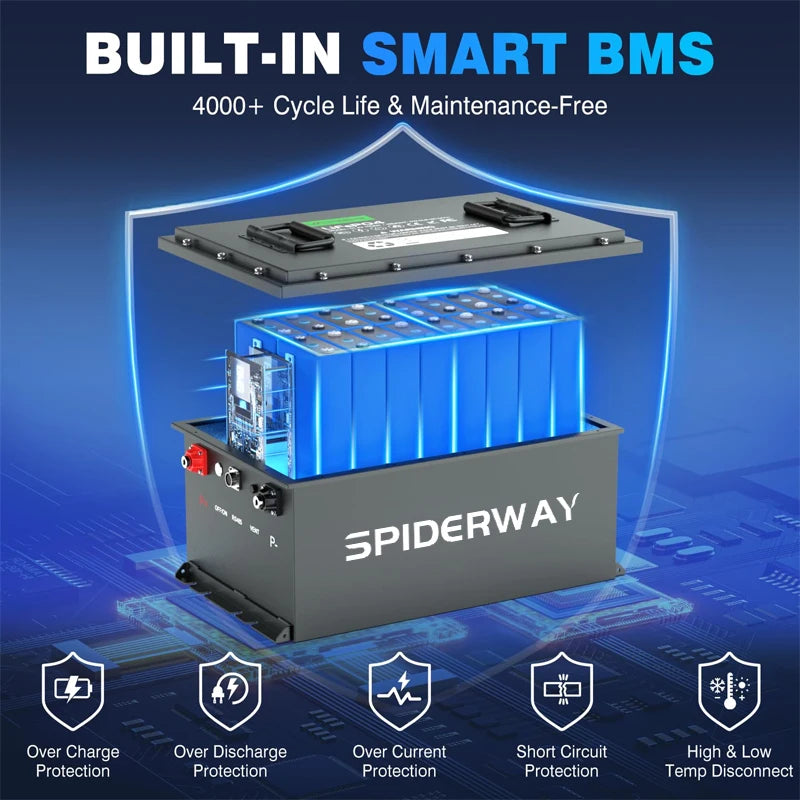

- Built-in 200A BMS & Multiple Protection: The LiFePO4 battery built-in 200A BMS provides over-charge/discharge, over-current, high/low temperatures, and short-circuiting protection. The battery case is made of high-strength cold-rolled sheet metal is fireproof, shockproof and IP67 waterproof. With good thermal and chemical stability. Maintenance free, no daily maintenance work and cost.

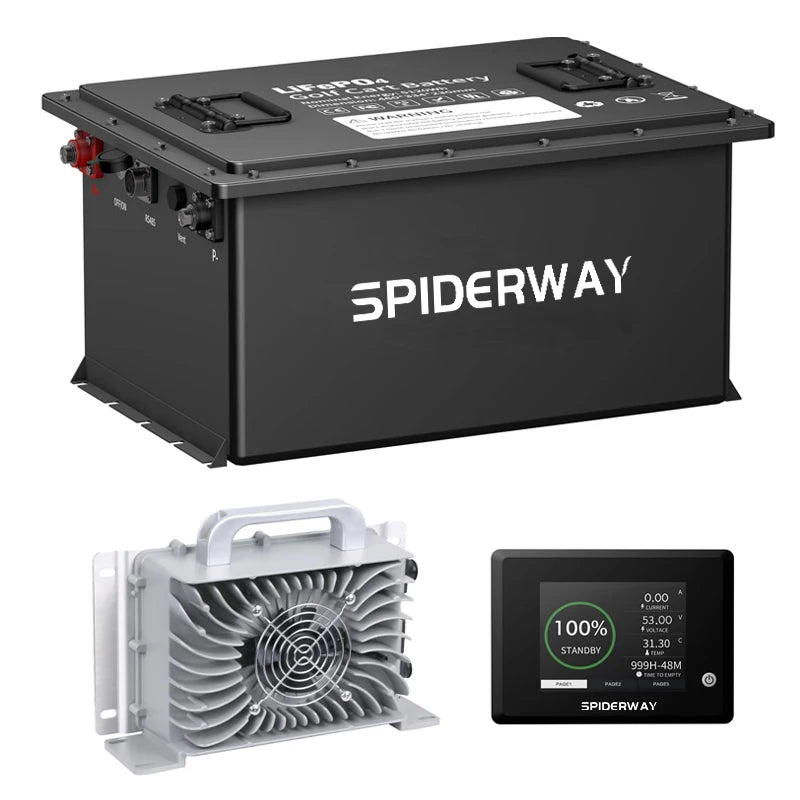

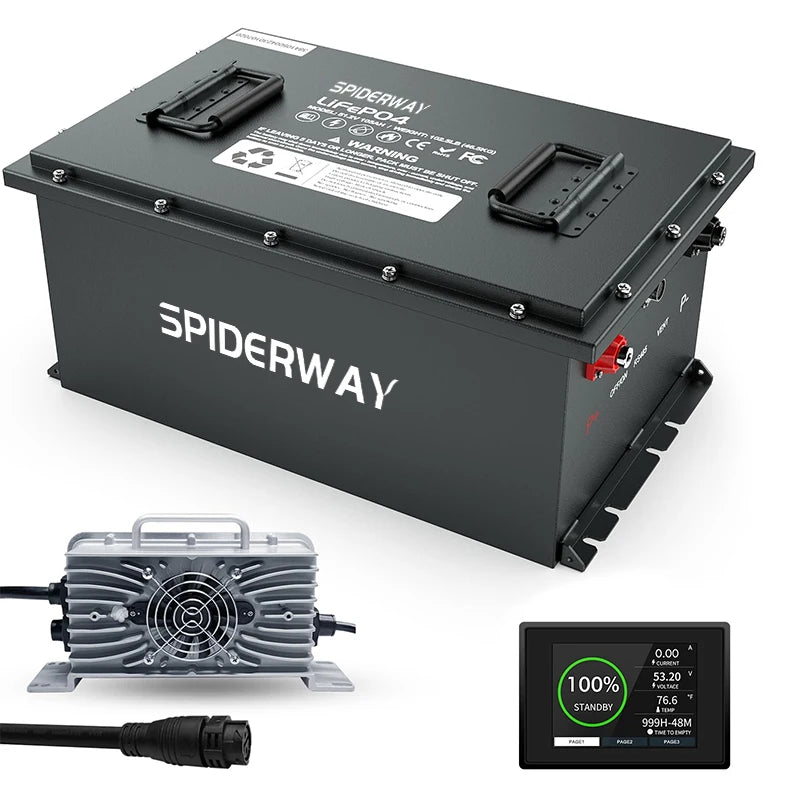

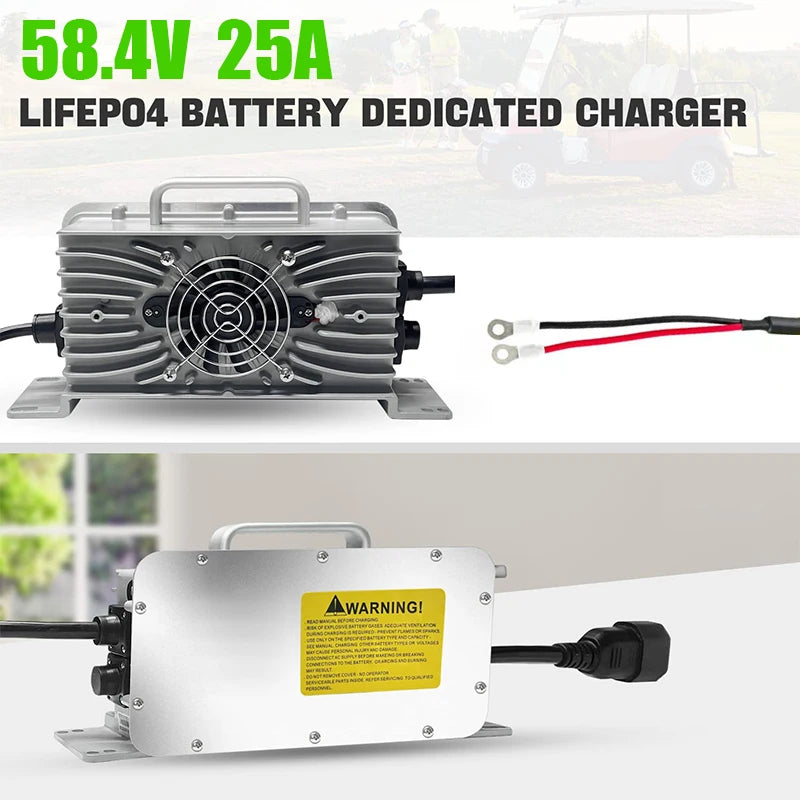

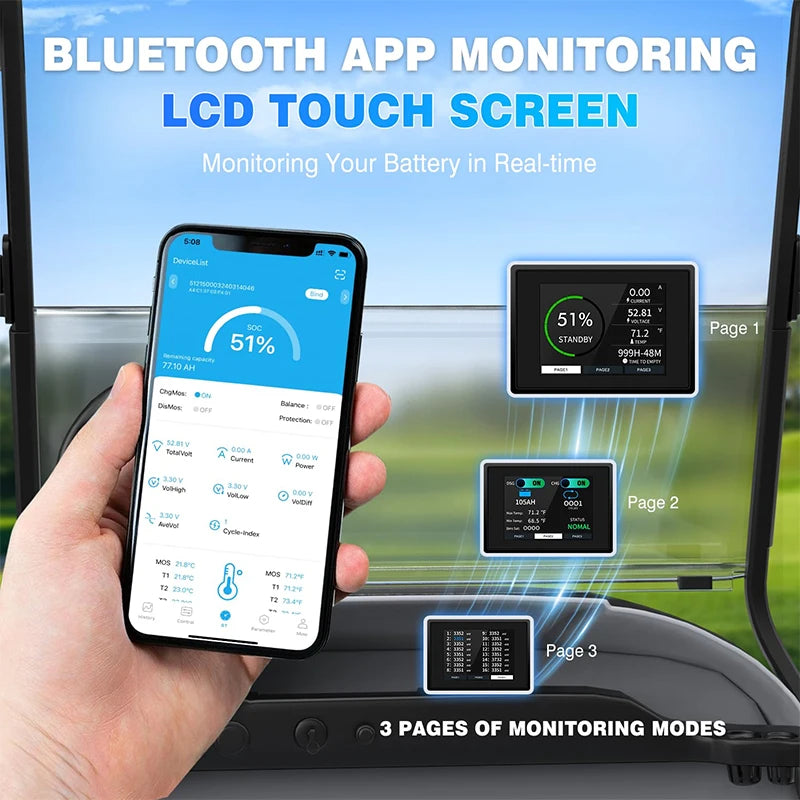

- Born for Golf Carts & LCD Touchscreen: The lithium battery is specially designed and engineered to meet the rigorous demands of the 48V golf cart industry, with more powerful energy and excellent performance, compatible with the main brand golf cart controllers in the market. And comes with a 58.4V 25A LiFePO4 charger, which supports fast charging, 0% to 100% in just 4 hours. Equipped with a 2.8-inch touch screen you can view and control the battery in real time on the LCD screen.
- Exceptional Longevity & Easy Installation: Our lithium golf cart batteries provide 6000+ cycles compared to 300~500 cycles in the lead acid battery. Helping to minimize replacement costs and reduce the total cost of ownership. And the weight of the 48V 105Ah battery is 50% lighter than the lead-acid golf cart battery of the same capacity and no complicated wiring requirements, making them easier to handle and install in golf carts where space is limited.

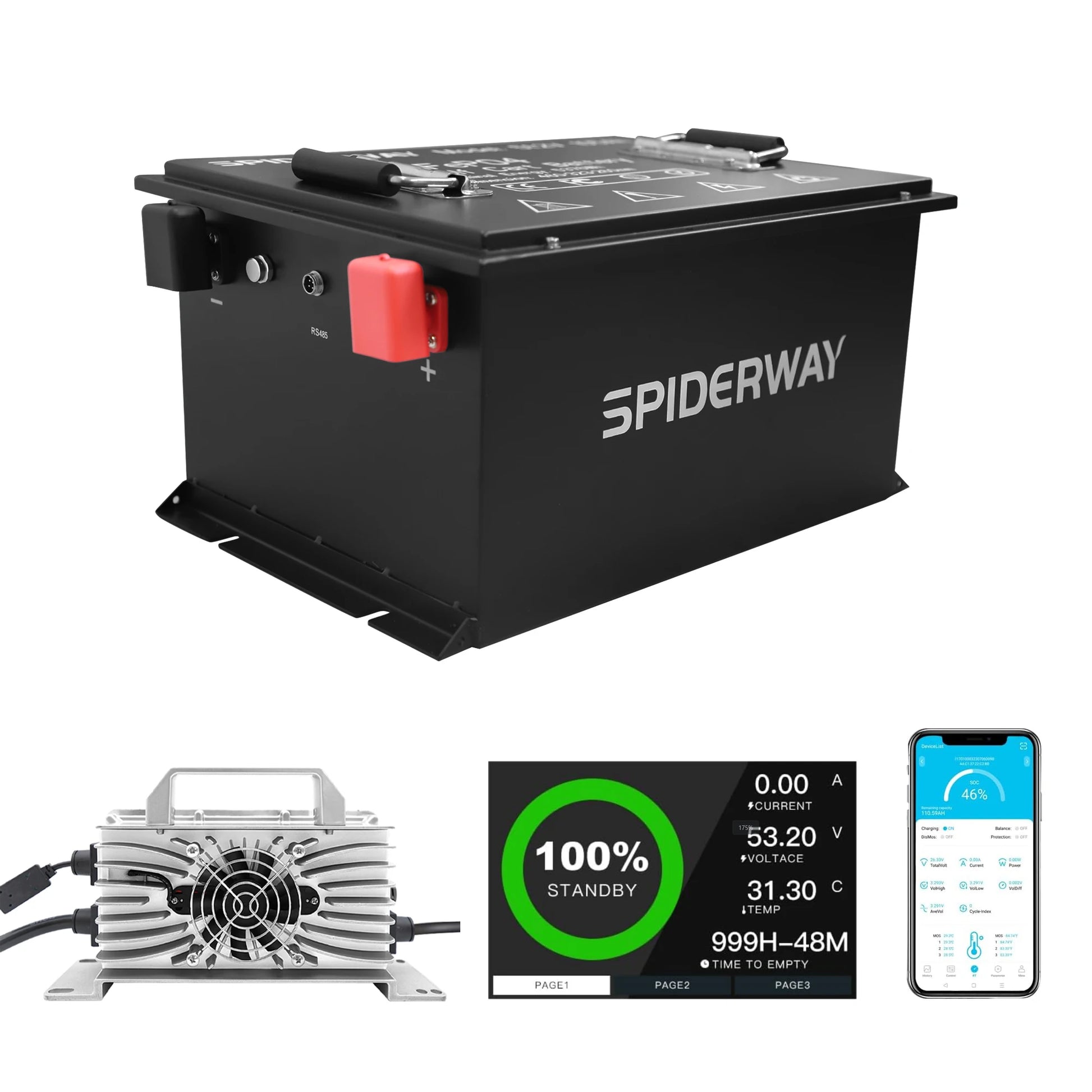

- Mobile APP Monitoring: Spiderway golf cart battery has added an APP function. Customers can connect the battery through Mobile APP, read or control the battery various data (SOC) in real-time.
