SPECIFICATIONS



Air Exhaust Rate: ≤ 10 m³ / min



Brand Name: Tieasy

Certification: CB,ce

Exhaust Type: Combination

Hign-concerned Chemical: None

Housing: Stainless Steel

Model Number: USGF3275CF

Noise: 41-50dB

Power (W): 150w

Power Source: AC

Structure: Flat Hood Type

Style: European Style

Type: Under Cabinet

Voltage: 220 V



Specification:

Venting Type：Vented

Design：Under Cabinet

Energy Star：A++

Exhaust Air Power：201-300 CFM

Manufacturer Warranty：1 Year

Voltage：120 V / 60 Hz (USA , Canada standard)

Item Height：5.43 in

Style：Modern

Light Type：LED Light

Features：Aluminum Grease Filter, Carbon Filter, Easy Clean, LED Light

Power Requirement：120 V

Finish：Stainless Steel

Item Width：30 in

Installation：Under-Cabinet

EC Range：A++ - E

Control Design：Mechanical Control

Color：Silver

Dimensions：29.9" x 17.5" x 4.7"

Material：Stainless Steel

Item Depth：19.69 in

Fan Speed：3

Brand：Tieasy

Motor Speed：3 speeds push control

Type：Range Hood

Model：3275CF



Description:

Under Cabinet Range Hood 30 Inch

The range hood 30 inch wide, compatible with most household stoves; Can be install under a kitchen cabinet with about 13" deep at least; About 5-1/2 inches high, slim design for saving space.

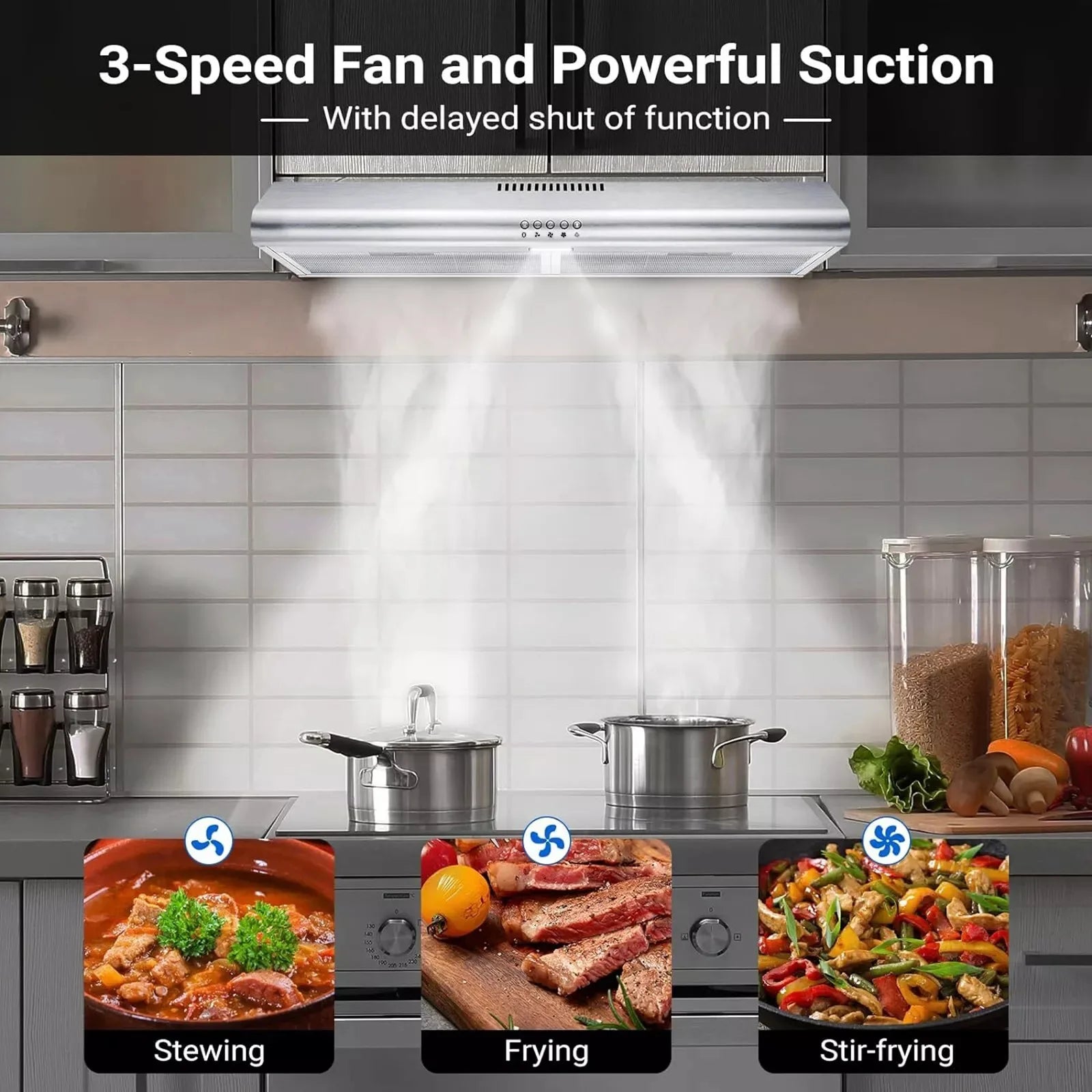

Featuring Max 250 CFM suction, as well 3-speed fan, flexible adjustment according to your cooking request.

Made of 430 stainless steel brushed finish, make your daily cleaning on the kitchen hood more simply, saving your cleaning time.

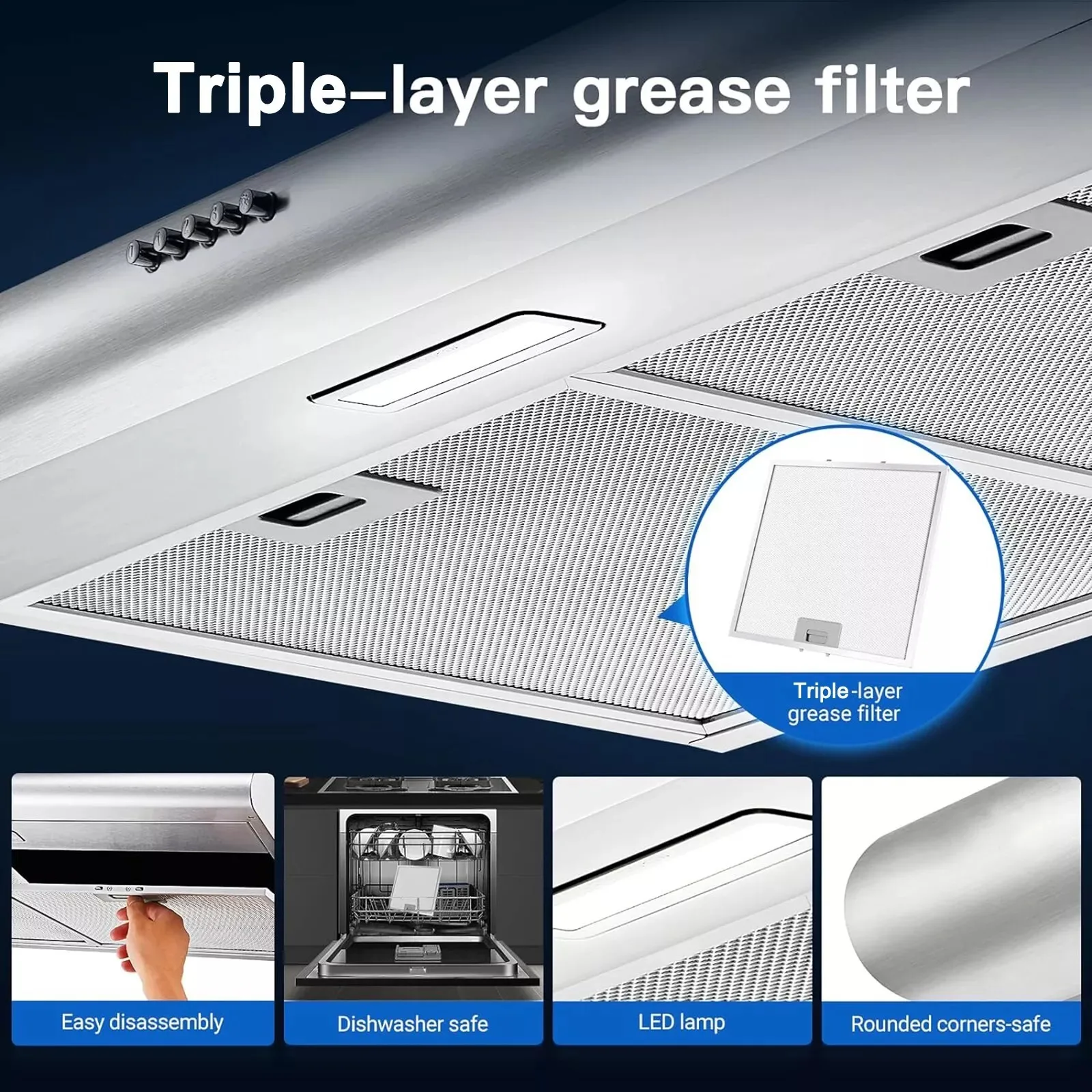

Equiped with push button control, convenient for changing fan speeds or turn on/off light during cooking; Two 3-layer aluminum filters, filter fumes effectively; A 1.5W LED light in front, give an extra lighting in the cooking space.

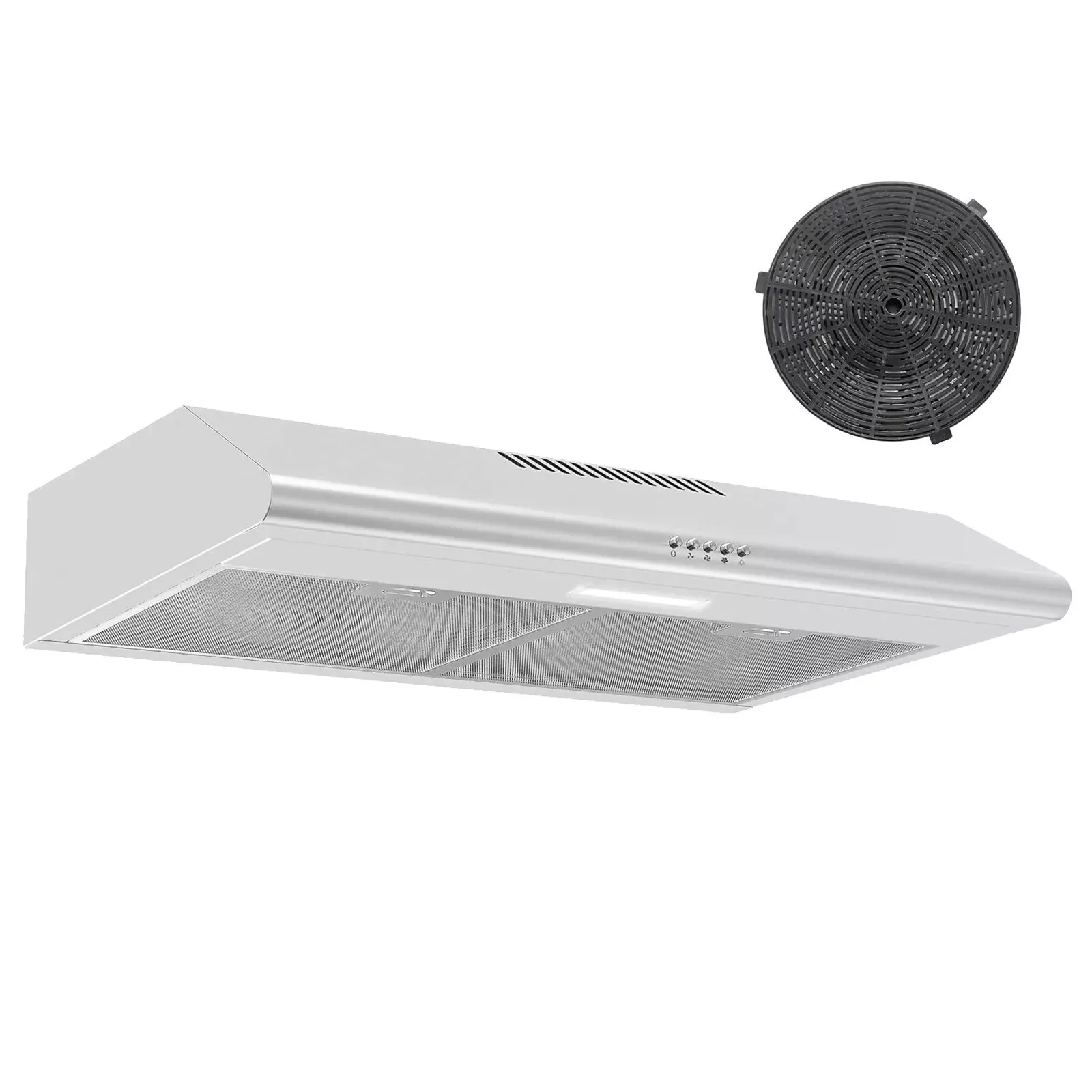

Default to ductless range hood, comes with a carbon filter, can be converted to ducted by installing a exhaust pipe(need to be purchased separately, NOT included in package).



Sliver Stove Hood Vent 30 inch

Same as various of hood vents for kitchen,this stove hood vent can be matched with most modern kitchen,help you solve the problem of cooking fumes,provide you a clean cooking space,enjoy cooking with your partner.

【Stainless Steel Range Hood】Made of premium 430 grade stainless steel,brushed finish,simple and attractive kitchen hood, perfect for modern kitchen style.High quality materials make the vent hood easier and time-saving to clean.Some areas are covered with protective film (white or blue), please remove it before installation or use.

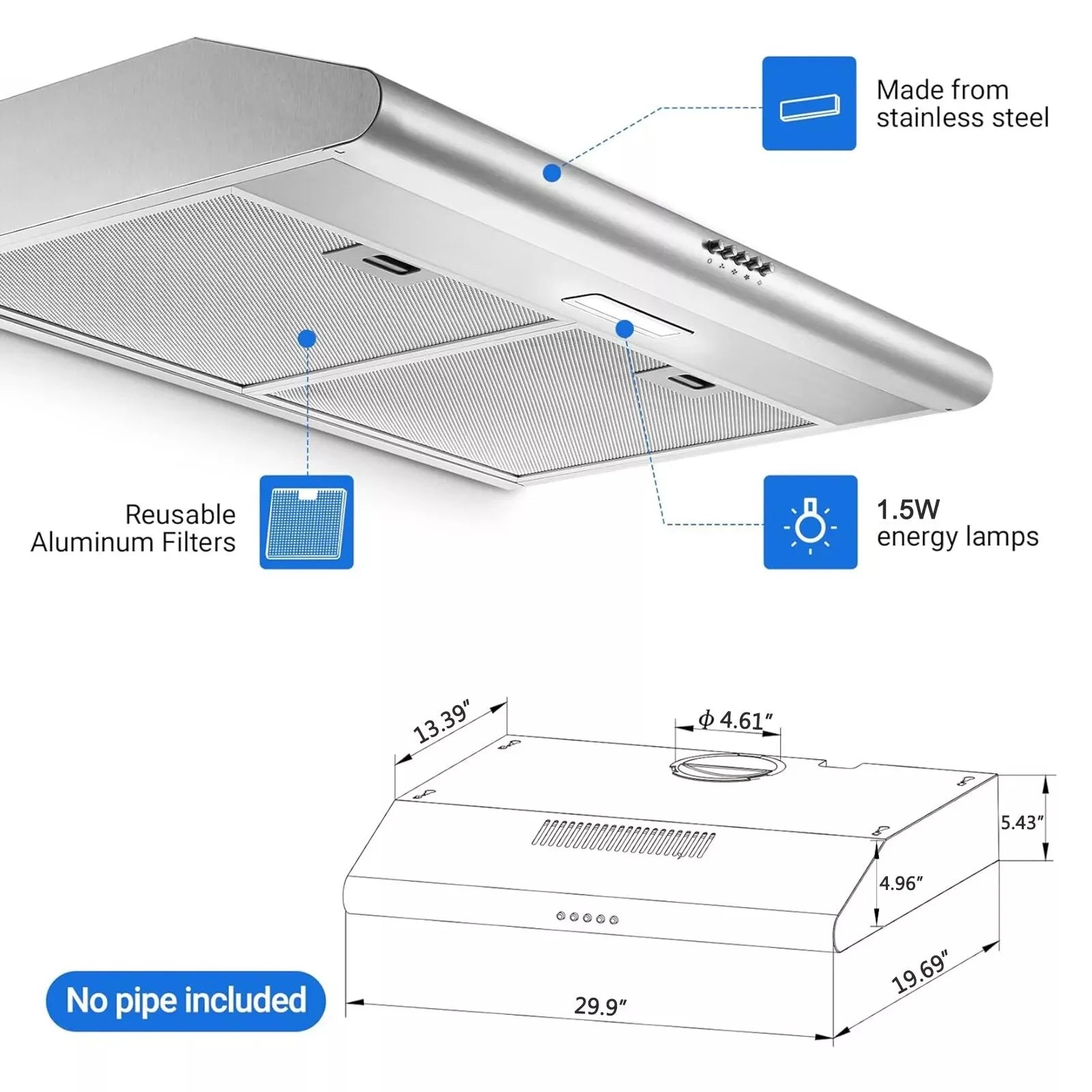

【Range Hood 30 inch Under Cabinet】Under cabinet range hood with slim design,saving your kitchen space.The back of the range hood is a little thicker than the front,stove hood is tilt slightly downward in the back after installation.This is a reasonable design, not a product defect. Please refer to the dimension drawing for details.

【Kitchen Hood with 2 Venting Methods】TOP venting and REAR venting for optional,both are round, size:4.61",meet the needs of top and wall-mount installation,please check whether your existing venting duct matches this kitchen exhaust hood before purchasing.

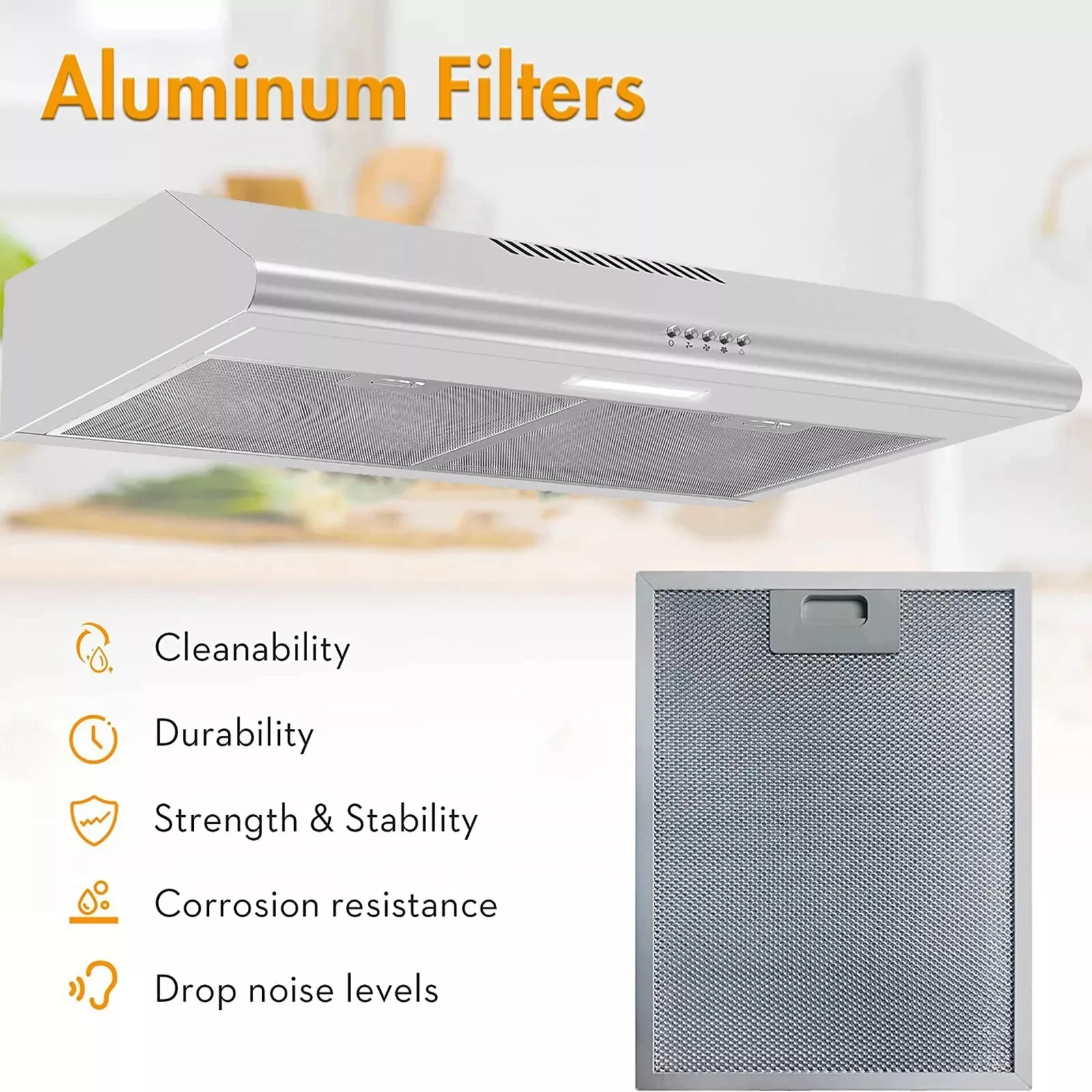

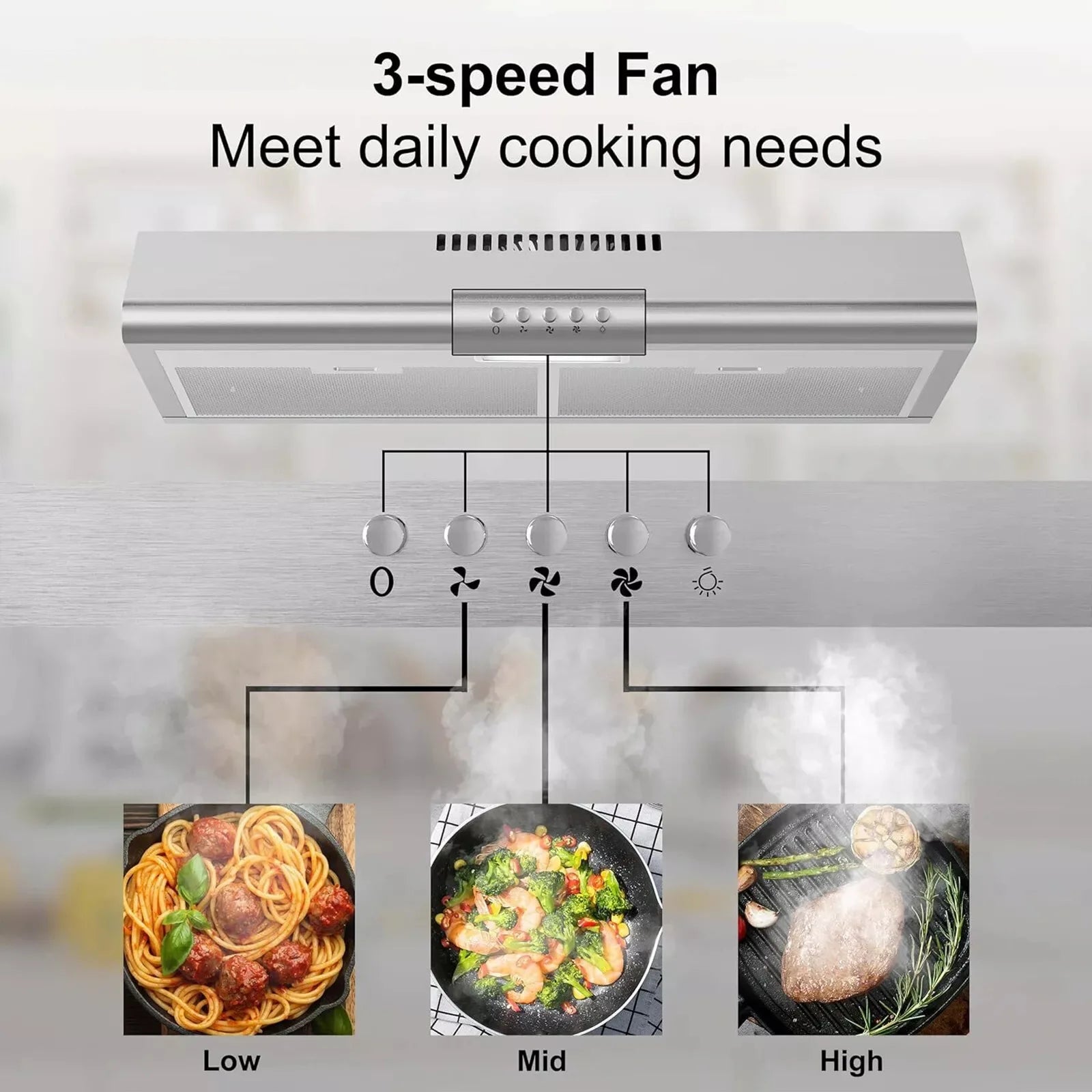

【Features of Under Cabinet Range Hood】3 Speed for optional to change air flow to meet most cooking request,effectively remove fumes and odors;Push button control,can control operation of vent hood easily;2 reusable aluminum filters,to prevent capture grease from entering the interior of the kitchen range hood;A LED light in the front,give the extra illumination for your cooking area.



Exhaust Modes for Kitchen Hood USGF3275CF

Two venting methods for optional

Top Venting & Rear Venting, both are round-shape outlets, 4.61 inches.

Please choose the appropriate way to install the vent hood based on the design of your constructed kitchen.

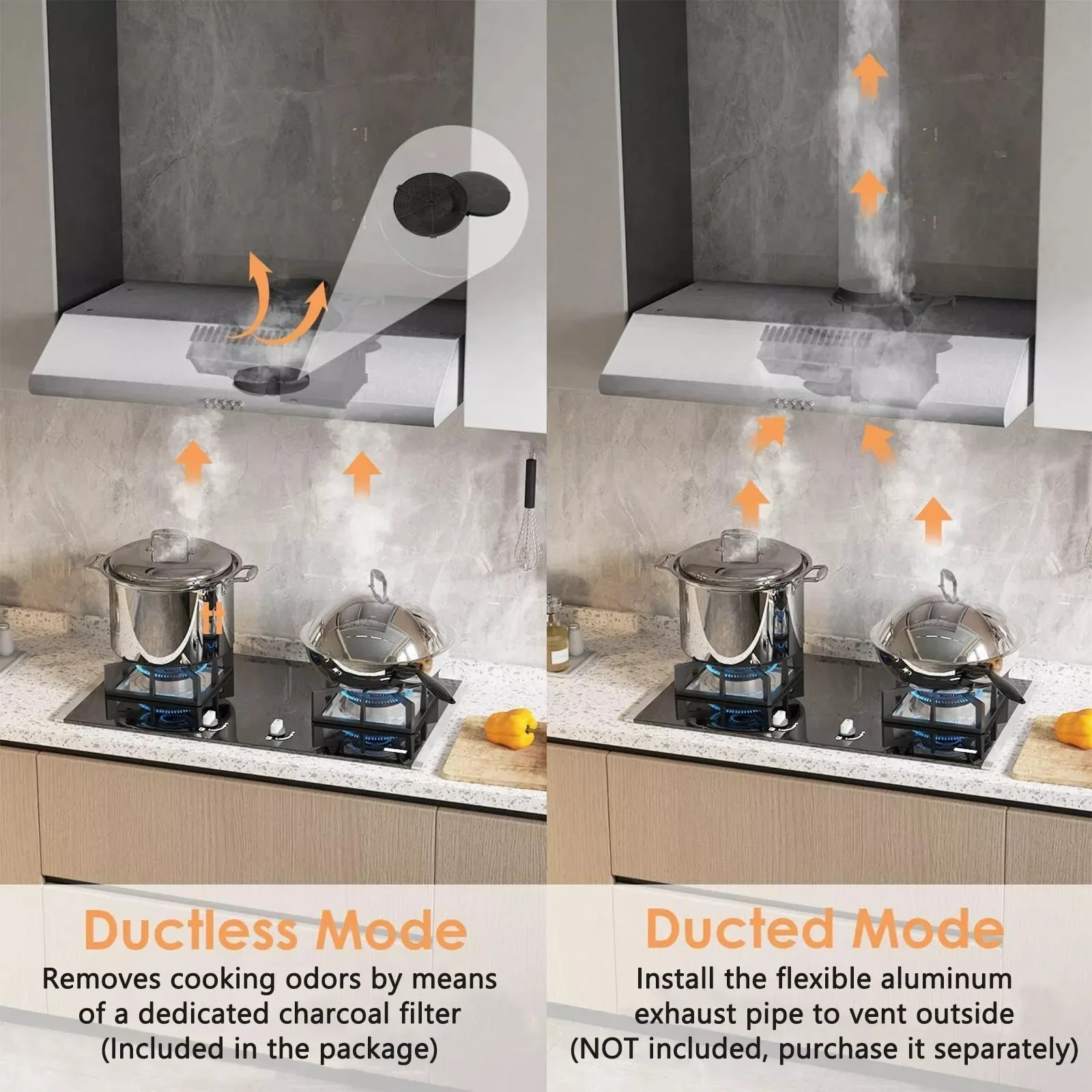

Convertible ducted/ductless



For ducted use, need to install the flexible aluminum exhaust pipe, NOT included in the package, please purchase it separately if need it.

For ductless use, just install a carbon filter, included in the package, suggested that replace it about every 3 months, part #CF-3275.
