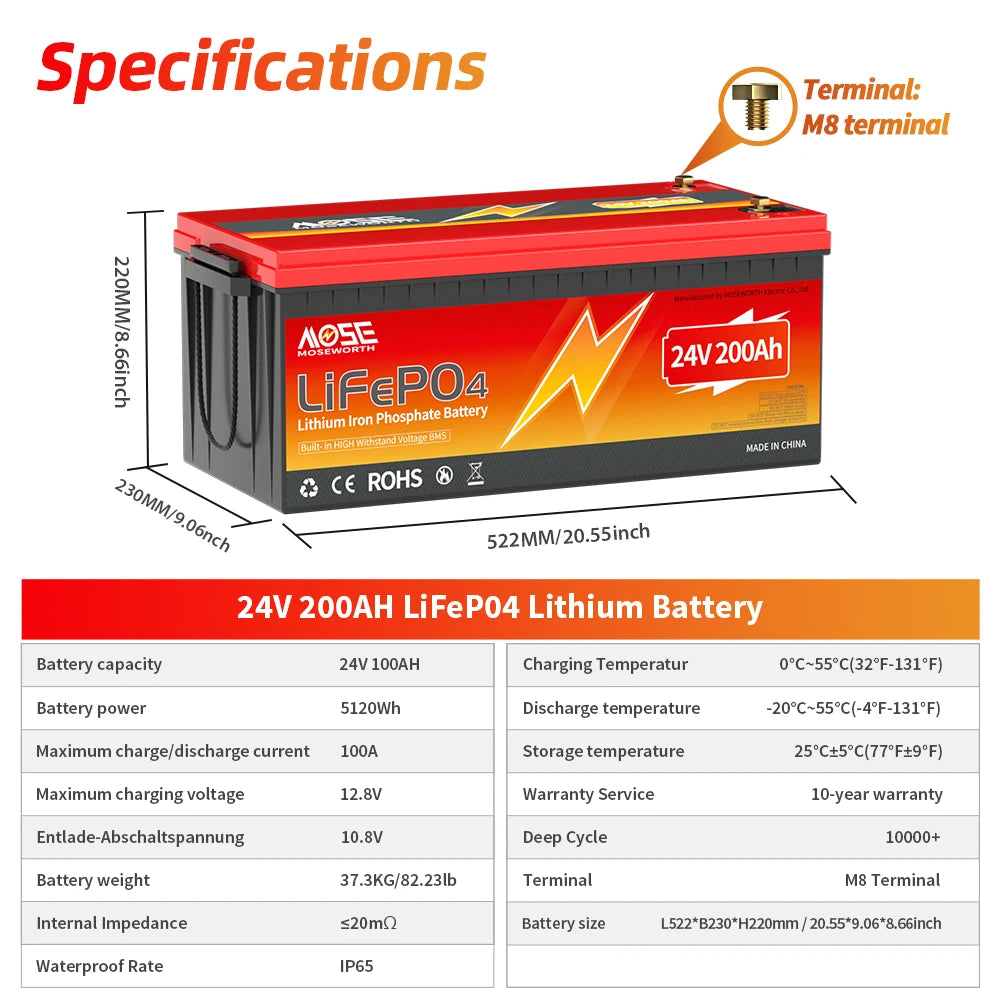

SPECIFICATIONS



Battery Average Life: 10 years



Battery Cell Composition: LiFePO4(Lithium iron phosphate)

Battery Specific: Deep Cycle

Battery Type: 24V Lithium iron phosphate(LiFePO4)

Brand Name: MOSEWORTH

Certificate: CE,ROHS,MSDS,UN38.3

Item Height: 22

Item Length: 52

Item Type: Car Batteries

Item Weight: 37.8

Item Width: 26.9

Maximum charging current: 0.5C

Model: 24V 200Ah

Voltage: 24 V



Note:

The 24V 200Ah battery version has been upgraded, with dimensions changed from 522*230*220mm to 520*269*220mm.

If you have any questions, please contact us before placing your order. Thank you! Happy shopping!

About this item:

Brand: MOSEWORTH

Battery Capacity: 200Ah

Battery Energy: 5120Wh

Battery Voltage: 25.6V

Max Discharge Current: 200A(400A Peak in 3-5s)

Recommended Charging Current: 40A-100A (0.2C-0.5C)

Recommended Charge Volage: 29V±0.2V

Discharge Cut-Off Voltage: 20V

Battery Size: L520*W269*H220mm

Battery Weight: 37.2kg

Internal impedance: ≤10mΩ

Waterproof Rate: lP65

Number of Cells:4 Pcs Grade A LiFePO4 Cells

Whether to support series connection: Yes

Whether to support parallel connection: Yes

Charging temperature: -5℃~45℃(23°F-113°F)

Discharge temperature: -20℃~60℃(-4°F-140°F)

Storage temperature: -10℃~50℃(14°F-122°F)

Warranty service: 5 Years Warranty

Package:1* LiFePO4 Battery+1* Manual



Series/Parallel

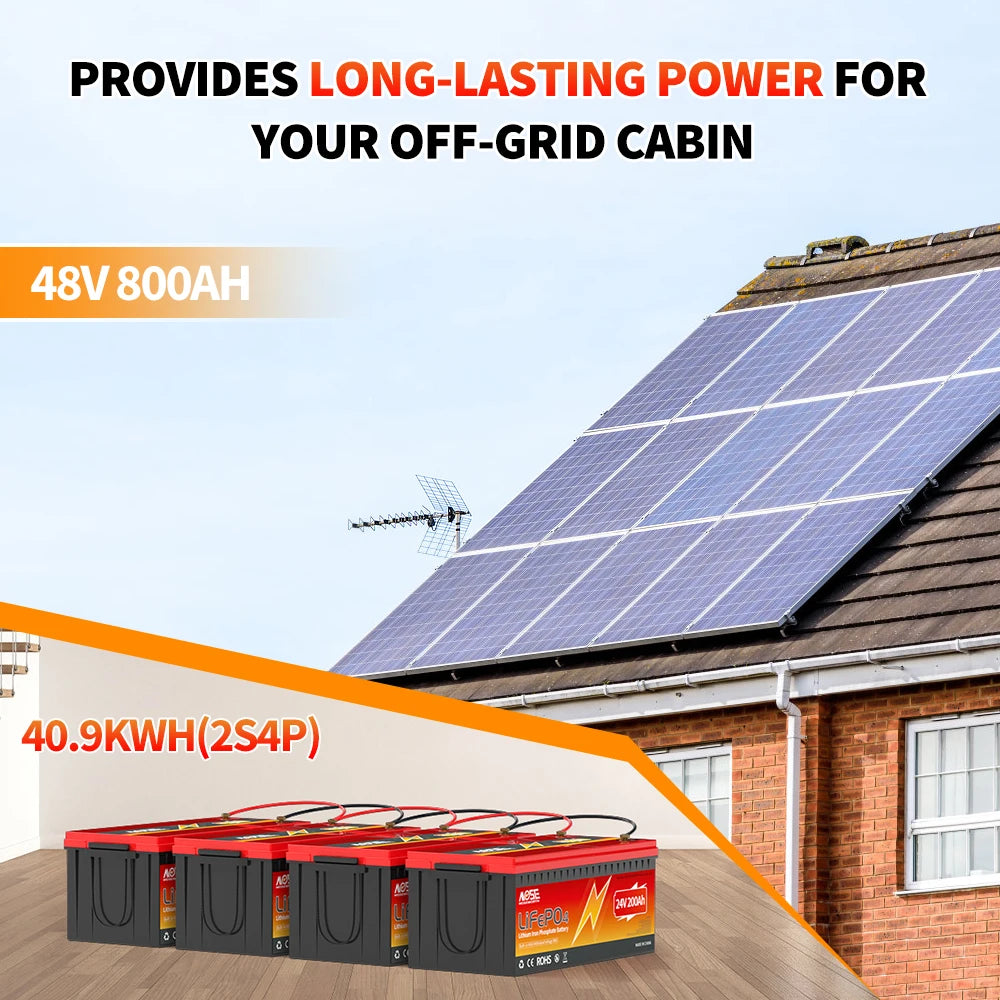

Our LiFePO4 batteries can be connected in parallel and series to achieve greater capacity and voltage.

12VLiFePO4 battery supports connection, up to 4 identical batteries can be connected in series

24V LiFePO4 battery supports connection, with up to 2 identical batteries connected in series

36V/48V LiFePO4 batteries do not support series connection, only parallel connection is supported

Only parallel connections are not restricted

Upgraded BMS-MOSEWORTH newest lifepo4 battery used high version Series BMS panel, better performance in series/parallel. Also it has overcharge, overdischarge, overcurrent, short circuit low/high temperature cut-off protection. More easy to use and lower defective rate.

1. Lithium Iron Phosphate-MOSEWORTH's deep cycle lithium ion batteries have unlimited mounting capability, exceptional longevity, and are more cost effective.

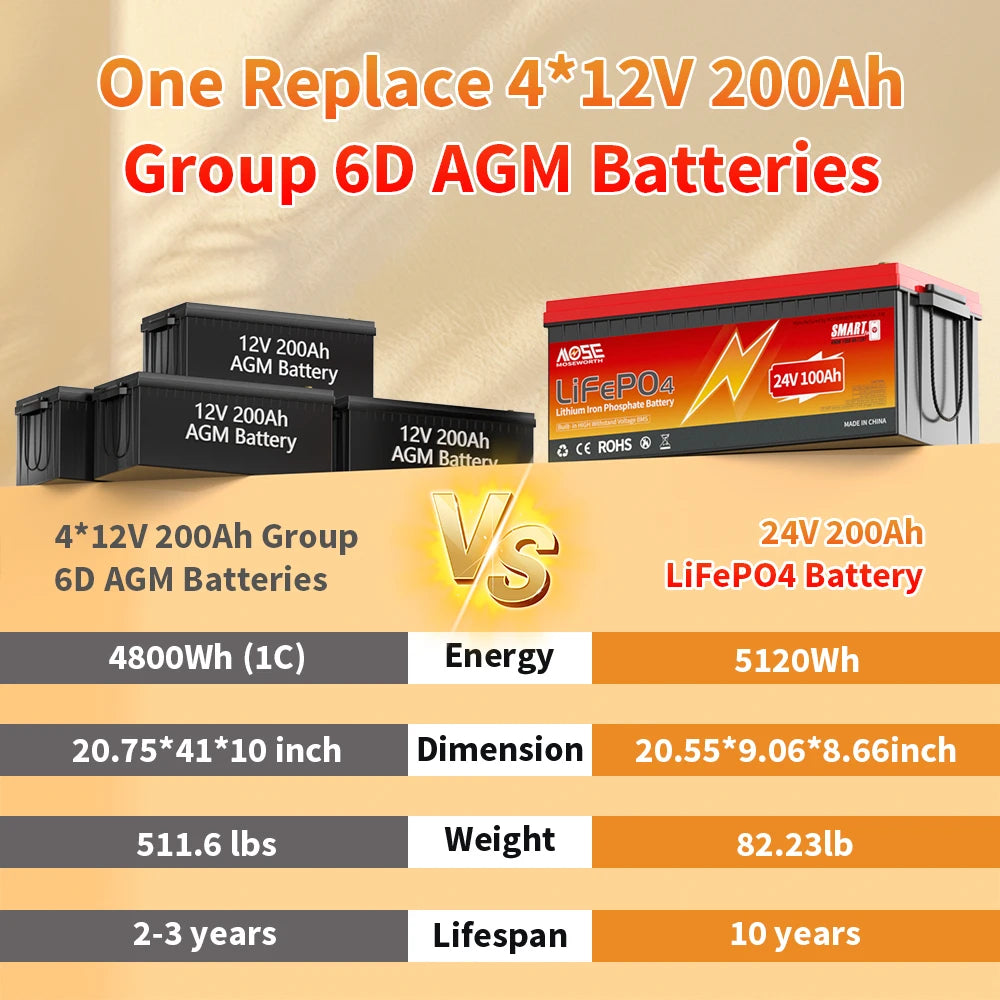

2. LIGHTWEIGHT AND VERSATILE- At the same capacity battery, MOSEWORTH's lifepo4 battery weighs only 1/3 of the lead-acid battery.With no acid in the battery, you're able to safely mount in any position. This makes li-ion batteries perfect for marine, RV, campers, golf cart, off-road and off-grid applications!

3. GREEN ENERGY BATTERIES- Made from 100% safe, nontoxic, renewable energy, MOSEWORTH Batteries last for more cycles and can be charged and discharged repeatedly (and charge faster than any other battery). We make our renewable, sustainable green energy batteries because they’re simply better than anything else out there, including other green batteries.

4. BUY WITH CONFIDENCE- We test (and re-test... and re-test again) literally every battery we ship and all of our batteries come with an industry-leading 10 year warranty. We believe you should be as confident in your battery as we are.Feature:

1) BMS protection board: BMS provides battery charging and discharging and short circuit protection.

2) Extremely Low self-discharge: <3% for LIFEPO4 versus >20% for SLA Battery.

3) Long Service Life: Its cycle can reach as long as 3000-5000 times which is 7-10 times of SLA (the SLA battery is 300-500 times only)

Used For:

Solar Panel Power Bank System, Solar VRLA 12V 24V 36V 48V 60V Off-grid Applications, Trolling Motor, Mobility Scooter Wheelchair, Electronics, Wheelchair, Scooter, Industrial and Medical Equipment, Golf Carts, Hunting, Lawn and Garden Tools, Portable Tools, Toys and Hobby, Emergency Lighting, Leisure, RV House, Security and more. (Not for Motorcycle ATV Engine Starts)
