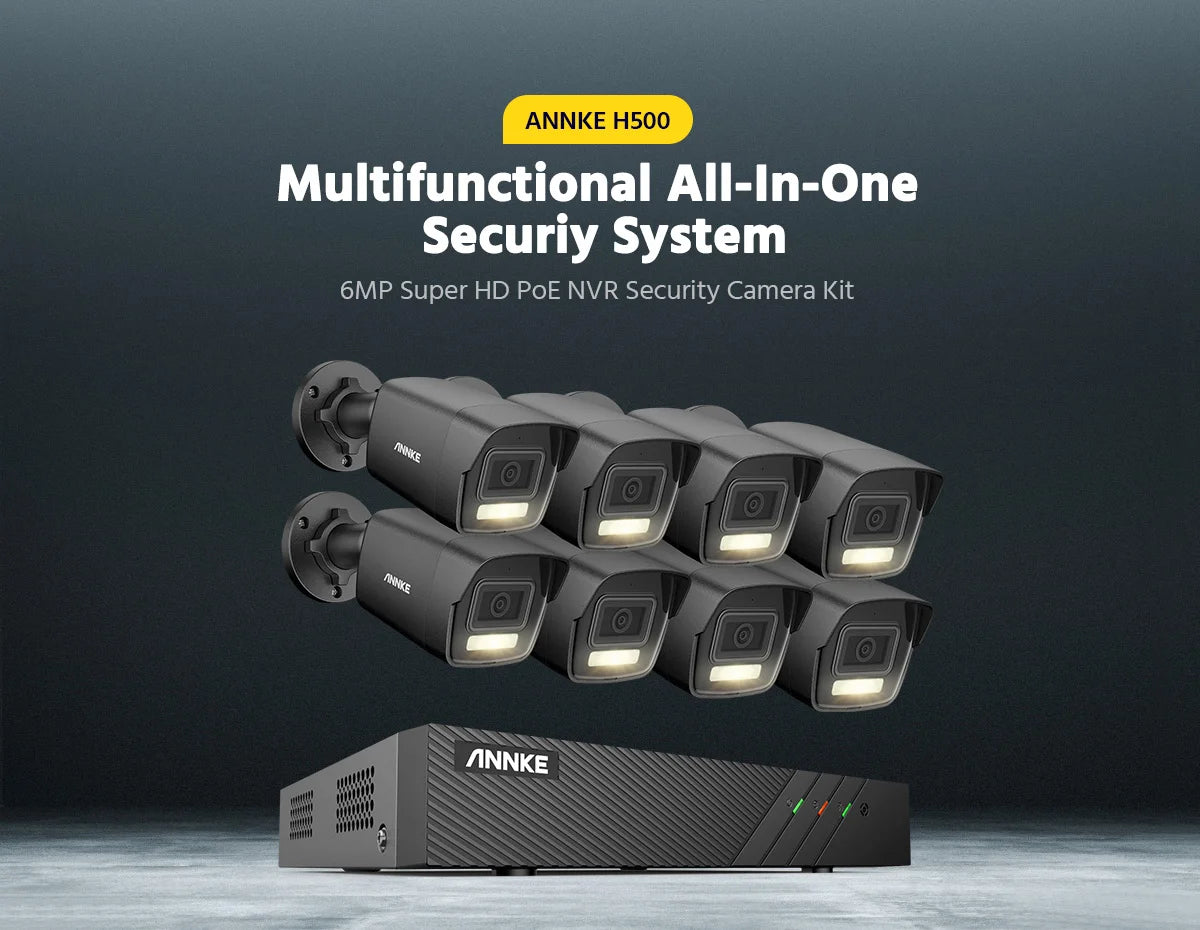

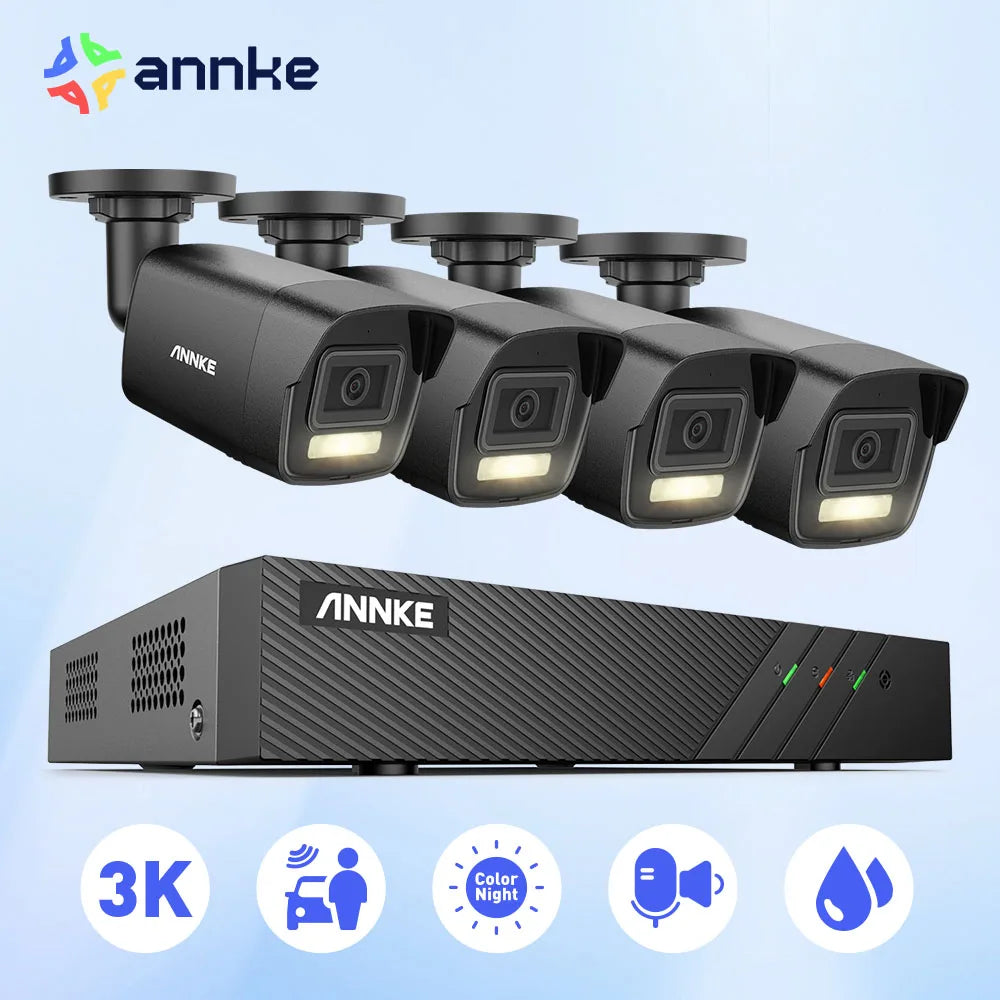

ANNKE 3K Ultra HD POE Video Surveillance System 8CH 6MP NVR Recorder 5MP Security Cameras CCTV Smart
ANNKE 3K Ultra HD POE Video Surveillance System 8CH 6MP NVR Recorder 5MP Security Cameras CCTV Smart
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ANNKE
PCS of Camera: 2PCS
PCS of Camera: 4PCS
PCS of Camera: 8PCS
TV System: NTSC
TV System: PAL
Video Input: 8 Channel
Cable Length: 30m
Cable Length: 18m
Model Number: N48PBB+I51EG
Resolution: 5MP
features 1: 3K IR Network Camera
features: Support PoE &DC12V
Lens: 2.8 mm
Audio Input: Built-in Microphone, record with audio
Motion detection 2.0: Supoort, include Human & Vehicle detection
features 2: 8MP video recorder
Max Playback Channel: 8CH
IP Video Input: 8CH POE
Features: poe camera kit
Features 1: Video Surveillance
Features 2: Video camera
Features 3: Video surveillance kit
Features 4: recorder surveillance camera
Features 5: poe security camera kit

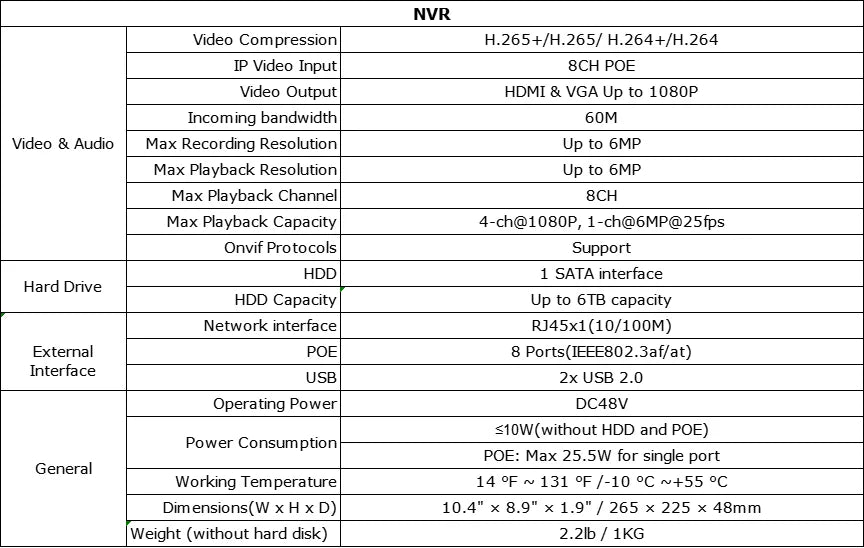

NVR Key features:
· 6MP high definition Real-time live viewing, recording&playback
· Up to 8 channel IP camera connectable with built-in PoE inputs

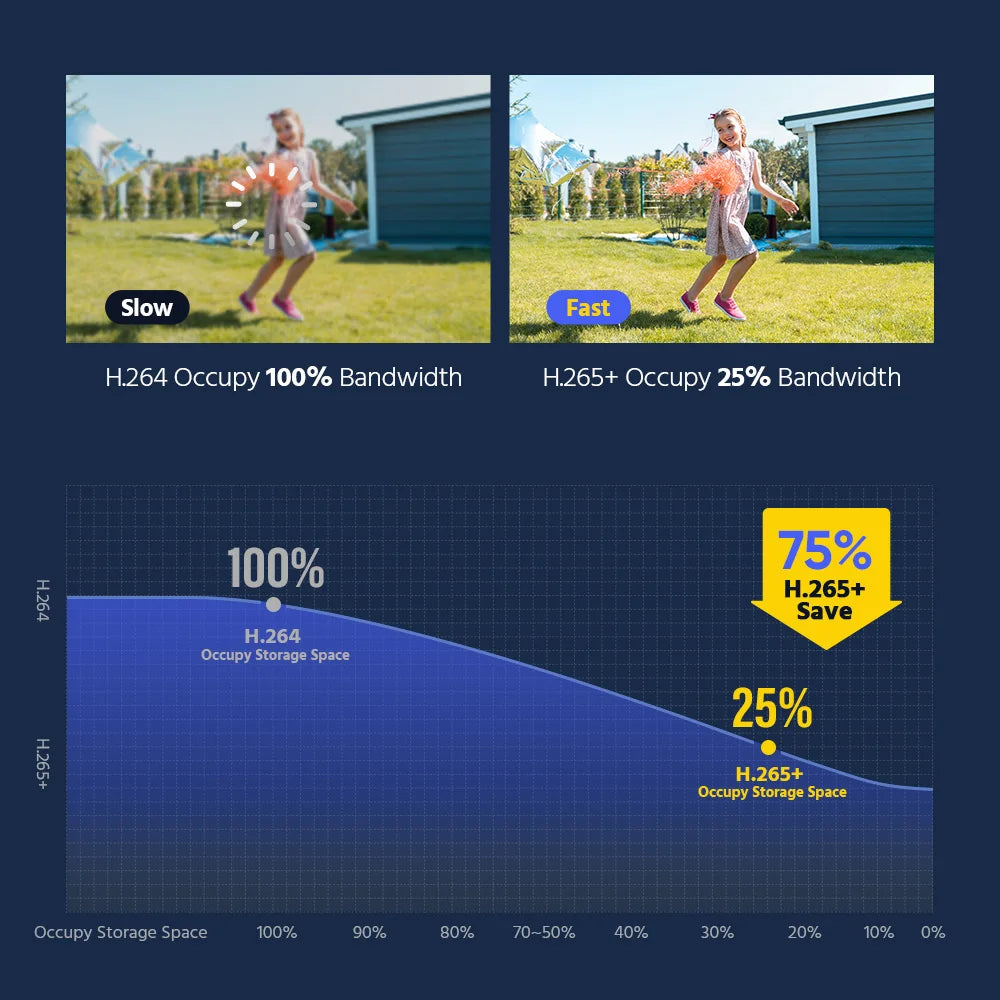

· Advanced H.265+ compression effectively reduces the storage space by up to 75%
· Smart playback to improve the playback efficiency
· Supports iPhone、iPad、Android mobile remote monitoring
· Annke vision for easy remote monitoring
CAMERA Key features:

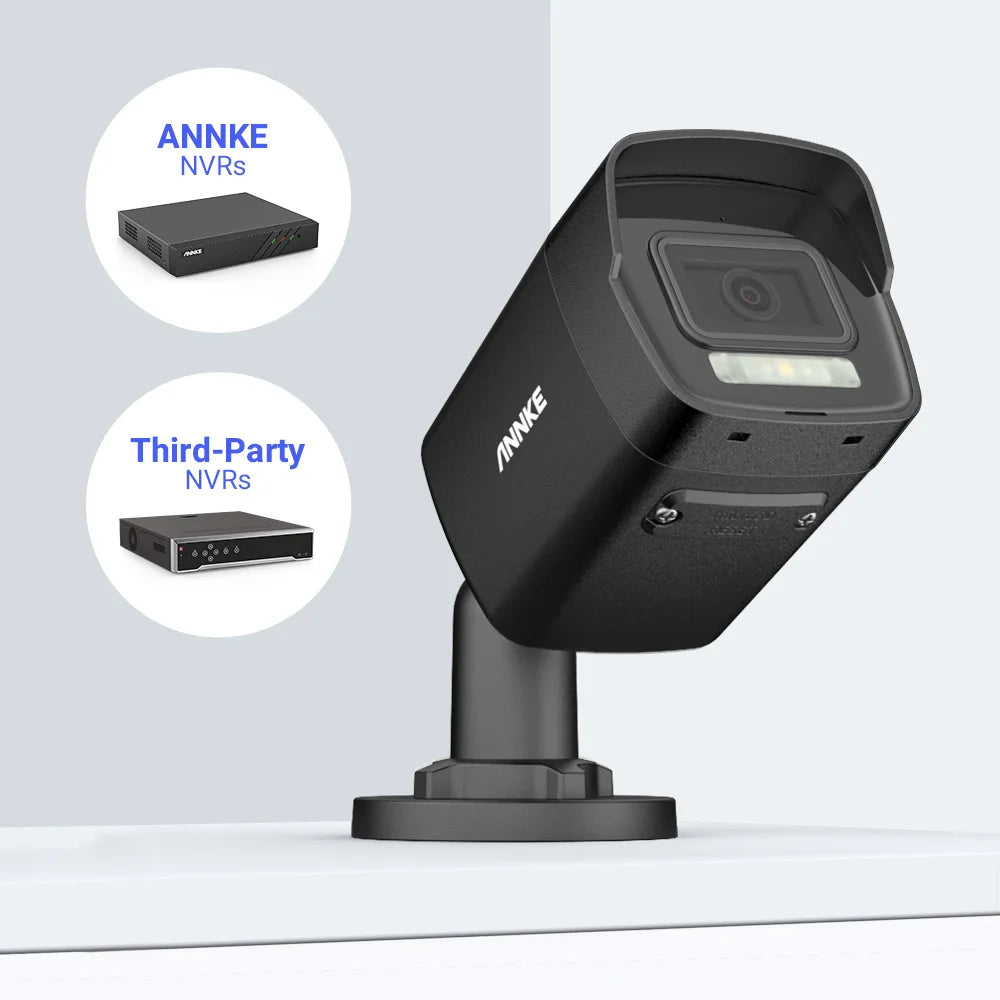

★ 3K IR Network Camera with 16:9 image scale
★ 2.8mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Smart Dual-Light: advanced technology with long range
★ Clear day and night vision with 3D DNR and 120DB WDR

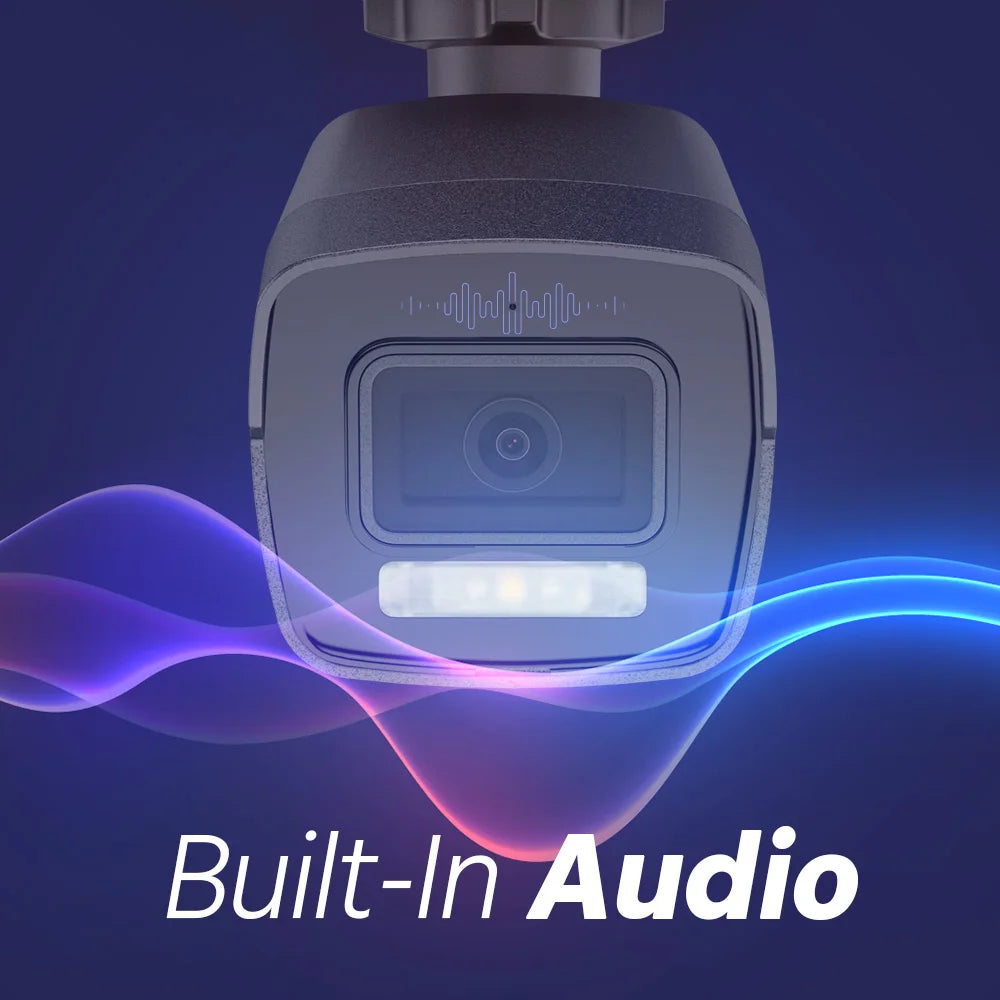

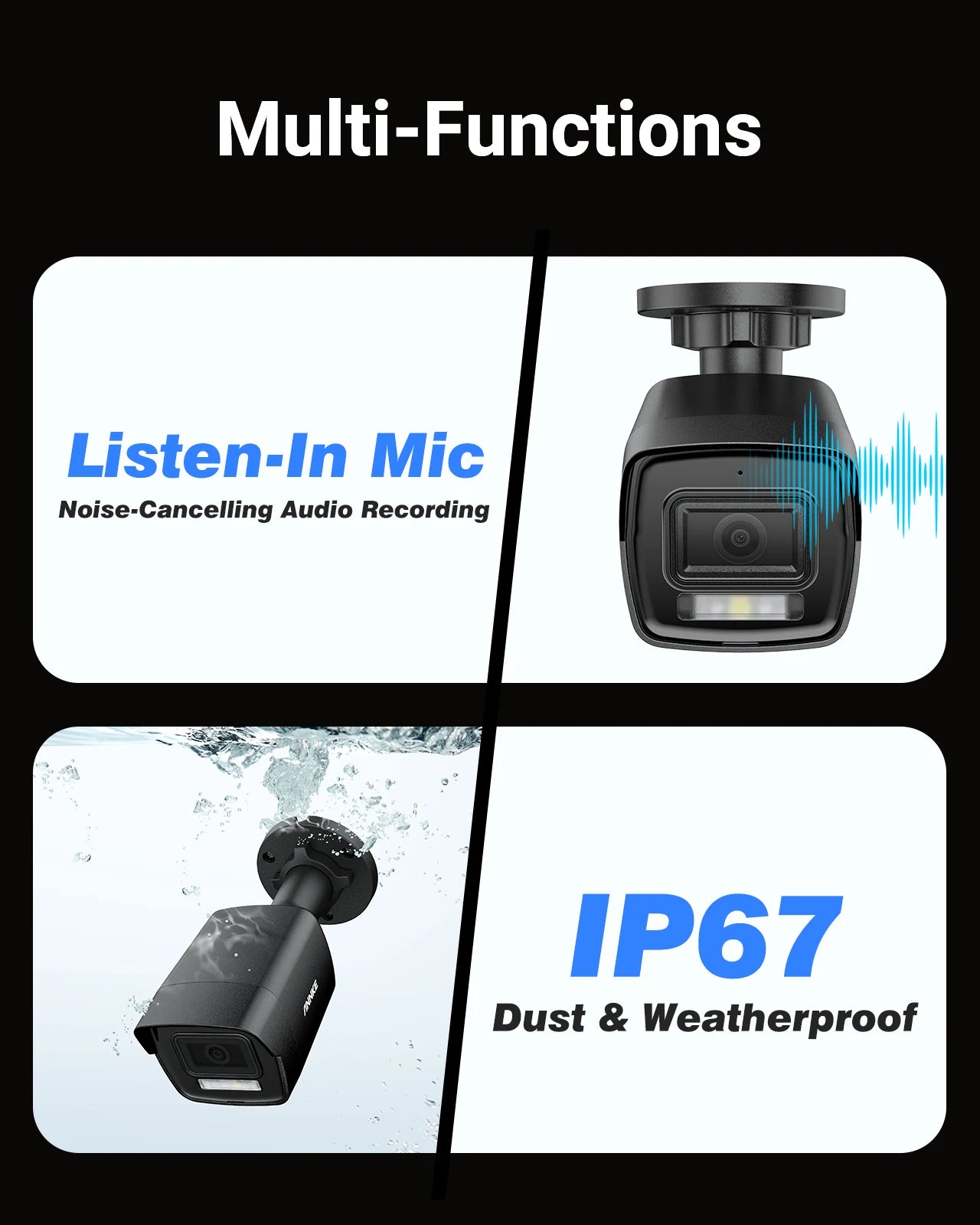

★ Built-in microphone for real-time audio security
★ Support on-board storage up to 256 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
If you choose 2pcs camera, it will be shipped without wires
|
IP Camera |
||
|
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
|
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
|
Main Stream |
50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) |
|
|
Substream |
50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) |
|
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
|
Video Bitrate |
32 Kbps - 6 Mbps |
|
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
|
|
Audio Input |
Built-in Microphone, record with audio |
|
|
Lens |
2.8 mm |
|
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
|
Angle of View |
Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° |
|
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
|
Supplement Light Range |
IR: up to 30 m, wite Light: up to 20 m |
|
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
|
Wide Dynamic Range |
120 dB WDR |
|
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
|
|
API |
Open Network Video Interface Version 18.12 |
|
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
|
Privacy Mask |
4 programmable polygon privacy masks |
|
|
General Function |
Mirror,rotate,password protection, remote access |
|
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
|
General |
Housing |
Metal & Plastic |
|
Color |
White & Black |
|
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 256 GB |
|
|
Hardware Reset |
Yes |
|
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
|
Interface Protection |
IP67 |
|
|

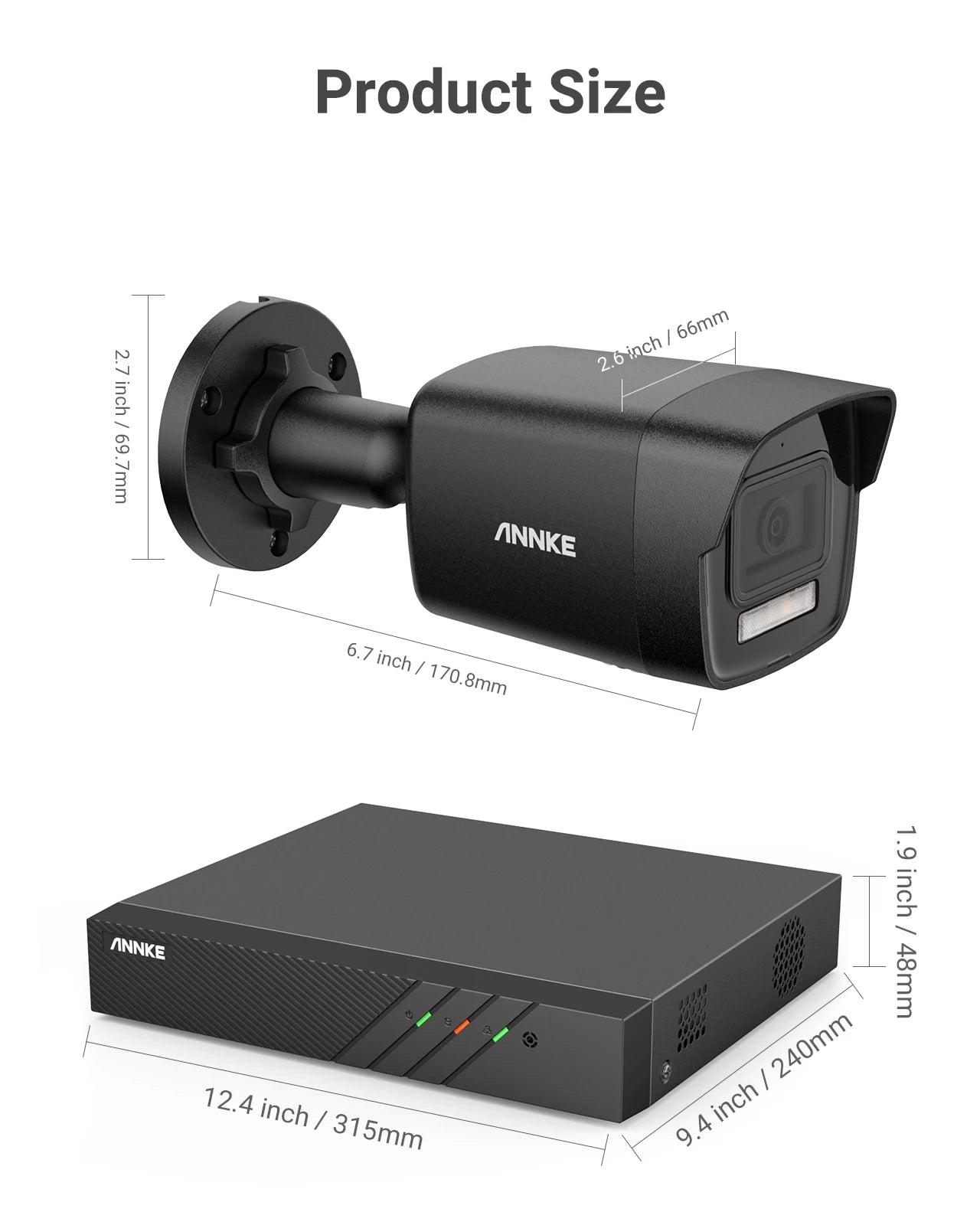

Dimension (L X W X H) |
170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
|
|
Weight |
0.6 lb./270 g |
|
