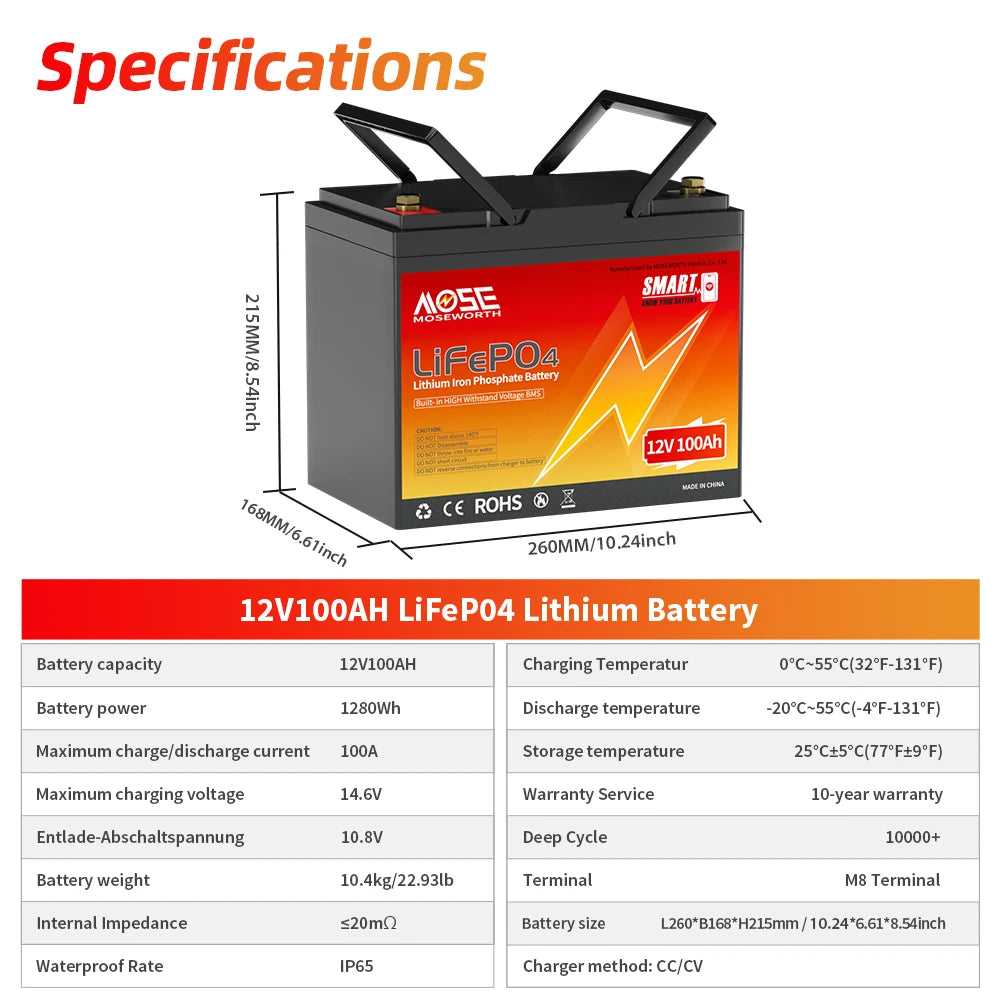

SPECIFICATIONS
Battery Average Life: 10 years
Battery Cell Composition: LiFePO4(Lithium iron phosphate)
Battery Specific: Deep Cycle
Battery Type: 12V Lithium iron phosphate(LiFePO4)
Brand Name: MOSEWORTH
Certificate: CE,ROHS,MSDS,UN38.3
Cycle Life: 7000 cycles
Item Height: 220
Item Length: 332
Item Type: Car Batteries
Item Weight: 10
Item Width: 174
Maximum charging current: 0.5C
Model: 12V 100Ah 140Ah 168Ah
Number Of Batteries: 1
Output Voltage: 1280Wh
SKU: M12100A332
Voltage: 12 V,12V 24V
|
Lithium Iron Phosphate Btattery
|
|
|

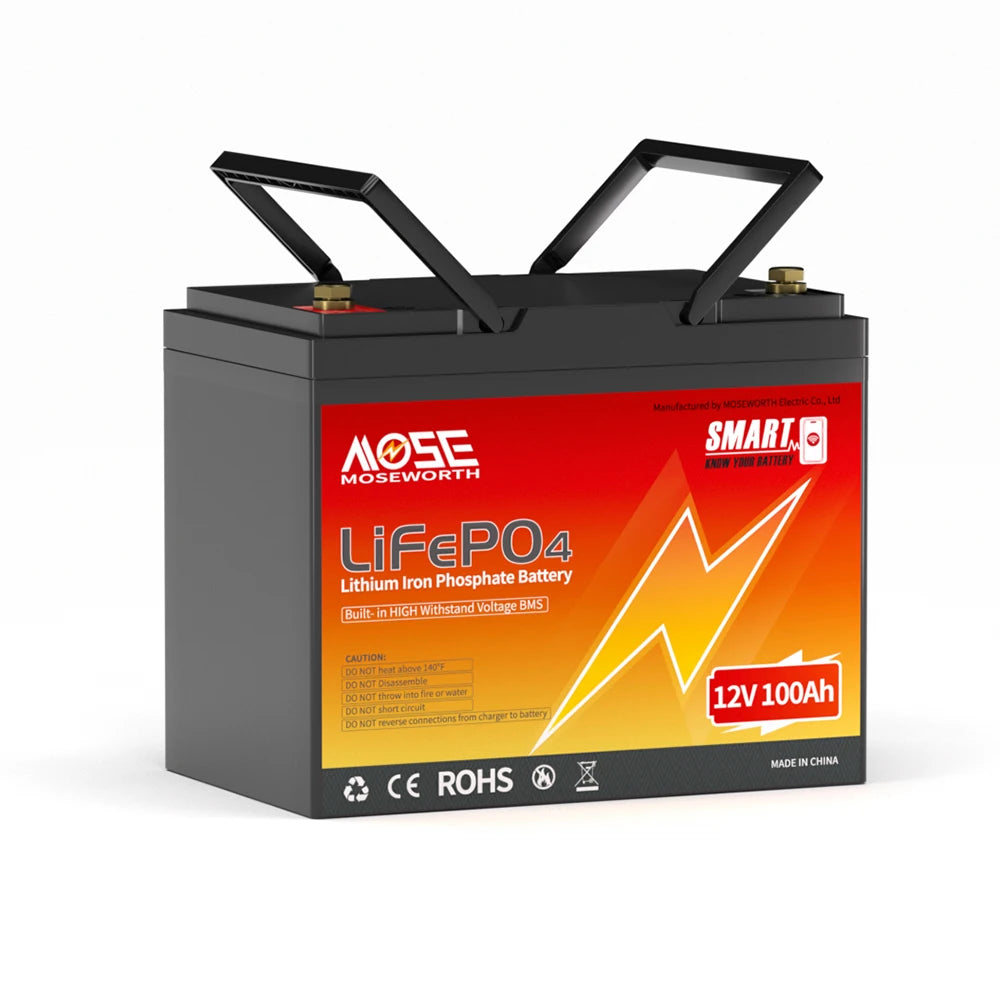

🔹12V 100Ah
|

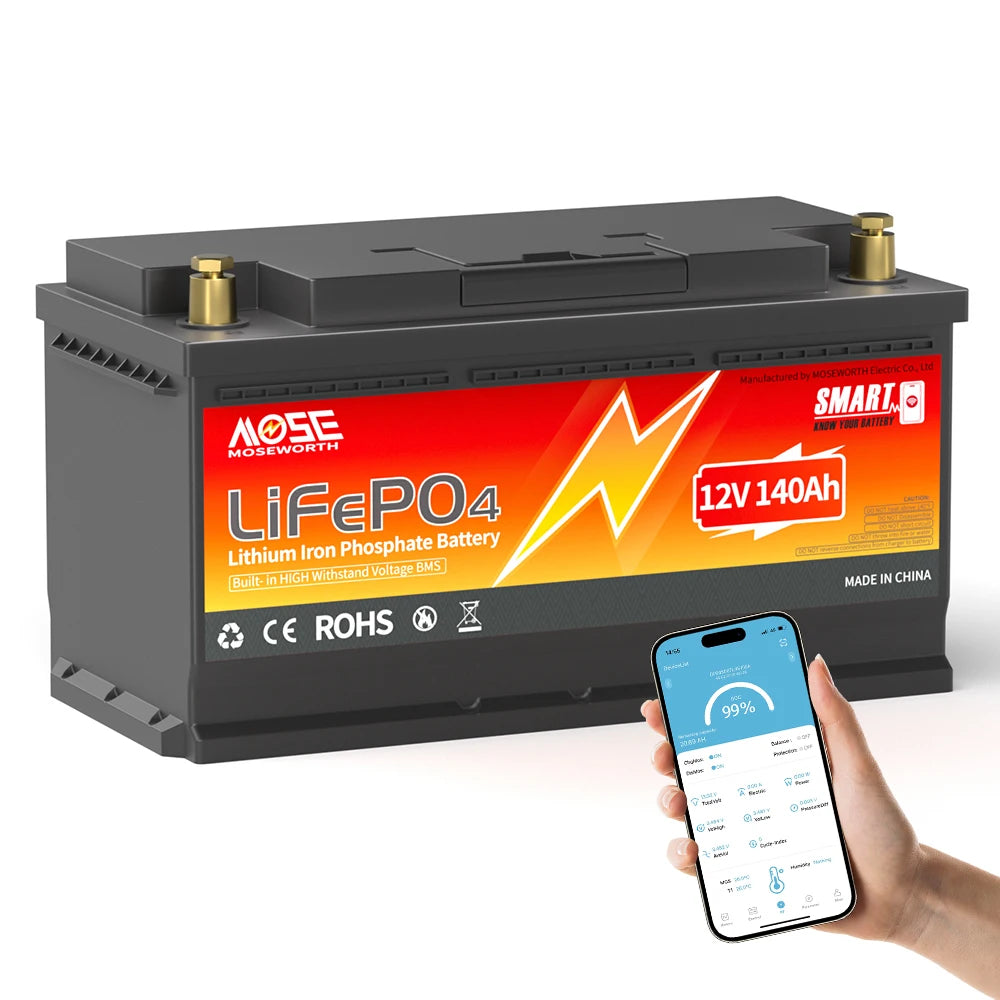

🔹12V 140Ah
|

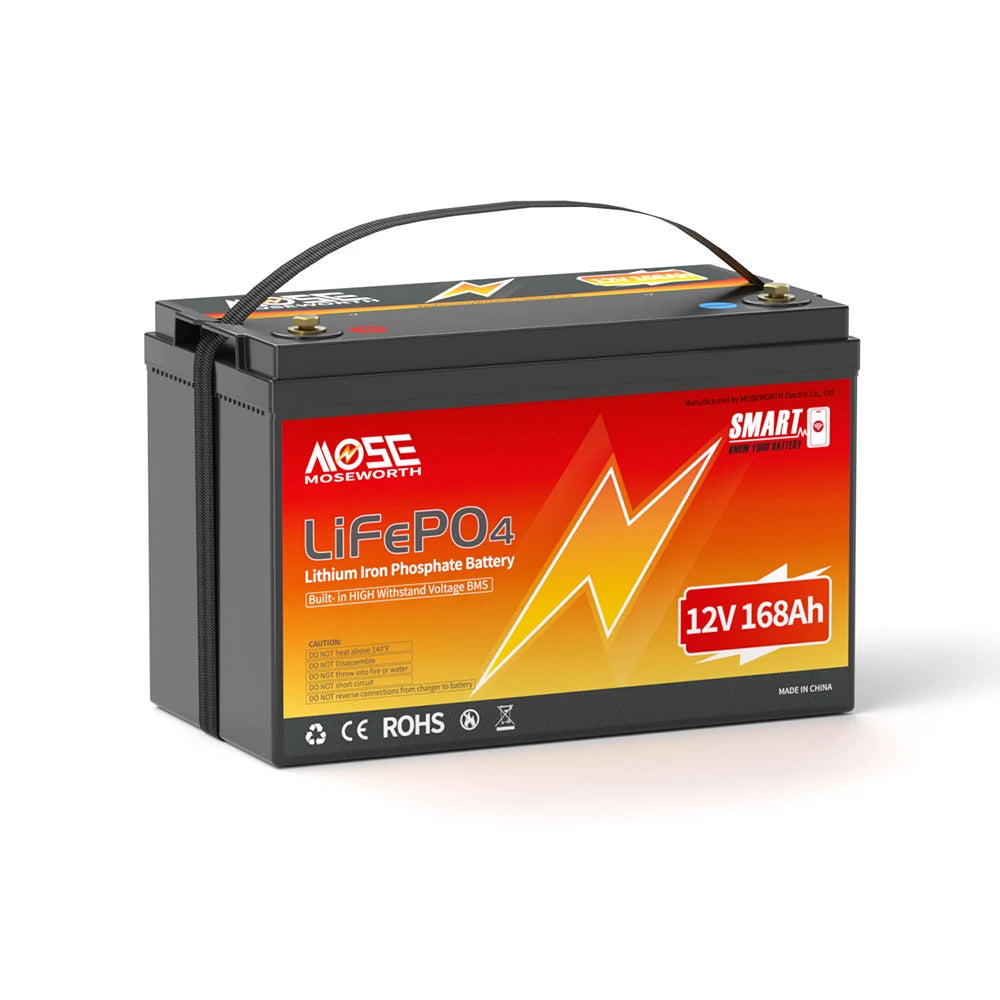

🔹12V 168Ah
|

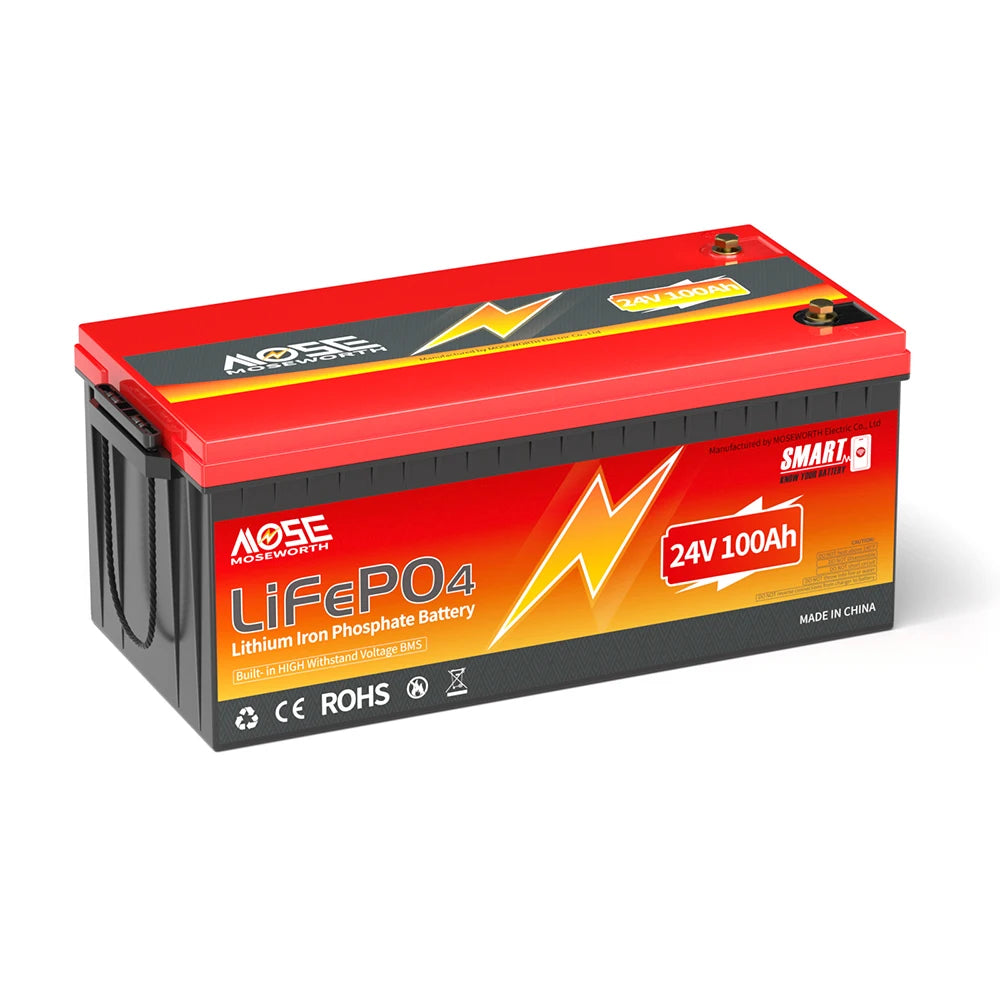

🔹24V 100Ah
|
|
Nominal voltage
|
12.8V
|
12.8V
|
12.8V
|
25.6V
|
|
Nominal capacity
|
100Ah
|
140Ah
|
168Ah
|
100Ah
|
|

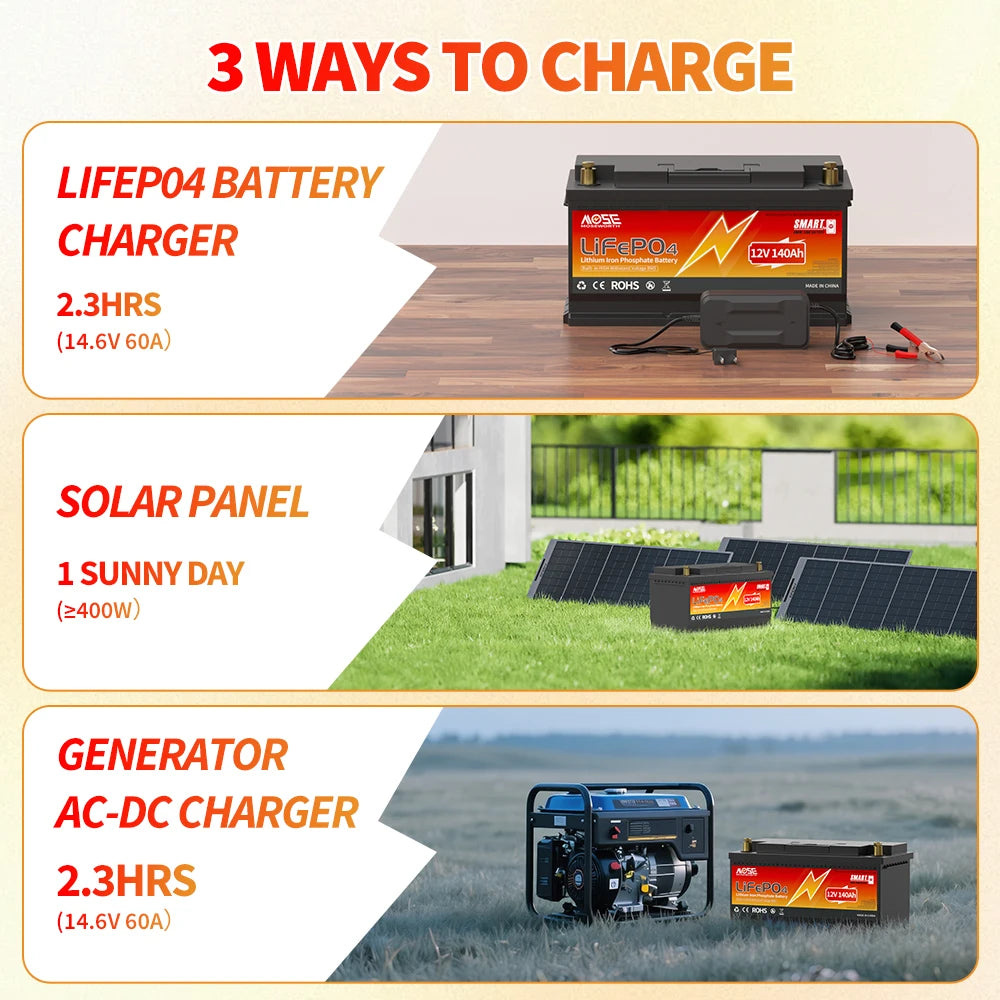

Charging voltage
|
14.2 - 14.6V
|
14.2 - 14.6V
|
14.2 - 14.6V
|
28.8-29.2V
|
|
Energy
|
1280W
|
1792Wh
|
2150Wh
|
2560Wh
|
|
Max. charging current
|
50A
|
50A
|
80A
|
100A
|
|
Recommended charging current
|
20A~50A
|
20A~50A
|
30A~80A
|
20A~50A
|
|
Max. Discharge current
|
100A(200A Peak in 3~5s)
|
140A(280A Peak in 3~5s)
|
168A(336A Peak in 3~5s)
|
100A(200A Peak in 3~5s)
|
|
End voltage
|
10V
|
10V
|
10V
|
20V
|
|
Deep Cycles
|
≥6000 times
|
≥6000 times
|
≥6000 times
|
≥6000 times
|
|
BMS
|
100A
|
100A
|
100A
|
100A
|
|

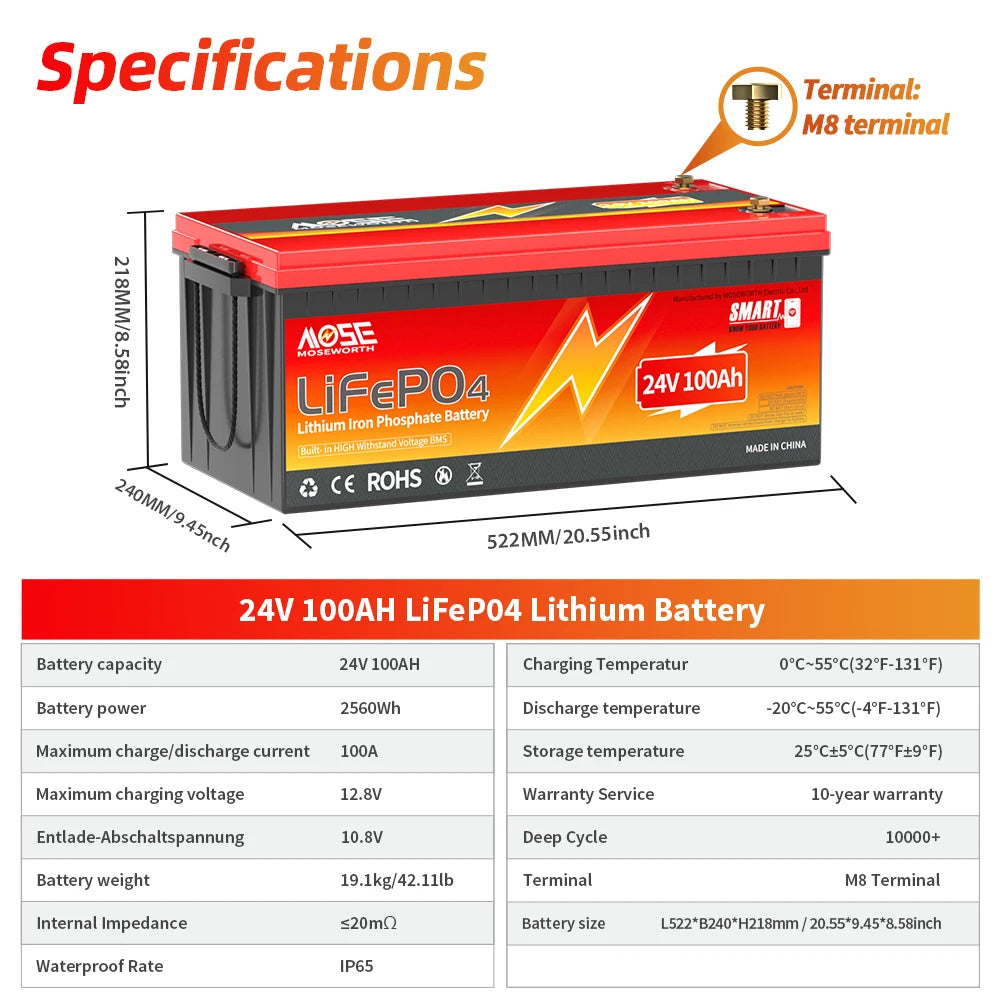

Dimensions(mm)
|
L260x W168x H215mm
|

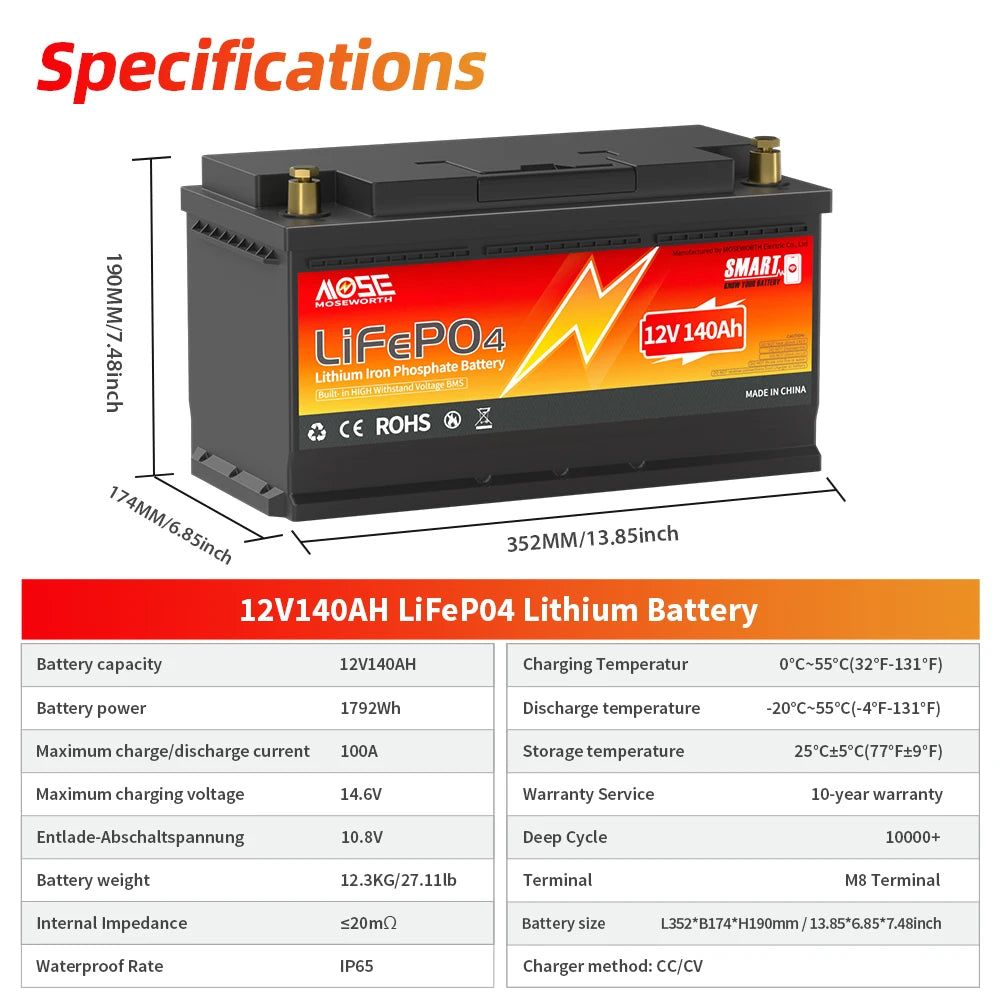

L352 x W174 x H190mm
|
L385x W190 x H245mm
|
L522x W240x H218mm
|
|
Number of cells
|
Grade A LiFePO4 Cells
|
|
Battery terminals
|
M8
|
|
Operating temperature
|

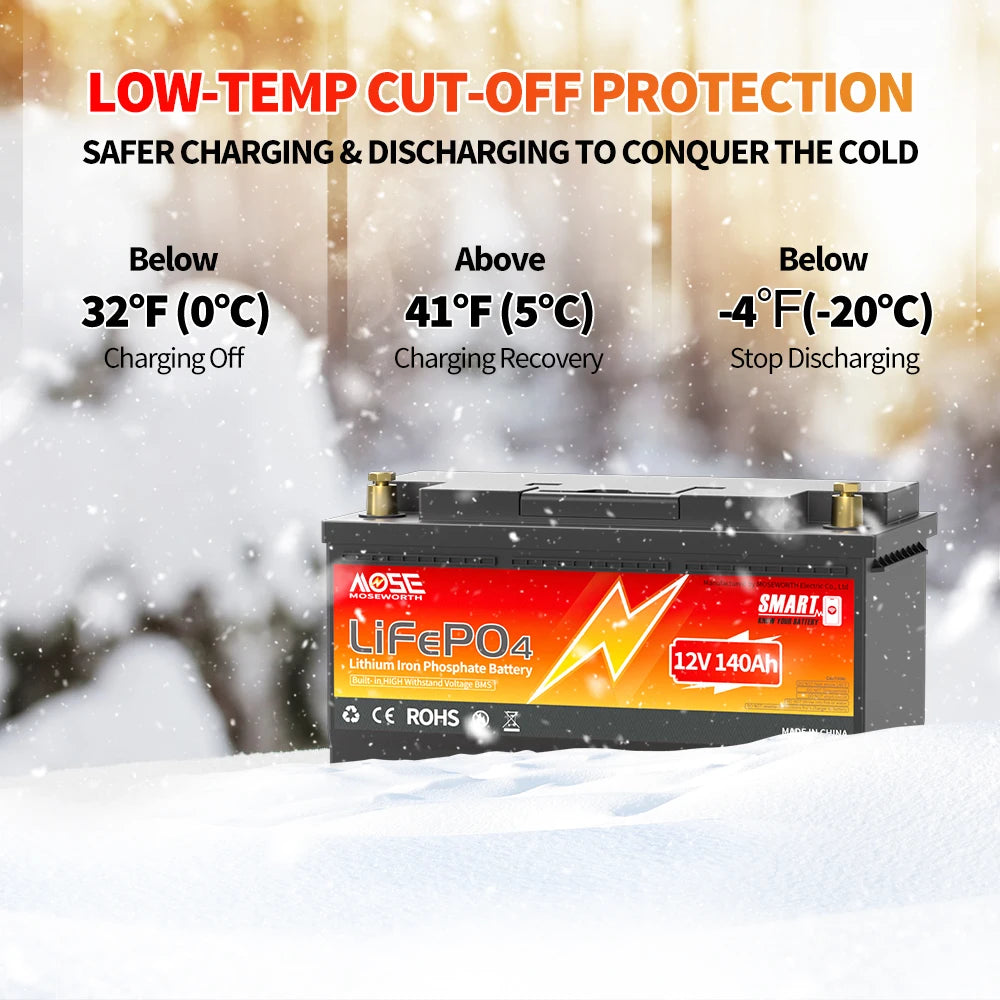

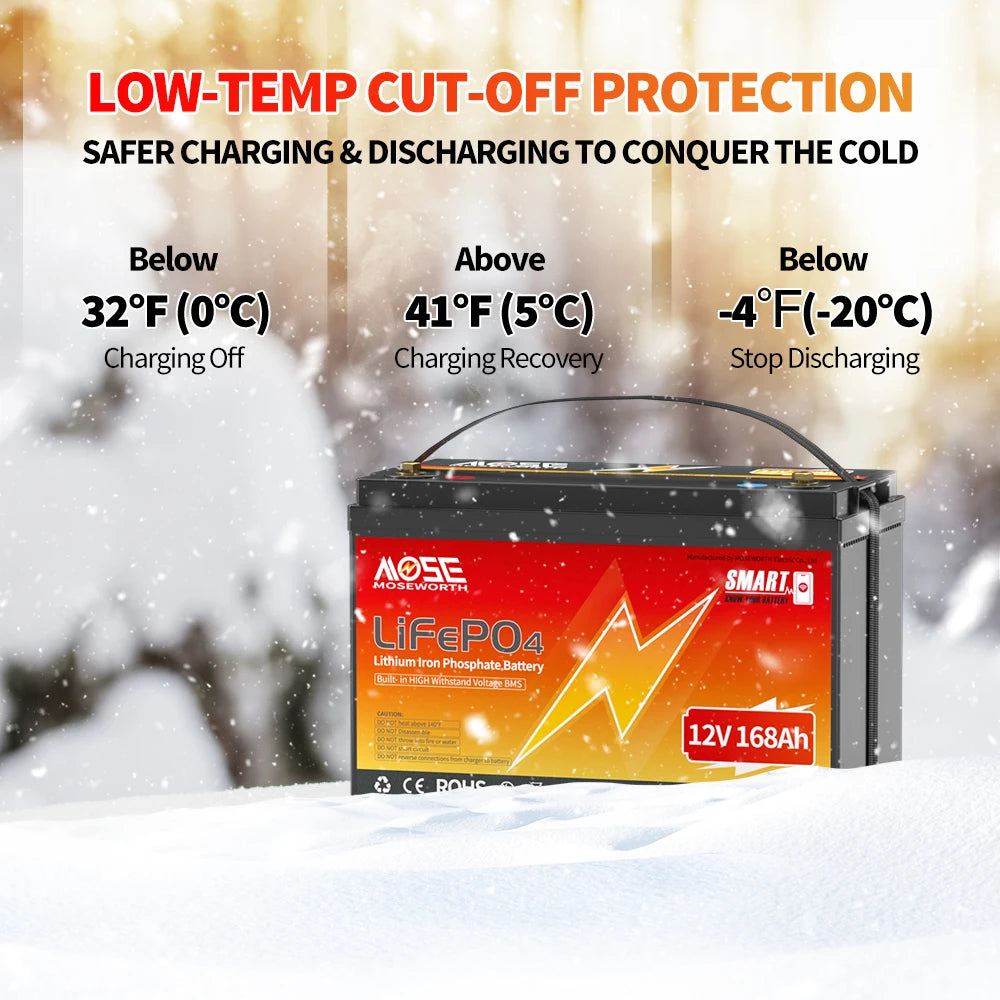

Charging:0℃ to 45℃; Discharging:-20℃ to 60℃; Storage: -10℃ to 50℃
|
|
Storage conditions
|
Store at ≥50% Capacity, Recharge Every 3 Months
|
|
Certificate
|
CE ROHS MSDS UN38.3
|
About this item:
Brand: MOSEWORTH
Capacity: 100Ah 140Ah 168Ah
Battery Cells:Lithium Iron Phosphate(LiFePO4) battery
Nominal voltage: 12.8V/25.6V
Rated voltage: 12V/24V
Max Protection Voltage: 14.6V/29.2V
End Voltage: 10V/20V
Certificate: CE ROHS MSDS UN38.3
Upgrade Parts/Accessories: Grade A

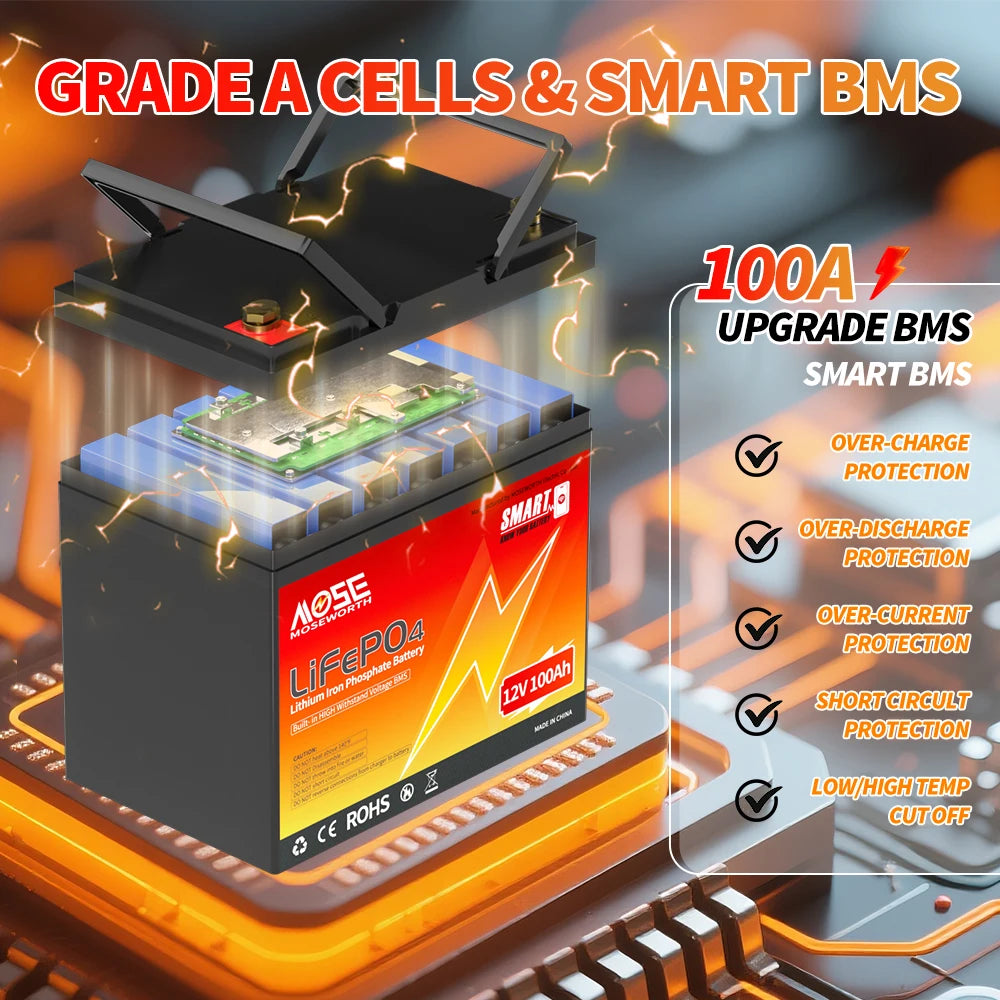

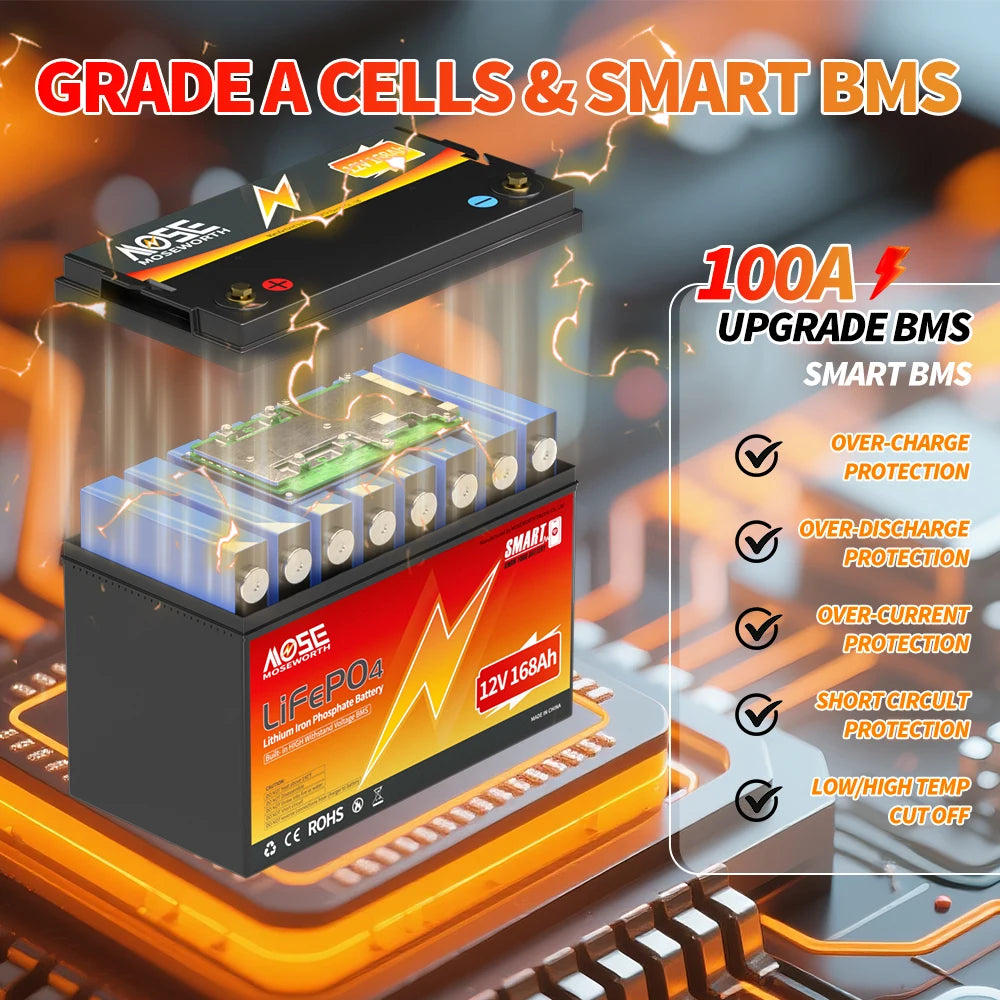

Voltage Protection Board(BMS): Yes
Cycles Life: 7000+ Cycles
Max Charge Current: 0.5C
Max Continuous Current: 1C
Instantaneous discharge current: 2C
Working temperature : -20 ~ 60 ℃
Charge temperature: 0-45℃
Terminal: Button terminal(can be charged and discharged)
Warranty: 2 years
Operating temperatures: Standard 0°C~45°C(32°F~113°F), Discharge -20°C~65°C(-4°F~149°F),Storage -20°C~45°C(-4°F~113°F)
Parcel includes：
1. A LiFePO4 Energy Storage Battery
2. A product instruction manual
